Product Model

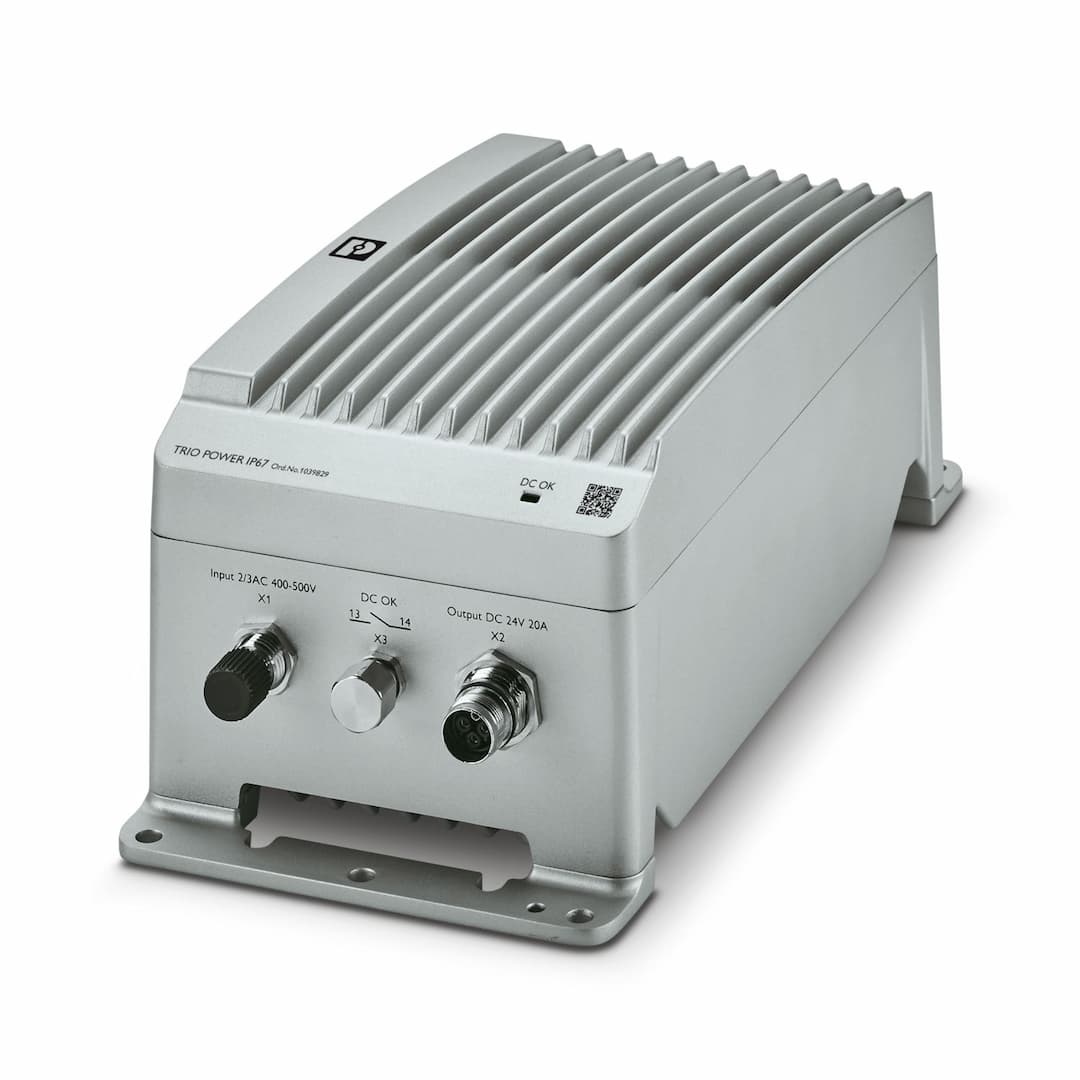

TRIO-PS-IP67/3AC/24DC/20
Key Features
- 1High efficiency of > 93% reduces power losses.
- 2Robust die-cast aluminum housing ensures high system availability.
- 3Reliable startup of high loads with dynamic boost.
- 4IP67 protection against extreme environmental conditions.
- 5Compact dimensions (151 mm x 304 mm x 120 mm) for space-saving installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Network type | Star network | Nominal input voltage range | 3x 400 V AC ... 500 V AC
2x 400 V AC ... 500 V AC |
| Input voltage range | 3x 400 V AC ... 500 V AC -20 % ... +15 %
2x 400 V AC ... 500 V AC -10 % ... +15 % | Input voltage range AC | 3x 320 V AC ... 575 V AC |
| Typical national grid voltage | 3x 400 V AC
3x 480 V AC | Voltage type of supply voltage | AC |
| Inrush current | typ. 22 A (at 25 °C) | Inrush current integral (I | 0.5 A |
| Inrush current limitation | ≤ 22 A (at 25 °C) | AC frequency range | 50 Hz ... 60 Hz |
| Mains buffering time | typ. 10 ms (400 V AC)
typ. 20 ms (500 V AC) | Current consumption | 3x 1.2 A (400 V AC)
3x 1 A (500 V AC)
2x 2.3 A (400 V AC)
2x 1.9 A (500 V AC) |
| Nominal power consumption | 39 W | Protective circuit | Transient surge protection; Varistor |
| Typical response time | < 1 s | Input fuse | 3.15 A (internal (device protection), slow-blow) |
| Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) | Discharge current to PE | < 3.5 mA
< (550 V AC, 60 Hz) |
| Voltage type of supply voltage | AC | Mains buffering time | > 15 ms (230 V AC) |
| Current consumption | 4.9 A (110 V DC)
2.1 A (250 V DC) | Efficiency | 93 % (400 V AC)
93 % (500 V AC) |
| Nominal output voltage | 24 V DC ±1 % | Nominal output current (I | 20 A |
| Dynamic Boost (I | 30 A (5 s) | Derating | > 60 °C ... 70 °C (2.5 %/K) |
| Protection against overvoltage at the output (OVP) | ≤ 30 V DC | Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (Dynamic load change 10 % ... 90 %, 10 Hz)
< 0.1 % (change in input voltage ±10 %) |
| Residual ripple | ≤ 20 mV | Short-circuit-proof | yes |
| Output power | 480 W
720 W | Maximum no-load power dissipation | < 2 W (400 V AC)
< 2.5 W (480 V AC) |
| Power loss nominal load max. | < 44 W (400 V AC)
< 44 W (480 V AC) | Rise time | ≤ 120 ms (U |
| Maximum switching voltage | 30 V AC/DC | Continuous load current | 100 mA |
| Default | closed | Digital | 30 V AC 30 V DC 100 mA |
| Connection method | M12 circular connector | Coding | S |
| Type of locking | M12 screw locking | Number of positions | 4 |
| Connection method | M17 circular connector | Coding | N |
| Type of locking | M17 standard and SPEEDCON locking | Number of positions | 4 |
| Connection method | Circular connector | Coding | A |
| Type of locking | SPEEDCON M12 | Number of positions | 5 |
| Types of signaling | LED
Floating signal contact | Signalization designation | DC OK |
| Status display | LED | Color | green |
| DC OK | U | Number of phases | 3.00 |
| Insulation voltage input/output | 4 kV AC (type test)
1.5 kV AC (routine test) | Product type | Power supply |
| Product family | TRIO POWER | MTBF (IEC 61709, SN 29500) | > 1500000 h (25 °C)
> 620000 h (40 °C)
> 230000 h (60 °C) |
| Article revision | 02 | Protection class | I |
| Pollution degree | 2 (IEC 61010-1) | Width | 151 mm |
| Height | 304 mm | Depth | 120 mm |
| Diameter | 5.6 mm | Installation distance right/left | 20 mm / 20 mm |
| Installation distance top/bottom | 50 mm / 100 mm | Mounting type | Wall mounting |
| Assembly note | Alignable: 20 mm horizontally, 50 mm vertically above, 100 mm vertically below | With protective coating | no |
| Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Metal |
| Type of housing | Aluminum (AlMg3) | Degree of protection | IP67 |
| Ambient temperature (operation) | -25 °C ... 85 °C (Derating > 60 °C (3 AC): 2,5 %/K / > 50 °C (2 AC): 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | ≤ 4000 m (> 2000 m, Derating: 10 %/1000 m) |
| Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | in each space direction (in acc. with EN 60068-2-6) |
| Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | IEC 61010-2-201 (SELV) |
| Standard – Safety extra-low voltage | EN 60204-1 (PELV) | Standard - Safe isolation | DIN VDE 0100-410 |
| EN 61010-1 | III (≤ 2000 m)
II (≤ 4000 m) | SIL in accordance with IEC 61508 | 0 |
| Performance level according to ISO 13849 | without | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) |
| Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial) | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
| Noise emission | EN 55011 (EN 55022) | Noise emission | EN 55016
EN 61000-6-3 (Class B) |
| Frequency range | Class A | Standards/regulations | EN 61000-3-3 |
| Frequency range | 0 kHz ... 2 kHz | Standards/regulations | EN 61000-4-2 |
| Contact discharge | 6 kV (Test Level 4) | Discharge in air | 8 kV (Test Level 4) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 1 GHz | Test field strength | 10 V/m (Test Level 3) |
| Frequency range | 1 GHz ... 2 GHz | Test field strength | 10 V/m (Test Level 3) |
| Frequency range | 2 GHz ... 3 GHz | Test field strength | 10 V/m (Test Level 3) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
| Input | 4 kV (Test Level 4 - asymmetrical) | Output | 2 kV (Test Level 3 - asymmetrical) |
| Signal | 1 kV (Test Level 2 - asymmetrical) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-5 | Input | 1 kV (Test Level 1 - symmetrical)
2 kV (Test Level 1 - asymmetrical) |
| Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) | Signal | 1 kV (Test Level 2 - asymmetrical) |
| Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
| Input/Output | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
| Comments | Criterion A | Voltage | 10 V (Test Level 3) |
| Standards/regulations | EN 61000-4-11 | Voltage | 400 V AC |
| Frequency | 50 Hz | Voltage dip | 70 % |
| Number of periods | 25 periods | Additional text | Test Level 2 |
| Comments | Criterion A | Voltage dip | 40 % |
| Number of periods | 10 periods | Additional text | Test Level 2 |
| Comments | Criterion A | Voltage dip | 0 % |
| Number of periods | 1 period | Additional text | Test Level 2 |
| Comments | Criterion A | Standards/regulations | EN 61000-6-3 |
| Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
| Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
