Product Model

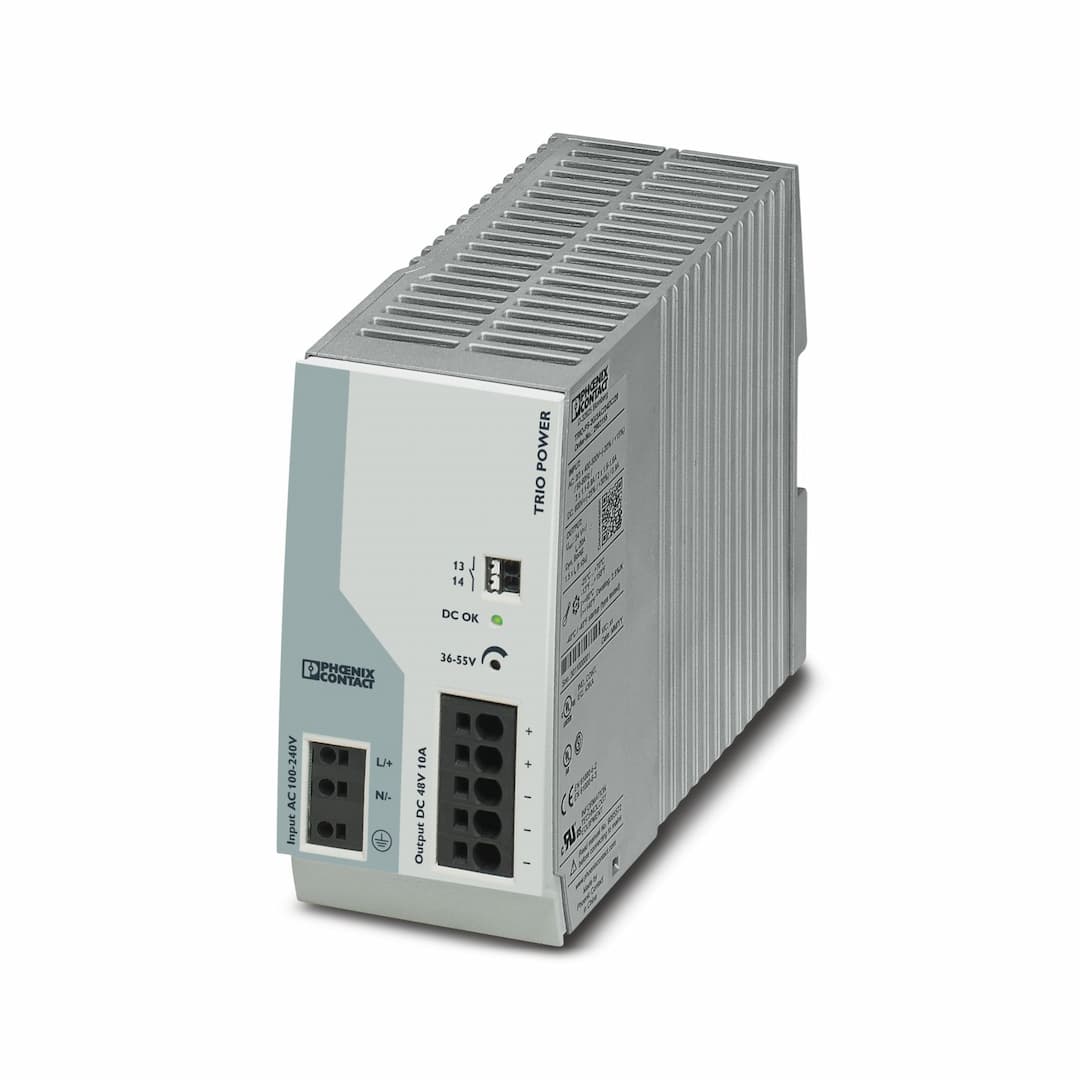

TRIO-PS-2G/1AC/48DC/10
Key Features
- 1High-efficiency power supply with >93% efficiency at 230V AC.
- 2Output voltage: 48V DC ±1%, with a setting range of 36V DC to 55V DC.
- 3Nominal output current: 10A, with dynamic boost up to 15A for 5 seconds.
- 4Tool-free fast connection technology for easy installation.
- 5DIN rail mountable for compact and secure placement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Network type | Star network | Nominal input voltage range | 100 V AC ... 240 V AC |
| Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % | Electric strength, max. | ≤ 300 V AC 15 s |
| Typical national grid voltage | 120 V AC
230 V AC | Voltage type of supply voltage | AC/DC |
| Inrush current | 20 A (at 25 °C) | Inrush current integral (I | < 0.7 A |
| Inrush current limitation | typ. 20 A (after 1 ms) | AC frequency range | 50 Hz ... 60 Hz ±10 % |
| Mains buffering time | typ. 10 ms (120 V AC)
typ. 15 ms (230 V AC) | Current consumption | 5.6 A (100 V AC)
5.4 A (120 V AC)
2.6 A (230 V AC)
2.4 A (240 V AC) |
| Nominal power consumption | 604.7 VA | Protective circuit | Transient surge protection; Varistor |
| Power factor (cos phi) | 0.85 | Typical response time | < 1 s |
| Input fuse | 10 A (internal (device protection)) | Recommended breaker for input protection | 10 A ... 16 A (Characteristics B, C, D, K) |
| Discharge current to PE | < 3.5 mA | Nominal input voltage range | 110 V DC ... 250 V DC |
| Input voltage range | 99 V DC ... 275 V DC | Switch-on voltage | ≥ 93 V DC |
| Shut-down voltage | < 85 V DC | Voltage type of supply voltage | AC/DC |
| Mains buffering time | > 20 ms (230 V AC) | Current consumption | 5 A (110 V DC)
2.2 A (250 V DC) |
| Efficiency | > 93 % (for 230 V AC and nominal values) | Output characteristic | U/I with dynamic load reserve |
| Nominal output voltage | 48 V DC ±1 % | Setting range of the output voltage (U | 36 V DC ... 55 V DC (> 48 V DC, constant capacity restricted) |
| Nominal output current (I | 10 A | Dynamic Boost (I | 15 A (5 s) |
| Derating | > 60 °C ... 70 °C (2.5 %/K) | Feedback voltage resistance | ≤ 60 V DC |
| Protection against overvoltage at the output (OVP) | ≤ 60 V DC | Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (Dynamic load change 10 % ... 90 %, 10 Hz)
< 0.1 % (change in input voltage ±10 %) |
| Residual ripple | < 50 mV | Short-circuit-proof | yes |
| No-load proof | yes | Output power | 480 W
720 W |
| Peak switching voltages nominal load | < 1000 mV | Maximum no-load power dissipation | < 5.7 W (230 V) |
| Power loss nominal load max. | < 44 W | Rise time | ≤ 30 ms (U |
| Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
| Maximum switching voltage | 30 V AC/DC | Continuous load current | 100 mA |
| Connection method | Push-in connection | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 4 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 | Stripping length | 10 mm |
| Connection method | Push-in connection | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 10 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 6 mm² | Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 8 | Stripping length | 15 mm |
| Connection method | Push-in connection | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 1.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² | Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 | Stripping length | 8 mm |
| Types of signaling | LED
Floating signal contact | Signalization designation | DC OK |
| Status display | “DC OK” LED | Color | green |
| Number of phases | 1.00 | Insulation voltage input/output | 3 kV AC
1.5 kV AC |
| Product type | Power supply | Product family | TRIO POWER |
| MTBF (IEC 61709, SN 29500) | > 1800000 h (25 °C)
> 800000 h (40 °C)
> 480000 h (60 °C) | Article revision | 05 |
| Protection class | I (in closed control cabinet) | Degree of pollution | 2 |
| Width | 68 mm | Height | 130 mm |
| Depth | 160 mm | Installation distance right/left | 0 mm / 0 mm |
| Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
| Assembly note | alignable: horizontally 0 mm (≤ 40 °C) 10 mm (≤ 70 °C), vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
| With protective coating | no | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
| Housing material | Metal | Type of housing | Aluminum (AlMg3) |
| Hood version | Polycarbonate | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | ≤ 5000 m (> 2000 m, Derating: 10 %/1000 m) |
| Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 4g, 90 min. |
| Rail applications | EN 50121-4 | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
| Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | IEC 62368-1 (SELV) |
| Standard – Safety extra-low voltage | IEC 60950-1 (SELV) and EN 60204-1 (PELV) | Standard - Safe isolation | DIN VDE 0100-410 |
| Standard - Safety of transformers | EN 61558-2-16 (air clearances and creepage distances only) | UL approvals | UL Listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) |
| SIL in accordance with IEC 61508 | 0 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
| EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Noise emission | EN 55011 (EN 55022) |
| Standards/regulations | EN 61000-4-2 | Contact discharge | 6 kV (Test Level 4) |
| Discharge in air | 8 kV (Test Level 4) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
| Test field strength | 10 V/m (Test Level 3) | Frequency range | 1 GHz ... 2 GHz |
| Test field strength | 10 V/m (Test Level 3) | Frequency range | 2 GHz ... 3 GHz |
| Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical) |
| Output | 2 kV (Test Level 3 - asymmetrical) | Signal | 1 kV (Test Level 2 - asymmetrical) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
| Input | 1 kV (Test Level 1 - symmetrical)
2 kV (Test Level 1 - asymmetrical) | Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
| Signal | 0.5 kV (Test Level 2 - asymmetrical) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
| Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
| Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-6-3 |
| Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
| Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
