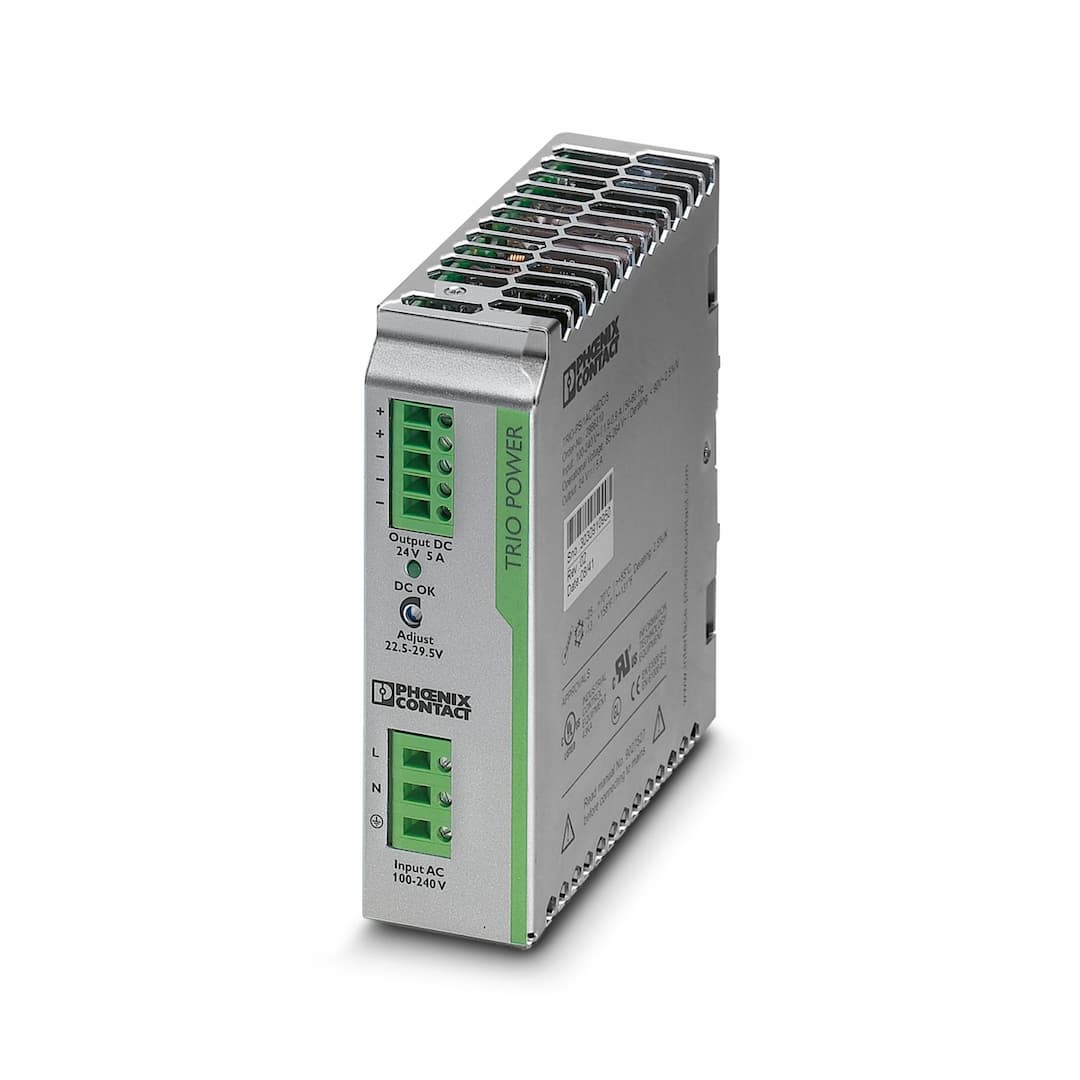

Product Model
TRIO-PS/1AC/24DC/ 5
Key Features
- 1Operates on 100-240 V AC, ensuring flexibility in various environments.
- 2Offers a mean time between failures of over 500,000 hours, ensuring long-term reliability.
- 3Conveniently mounts on DIN rails, ideal for series production in mechanical engineering.
- 4Achieves an efficiency of >89%, minimizing energy waste and reducing costs.
- 5Includes smart diagnostics with multicolor LEDs and a collective alarm contact for easy monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC (Derating < 90 V AC: 2,5 %/V) |
| Derating | < 90 V AC (2.5 %/V) | Input voltage range AC | 85 V AC ... 264 V AC (Derating < 90 V AC: 2,5 %/V) |
| Electric strength, max. | 300 V AC | Voltage type of supply voltage | AC |
| Inrush current | < 15 A | Inrush current integral (I | 1.1 A |
| AC frequency range | 45 Hz ... 65 Hz | Mains buffering time | > 20 ms (120 V AC)
> 110 ms (230 V AC) |
| Current consumption | 1.65 A (120 V AC)
0.9 A (230 V AC) | Nominal power consumption | 189 VA |
| Protective circuit | Transient surge protection; Varistor | Power factor (cos phi) | 0.72 |
| Typical response time | < 1 s | Input fuse | 3.15 A (slow-blow, internal) |
| Permissible backup fuse | B6 B10 B16 | Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) |
| Discharge current to PE | < 3.5 mA | Efficiency | 89 % (for 230 V AC and nominal values) |
| Output characteristic | U/I | Nominal output voltage | 24 V DC ±1 % |
| Setting range of the output voltage (U | 22.5 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted) | Nominal output current (I | 5 A (U |
| Derating | 55 °C ... 70 °C (2.5 %/K) | Feedback voltage resistance | 35 V DC |
| Protection against overvoltage at the output (OVP) | < 35 V DC | Max. capacitive load | unlimited |
| Active current limitation | approx. 10 A (for short-circuit) | Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) |
| Residual ripple | < 20 mV | Output power | 120 W |
| Peak switching voltages nominal load | < 30 mV | Maximum no-load power dissipation | 1.1 W |
| Power loss nominal load max. | 18 W | Rise time | < 2 ms (U |
| Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
| Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 | Stripping length | 9 mm |
| Screw thread | M2,5 | Tightening torque, min | 0.4 Nm |
| Tightening torque max | 0.5 Nm | Connection method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
| Stripping length | 9 mm | Screw thread | M2,5 |
| Tightening torque, min | 0.4 Nm | Tightening torque max | 0.5 Nm |
| Types of signaling | LED | Operating voltage display | Green LED |
| Status display | "DC OK" LED green | Note on status display | U |
| Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) | Insulation voltage output / PE | 500 V DC (type test) |
| Insulation voltage input / PE | 2 kV AC (type test)
2 kV AC (routine test) | Product type | Power supply |
| Product family | TRIO POWER | MTBF (IEC 61709, SN 29500) | > 2031000 h |
| Article revision | 04 | Protection class | I (with PE connection) |
| Overvoltage category | III | Degree of pollution | 2 |
| Width | 40 mm | Height | 130 mm |
| Depth | 115 mm | Installation distance right/left | 0 mm / 0 mm |
| Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
| Assembly note | alignable: horizontally 0 mm, vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
| With protective coating | no | Housing material | Metal |
| Type of housing | Steel sheet, zinc-plated | Side element version | Aluminum |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 55° C derating : 2.5%/K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Climatic class | 3K3 (in acc. with EN 60721) |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 15g in all directions in acc. with IEC 60068-2-27 |
| Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
| Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) |
| Standard – Protection against shock currents, basic requirements for protective separation in electrical equipment | EN 50178 | Standard – Safety extra-low voltage | EN 60950-1 (SELV)
EN 60204 (PELV) |
| Standard - Safe isolation | DIN VDE 0100-410 | Shipbuilding approval | DNV GL (EMC A) |
| UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1 | SIL in accordance with IEC 61508 | 0 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
| Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
| Discharge in air | 8 kV (Test Level 3) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
| Test field strength | 10 V/m | Frequency range | 1 GHz ... 2 GHz |
| Test field strength | 10 V/m | Frequency range | 2 GHz ... 3 GHz |
| Test field strength | 10 V/m | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical) |
| Output | 4 kV (Test Level 4 - asymmetrical) | Signal | 2 kV (Test Level 3 - asymmetrical) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
| Input | 1 kV (Test Level 2 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
| Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
| Frequency range | 10 kHz ... 15 kHz
10 kHz ... 15 kHz | Comments | Criterion A
Criterion A |
| Voltage | 3 V (Test Level 2)
3 V (Test Level 2) | Frequency range | 10 kHz ... 15 kHz
10 kHz ... 15 kHz |
| Comments | Criterion A
Criterion A | Voltage | 3 V (Test Level 2)
3 V (Test Level 2) |
| Standards/regulations | EN 61000-4-11 | Standards/regulations | EN 61000-6-3 |
| Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Specifications may be subject to change without notice
