Product Model

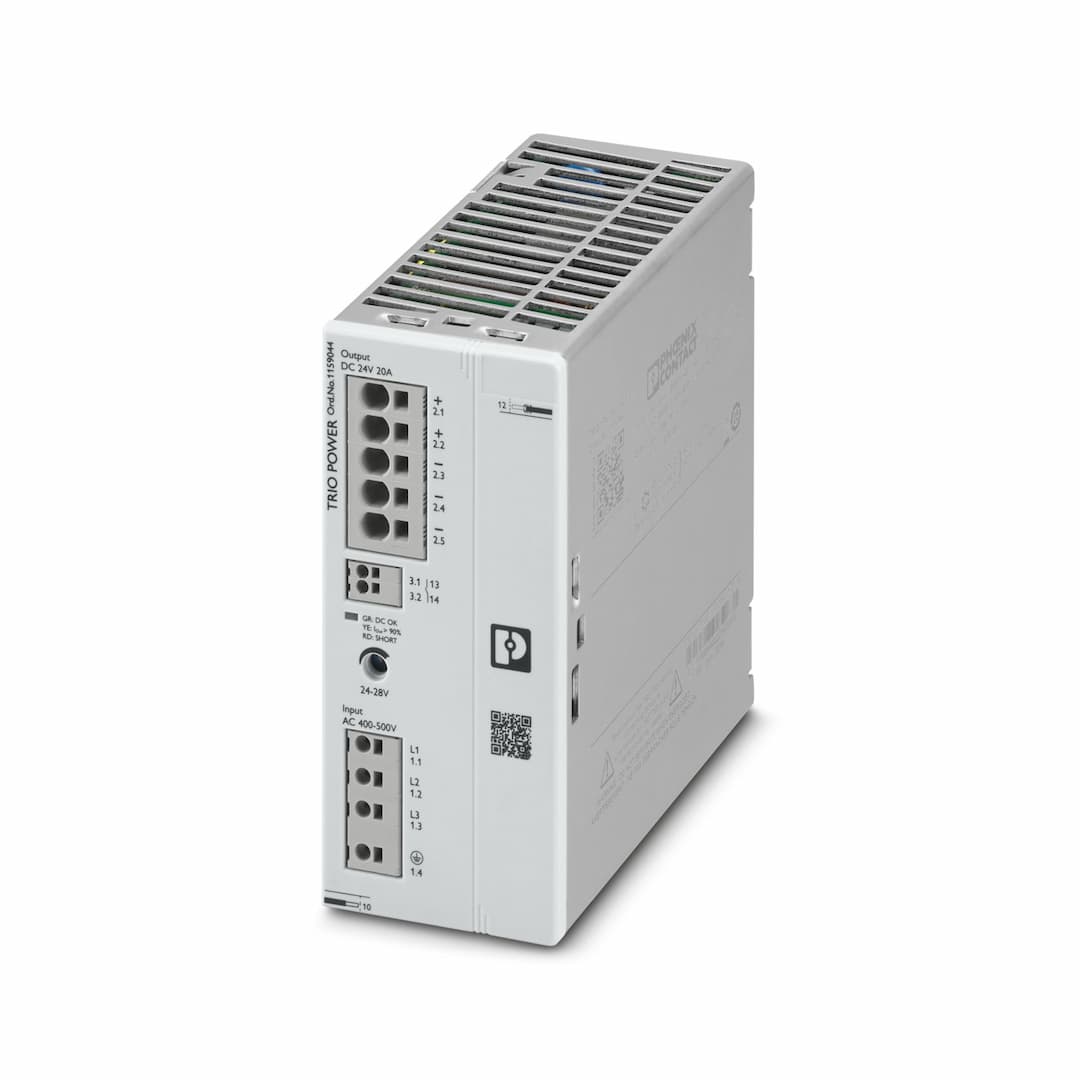

TRIO3-PS/3AC/24DC/20
Key Features
- 1Typ. 94.4% efficiency ensures optimal energy use.
- 2Nominal output voltage of 24 V DC with minimal residual ripple (typ. 15 mVPP).
- 3DIN rail mounting and IP20-rated enclosure for secure operation.
- 4Operates within a nominal input voltage range of 3x 400 V AC to 500 V AC.
- 5MTBF of over 500,000 hours and high insulation voltages (6 kV DC type test).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Supply system configuration | Star network (TN, TT, IT (PE)) | Nominal input voltage range | 3x 400 V AC ... 500 V AC |
| Input voltage range | 3x 400 V AC ... 500 V AC -20 % ... +10 %
2x 400 V AC ... 500 V AC ±10 % | Typical national grid voltage | 3x 400 V AC
3x 480 V AC |
| Voltage type of supply voltage | AC | Inrush current | < 13 A (25 °C) |
| Inrush current integral (I | < 0.33 A | Frequency range (f | 50 Hz ... 60 Hz ±10 % |
| Mains buffering time | typ. 28 ms (3x 400 V AC)
typ. 28 ms (3x 480 V AC) | Current consumption | 3x 0.77 A (3x 400 V AC)
3x 0.63 A (3x 500 V AC)
2x 1.37 A (2x 400 V AC)
2x 1.13 A (2x 500 V AC) |
| Protective circuit | Transient protection; Varistor | Power factor (cos phi) | 0.93 (3x 480 V AC) |
| Device mains fuse | 3.15 A internal (device protection) | Recommended breaker for input protection | 3x 6 A ... 16 A (Characteristic B, C, D, K or comparable) |
| Discharge current to PE | < 3.5 mA | Efficiency | typ. 94.4 % (3x 400 V AC)
typ. 94.5 % (3x 480 V AC) |
| Nominal output voltage | 24 V DC | Setting range of the output voltage (U | 24 V DC ... 28 V DC (> 24 V DC, constant capacity restricted) |
| Nominal output current (I | 20 A | Dynamic Boost (I | max. 30 A (5 s) |
| Short-circuit-proof | yes | No-load proof | yes |
| Derating | 60 °C ... 70 °C | Crest factor | typ. 1.51 (3x 400 V AC)
typ. 1.69 (3x 480 V AC) |
| Output power (P | 480 W | Output power (P | max. 720 W (5 s) |
| Connection in parallel | yes, for increasing power and redundancy with diode | Connection in series | yes, for increased output voltage (observe SELV limit) |
| Feedback voltage resistance | ≤ 35 V DC | Protection against overvoltage at the output (OVP) | ≤ 35 V DC |
| Residual ripple | typ. 15 mV | Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) |
| Rise time | ≤ 1 s (U | Minimum no-load power dissipation | < 3 W (3x 400 V AC) |
| Maximum no-load power dissipation | < 3.1 W (3x 480 V AC) | Minimum nominal load power dissipation | < 26.08 W (3x 400 V AC) |
| Power loss nominal load max. | < 27.35 W (3x 480 V AC) | Integrated fuse protection | no |
| Position | 3.x | Position marking | 3.1 (13), 3.2 (14) |
| Switch contact (floating) | OptoMOS | Switching voltage | max. 30 V DC (SELV) |
| Current carrying capacity | max. 100 mA | State condition | U
U |
| Position | 1.x | Position marking | 1.1 (L1), 1.2 (L2), 1.3 (L3), 1.4 () |
| Connection method | Push-in connection | rigid | 0.2 mm² ... 4 mm²
1.5 mm² (recommended) |
| flexible | 0.2 mm² ... 2.5 mm²
1.5 mm² (recommended) | flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm²
1.5 mm² (recommended) |
| flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm²
1.5 mm² (recommended) | rigid (AWG) | 24 ... 12 (Cu)
16 (recommended) |
| Stripping length | 10 mm (Rigid/flexible/ferrule) | Position | 2.x |
| Position marking | 2.1, 2.2 (+), 2.3, 2.4, 2.5 (-) | Connection method | Push-in connection |
| rigid | 0.2 mm² ... 10 mm²
4 mm² (recommended) | flexible | 0.2 mm² ... 6 mm²
6 mm² (recommended) |
| flexible with ferrule without plastic sleeve | 0.25 mm² ... 6 mm² (Cu)
6 mm² (recommended) | flexible with ferrule with plastic sleeve | 0.25 mm² ... 6 mm²
6 mm² (recommended) |
| rigid (AWG) | 24 ... 8 (Cu)
12 (recommended) | Stripping length | 12 mm (Rigid/flexible/ferrule) |
| Position | 3.x | Position marking | 3.1 (13), 3.2 (14) |
| Connection method | Push-in connection | rigid | 0.2 mm² ... 1.5 mm²
0.5 mm² (recommended) |
| flexible | 0.2 mm² ... 1.5 mm²
0.5 mm² (recommended) | flexible with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² (Cu)
0.5 mm² (recommended) |
| flexible with ferrule with plastic sleeve | 0.25 mm² ... 0.75 mm²
0.5 mm² (recommended) | rigid (AWG) | 24 ... 16 (Cu)
20 (recommended) |
| Stripping length | 10 mm (Rigid/flexible/ferrule) | Types of signaling | LED DC OK – signal state operation (U |
| Function | Visual operating state display | Color | red, yellow, green (multicolor LED) |
| LED off | Supply voltage input AC not present (Off) | LED on (green), DC OK | U |
| LED on (yellow), IOut > 90% | U | LED on (red), ISHORT | U |
| LED on (flashing red) OVP | U | Number of phases | 3.00 |
| Insulation voltage input/output | 6 kV DC (type test)
3.1 kV DC (routine test) | Product type | Power supply |
| Product family | TRIO POWER | MTBF (IEC 61709, SN 29500) | > 1100000 h (25 °C)
> 600000 h (40 °C)
> 230000 h (60 °C) |
| Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach | Article revision | 02 |
| Protection class | I | Degree of pollution | 2 |
| Width | 60 mm | Height | 135 mm |
| Depth | 132 mm
125 mm (Device depth (DIN rail mounting)) | Installation distance right/left | 0 mm / 0 mm |
| Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
| Assembly note | alignable: 0 mm horizontally, 30 mm vertically | Mounting position | horizontal DIN rail NS 35, EN 60715 |
| With protective coating | no | Flammability rating according to UL 94 | V0 (Housing, terminal blocks) |
| Hood version | Polycarbonate | Side element version | Aluminum |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
| Maximum altitude | ≤ 5000 m (> 2000 m, Derating: 10 %/1000 m) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Shock (operation) | 18 ms, 30g, per spatial direction (IEC 60068-2-27) | Vibration (operation) | 10 Hz ... 50 Hz, amplitude ±0.2 mm (IEC 60068-2-6)
50 Hz ... 150 Hz, 2.3g, 90 min. |
| Temp code | T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K) | EN 61010-1 | III (≤ 2000 m)
II (≤ 5000 m) |
| EN 61010-2-201 | III (≤ 2000 m)
II (≤ 5000 m) | Standard designation | Safety of power supply units up to 1100 V (insulation distances) |
| Standards/specifications | DIN EN 61558-2-16 | Standard designation | Electrical safety |
| Standards/specifications | IEC 61010-2-201 (SELV) | Standard designation | Equipping high voltage installations with electronic equipment |
| Standards/specifications | EN 50178/VDE 0160 (PELV) | Standard designation | Safety for equipment for measurement, control, and laboratory use |
| Standards/specifications | IEC 61010-1 | Standard designation | Protective extra-low voltage |
| Standards/specifications | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard designation | Safe isolation |
| Standards/specifications | IEC 61558-2-16
IEC 61010-2-201 | Standard designation | Limitation of harmonic line currents |
| Standards/specifications | EN 61000-3-2 | Standard designation | Mains variation/undervoltage |
| Standards/specifications | SEMI F47
EN 61000-4-11 | Identification | UL/C-UL Listed UL 61010-1 |
| Identification | UL/C-UL Listed UL 61010-2-201 | Identification | PROCESS CONTROL EQUIPEMENT FOR HAZARDOUS LOCATIONS
(EN) This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D, Hazardous Locations, or non-hazardous locations only.
(EN) WARNING: Explosion Hazard - Do not connect or disconnect equipment unless power has been switched off or the area is known to be non-hazardous.
(EN) If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
(EN) This equipement must be installed in a suitable, tool secured/key locked enclosure. |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) | Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial) |
| Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) | Noise emission | EN 55016
EN 61000-6-3 (Class B) |
| Standards/regulations | EN 61000-3-2
EN 61000-3-2 (Class A) | Frequency range | 0 kHz ... 2 kHz |
| Standards/regulations | EN 61000-3-3
EN 61000-3-3 | Frequency range | 0 kHz ... 2 kHz |
| Standards/regulations | EN 61000-4-2 | Contact discharge | 6 kV (Test Level 3) |
| Discharge in air | 8 kV (Test Level 3) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
| Test field strength | 10 V/m (Test Level 3) | Frequency range | 1 GHz ... 6 GHz |
| Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | asymmetrical 2 kV (Test Level 3) |
| Output | asymmetrical 2 kV (Test Level 3) | Signal | asymmetrical 1 kV (Test Level 3) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
| Input | symmetrical 1 kV (Test Level 3)
asymmetrical 2 kV (Test Level 3) | Output | symmetrical 0.5 kV (Test Level 2)
asymmetrical 1 kV (Test Level 2) |
| Signal | asymmetrical 1 kV (Test Level 2) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
| Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
| Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-4-11 |
| Voltage | 480 V AC | Frequency | 50 Hz |
| Voltage dip | 70 % | Number of periods | 25 periods |
| Additional text | Class 3 | Comments | Criterion A |
| Voltage dip | 40 % | Number of periods | 10 periods |
| Additional text | Class 3 | Comments | Criterion B |
| Voltage dip | 0 % | Number of periods | 1 period |
| Additional text | Class 3 | Comments | Criterion A |
| Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
