Product Model

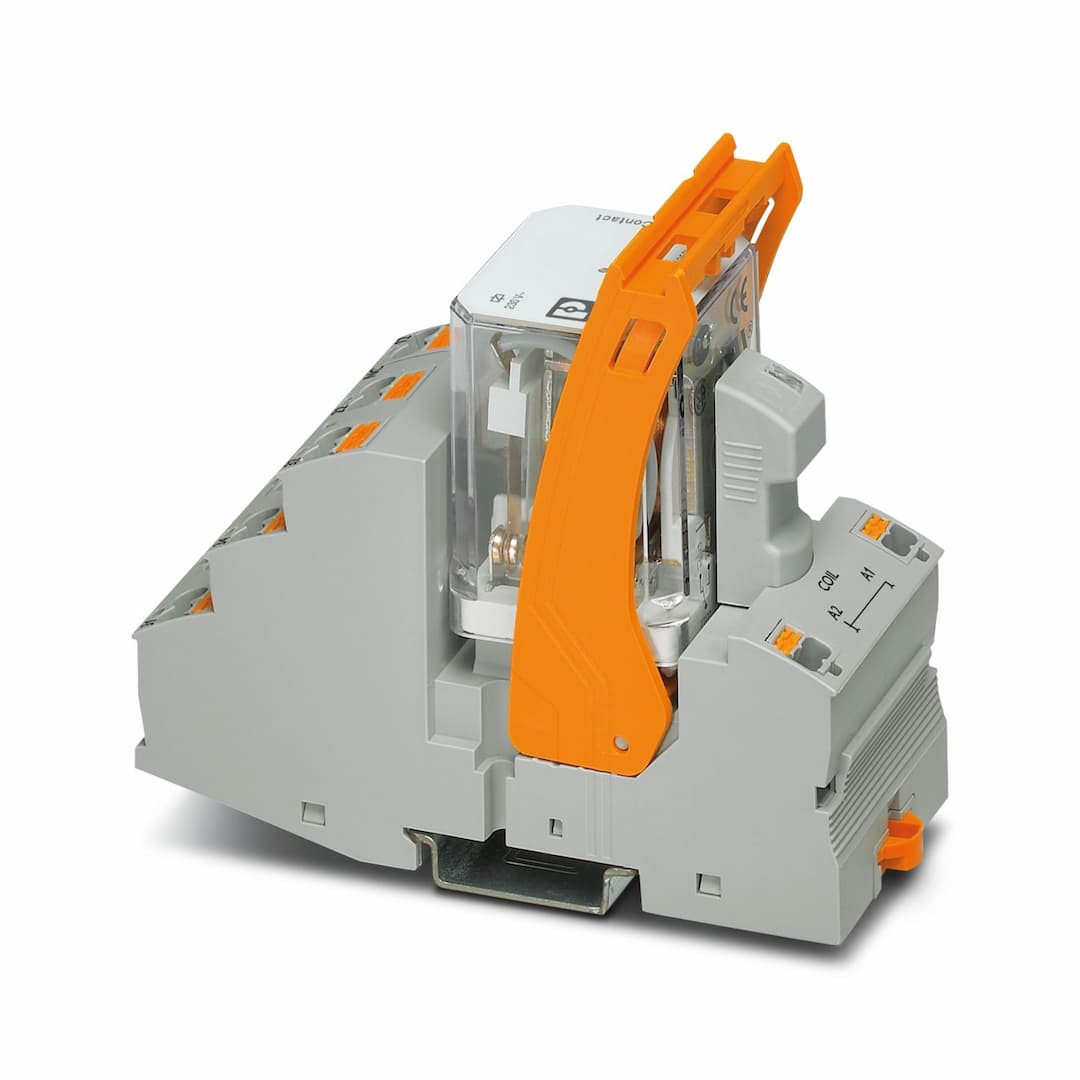

RIF-4-RPT-LV-230AC/3X21
Key Features
- 1Reliable Operation: Ensures durability with a mechanical service life of approx. 107 cycles.
- 2Efficient Design: Operates efficiently at a nominal input voltage of 230 V AC.
- 3Versatile Application: Suitable for universal applications with basic insulation and overvoltage category III.
- 4High Switching Capacity: Handles maximum switching voltage of 440 V AC and interrupting rating up to 2250 VA.
- 5Advanced Protection: Equipped with a varistor for protective circuit and yellow LED operating voltage display.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay Module | Product family | RIFLINE complete |
| Application | Universal | Operating mode | 100% operating factor |
| Mechanical service life | approx. 10 | Date of last data management | 22.08.2024 |
| Article revision | 09 | Insulation | Basic insulation |
| Overvoltage category | III | Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 3.22 W | Test voltage (Winding/contact) | 2.5 kV |
| Test voltage (Contact/contact) | 2.5 kV | Rated insulation voltage | 250 V AC |
| Rated surge voltage | 4 kV | Nominal input voltage U | 230 V AC |
| Input voltage range | 195.5 V AC ... 253 V AC (20 °C) | Input voltage range in reference to U | see diagram |
| Mains frequency | 50/60 Hz | Drive and function | monostable |
| Drive (polarity) | polarized | Typical input current at U | 14 mA |
| Typical response time | 5 ms ... 25 ms | Typical release time range | 5 ms ... 20 ms |
| Coil voltage | 230 V AC | Protective circuit | Varistor |
| Operating voltage display | Yellow LED | Contact switching type | 3 changeover contacts |
| Type of switch contact | Single contact | Contact material | AgNi |
| Maximum switching voltage | 440 V AC
250 V DC | Minimum switching voltage | 10 V (24 mA) |
| Limiting continuous current | 8 A (see diagram) | Maximum inrush current | 50 A (20 ms, N/O contacts) |
| Min. switching current | 10 mA (24 V) | Interrupting rating (ohmic load) max. | 216 W (24 V DC)
124 W (48 V DC)
108 W (60 V DC)
52 W (110 V DC)
70 W (220 V DC)
2250 VA (250 V AC)
4000 VA (440 V AC) |
| 3-phase motor load | 1500 W | Motor load according to UL 508 | 1/3 HP, 120 V AC (single-phase AC motor)
1/2 HP, 240 V AC (single-phase AC motor)
1/2 HP, 240 V AC (three-phase induction motor) |
| Utilization category CB Scheme (IEC 60947-5-1) | AC15, 1.5 A/240 V (N/O contact)
DC13, 2 A/240 V (N/O contact) | Connection method | Push-in connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) | Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) |
| Connection method | Push-in connection | Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.14 mm² ... 2.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) |
| Conductor cross section AWG | 26 ... 14 (solid)
26 ... 14 (flexible) | Diameter | 3.2 mm |
| Width | 43 mm | Height | 111 mm |
| Depth | 90 mm | Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 (Housing) | Degree of protection (Relay base) | IP20 (Relay base) |
| Degree of protection (Relay) | RT I (Relay) | Ambient temperature (operation) | -40 °C ... 40 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
