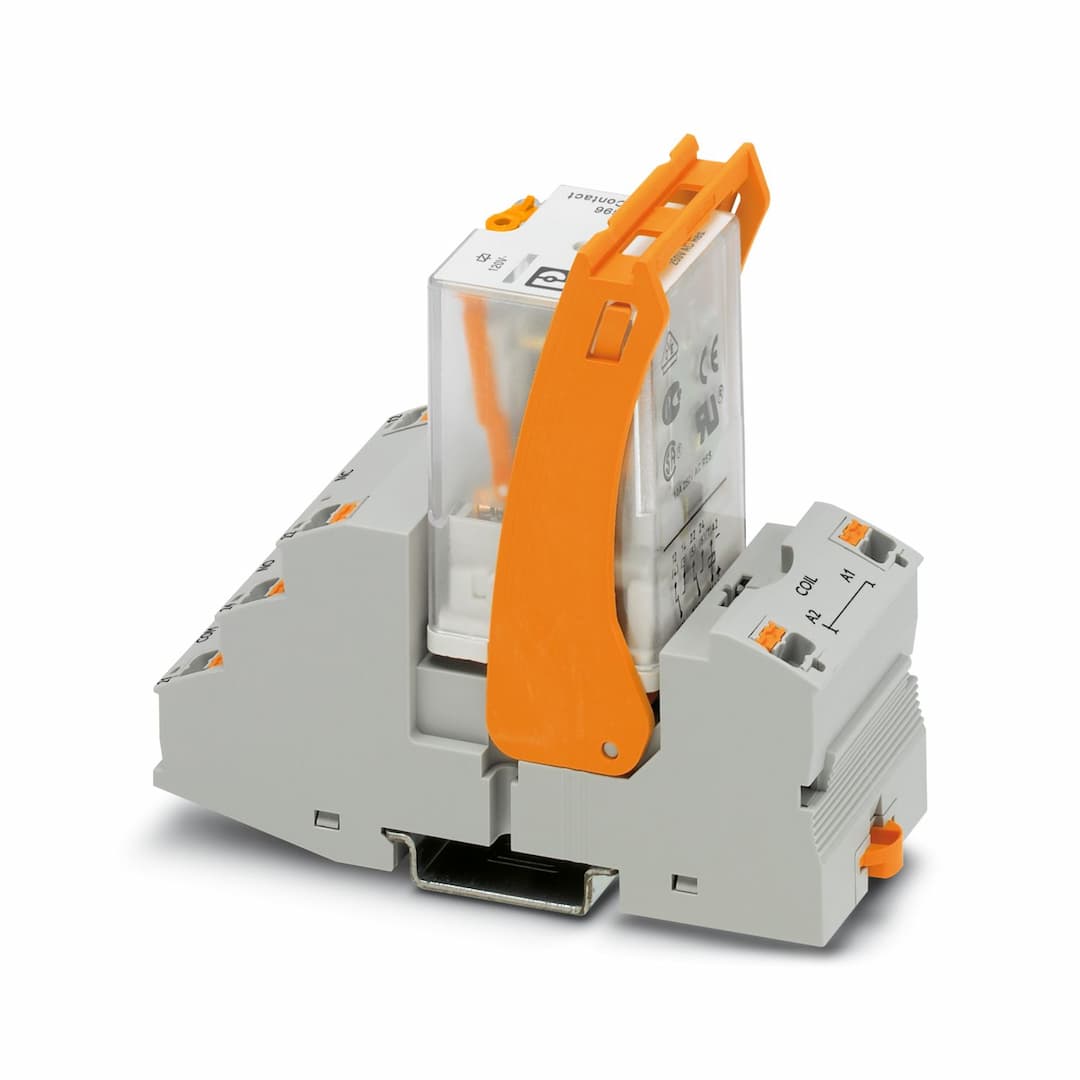

Product Model
RIF-3-RPT-LV-120AC/2X21
Key Features
- 1Universal Application: Suitable for a wide range of industrial applications.
- 2Basic Insulation: Meets overvoltage category III and pollution degree 2 standards.
- 3High Reliability: Approximate mechanical service life of 2 x 107 cycles.
- 4Efficient Design: Push-in connection with a typical input current of 23 mA at 120 V AC.
- 5Advanced Safety Features: Includes a varistor protective circuit and yellow LED operating voltage display.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay Module | Product family | RIFLINE complete |
| Application | Universal | Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 10 | Date of last data management | 10.06.2024 |
| Article revision | 05 | Insulation | Basic insulation |
| Overvoltage category | III | Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 2.76 W | Test voltage (Winding/contact) | 2.5 kV |
| Test voltage (Contact/contact) | 2 kV | Rated insulation voltage | 250 V AC |
| Rated surge voltage | 4 kV | Nominal input voltage U | 120 V AC |
| Input voltage range | 102 V AC ... 132 V AC (20 °C) | Input voltage range in reference to U | see diagram |
| Mains frequency | 50/60 Hz | Drive and function | monostable |
| Typical input current at U | 23 mA | Typical response time | 5 ms ... 15 ms |
| Typical release time range | 5 ms ... 20 ms | Coil voltage | 120 V AC |
| Protective circuit | Varistor | Operating voltage display | Yellow LED |
| Contact switching type | 2 changeover contacts | Type of switch contact | Single contact |
| Contact material | AgNi | Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 10 V (24 mA) | Limiting continuous current | 7 A (see diagram) |
| Maximum inrush current | 30 A (20 ms, N/O contacts) | Min. switching current | 10 mA (24 V) |
| Interrupting rating (ohmic load) max. | 168 W (24 V DC)
124 W (48 V DC)
108 W (60 V DC)
52 W (110 V DC)
48 W (220 V DC)
1750 VA (250 V AC) | Utilization category CB Scheme (IEC 60947-5-1) | AC15, 1.5 A/240 V (N/O contact)
DC13, 2 A/240 V (N/O contact) |
| Connection method | Push-in connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) |
| Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) | Diameter | 3.2 mm |
| Width | 40 mm | Height | 103 mm |
| Depth | 90 mm | Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 (Housing) | Degree of protection (Relay base) | IP20 (Relay base) |
| Degree of protection (Relay) | RT I (Relay) | Ambient temperature (operation) | -40 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Standards/regulations | DIN EN 50178 | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
