Product Model

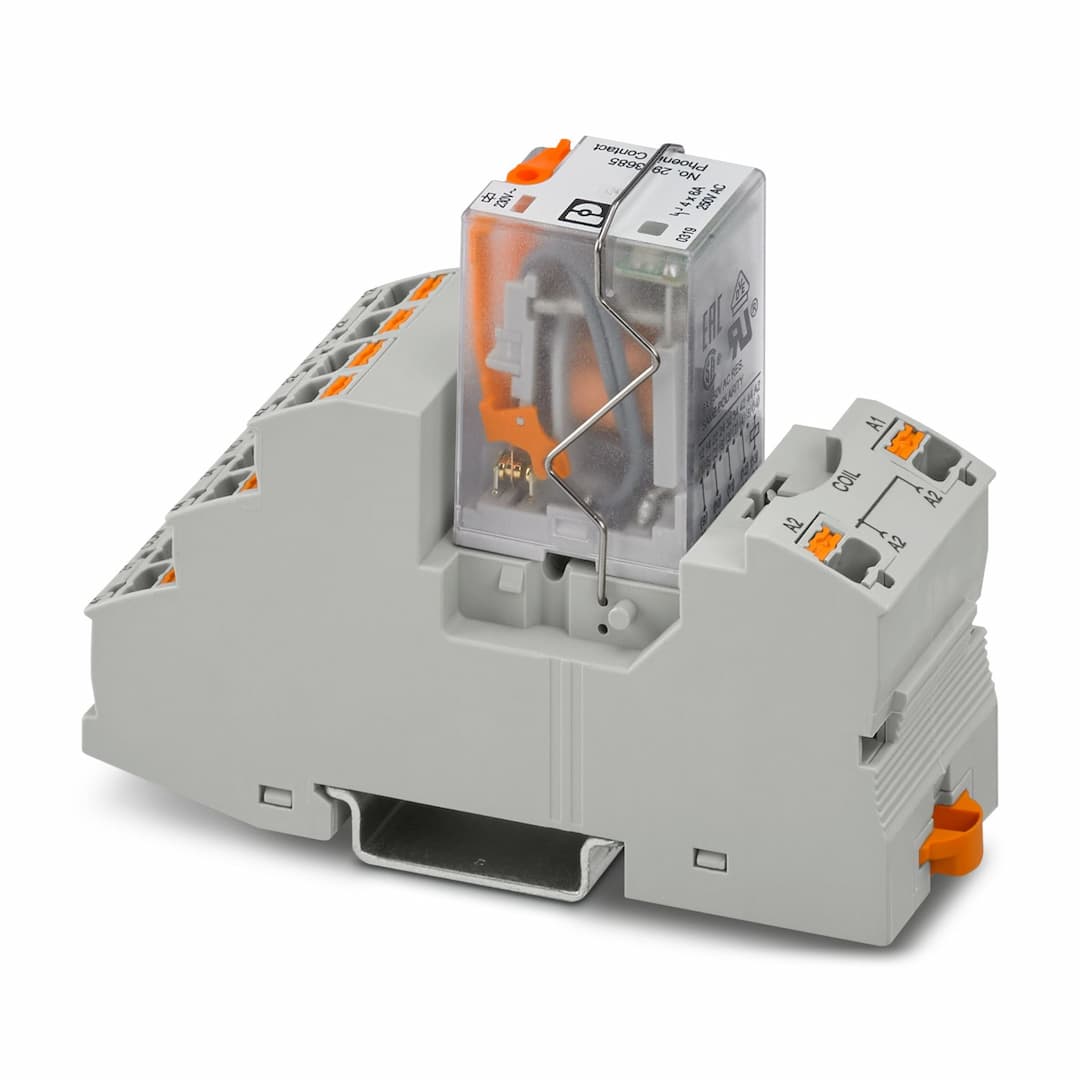

RIF-2-RPT-MH-L-230AC/4X21AU
Key Features
- 1High Performance Reliability: Designed for 100% operating factor with a mechanical service life of approx. 2x 107 cycles.
- 2Universal Application: Suitable for universal applications with basic insulation and overvoltage category II.
- 3Efficient Switching: Features 4 changeover contacts with a maximum switching voltage of 30 V AC and 36 V DC.
- 4Easy Installation: Equipped with push-in connections for quick and secure wiring, compatible with conductors 0.14 mm² to 1.5 mm².
- 5Comprehensive Approval: Recognized and approved in accordance with UL 508 for safe and reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay Module | Product family | RIFLINE complete |
| Application | Universal | Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 10 | Date of last data management | 22.08.2024 |
| Article revision | 03 | Insulation | Basic insulation |
| Overvoltage category | II | Pollution degree | 2 |
| Service life electrical | see diagram | Maximum power dissipation for nominal condition | 1.5 W |
| Test voltage (Winding/contact) | 2.5 kV | Test voltage (Changeover contact/changeover contact) | 2 kV |
| Rated insulation voltage | 250 V AC | Rated surge voltage | 2.5 kV |
| Nominal input voltage U | 230 V AC | Input voltage range | 184 V AC ... 276 V AC (20 °C) |
| Input voltage range in reference to U | see diagram | Mains frequency | 50/60 Hz |
| Drive and function | monostable | Drive (polarity) | polarized |
| Typical input current at U | 6.5 mA | Typical response time | 5 ms ... 15 ms |
| Typical release time range | 5 ms ... 20 ms | Coil voltage | 230 V AC |
| Operating voltage display | Yellow LED | Contact switching type | 4 changeover contacts |
| Type of switch contact | Single contact | Contact material | AgNi, hard gold-plated |
| Maximum switching voltage | 30 V AC
36 V DC | Minimum switching voltage | 2 V (24 mA) |
| Limiting continuous current | 50 mA | Maximum inrush current | 50 mA |
| Min. switching current | 2 mA (24 V) | Interrupting rating (ohmic load) max. | 1.2 W (24 V DC) |
| Switching capacity min. | 48 mW | Switching capacity | 2 A (24 V, DC13)
1 A (230 V, AC15) |
| Note | — | Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 5 V (24 mA) |
| Limiting continuous current | see diagram | Min. switching current | 5 mA (24 V) |
| Interrupting rating (ohmic load) max. | 144 W (24 V DC)
124 W (48 V DC)
108 W (60 V DC)
52 W (at 110 V DC)
48 W (220 V DC)
1500 VA (250 V AC) | Connection method | Push-in connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) | Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) |
| Diameter | 3.2 mm | Width | 31 mm |
| Height | 96 mm | Depth | 70 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
| Degree of protection (Relay) | RT I (Relay) | Degree of protection (Relay base) | IP20 (Relay base) |
| Ambient temperature (operation) | -40 °C ... 50 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
