Product Model

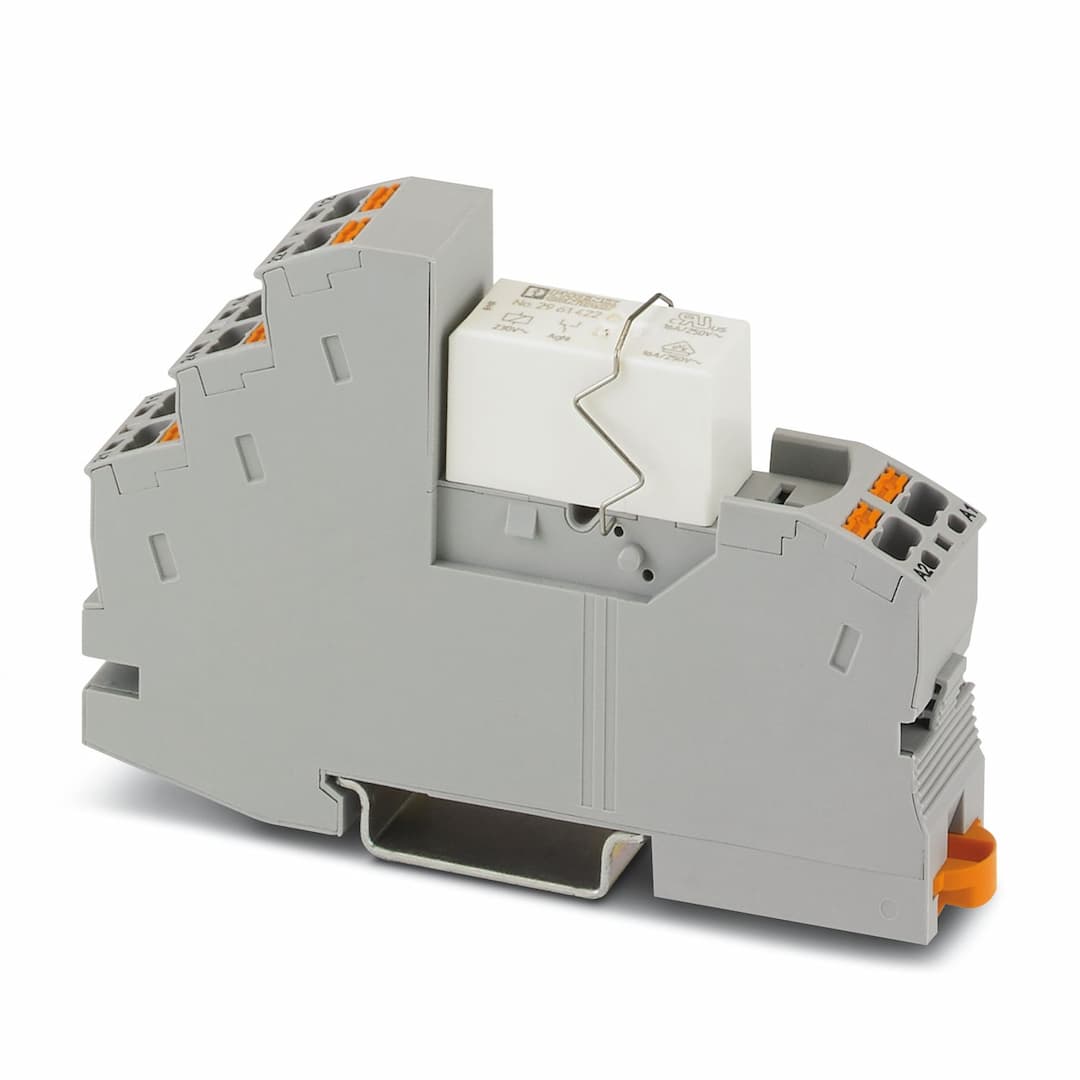

RIF-1-RPT-MH-230AC/1X21
Key Features
- 1Efficient Control Solutions: The Phoenix Contact RIF-1-RPT-MH-230AC/1X21 relay module is designed to bring efficiency and ease of use to your control cabinet.
- 2230V AC Coil Voltage: Equipped with a 230V AC coil voltage, this module ensures reliable operation in various industrial settings.
- 3SPDT Configuration: Offers a Single Pole Double Throw (SPDT) configuration for precise control and switching.
- 4DIN Rail Mounting: Conveniently mounts on DIN rails, making it easy to integrate into existing control systems.
- 5High Load Current Rating: Handles a load current of up to 6A, making it suitable for demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay Module | Product family | RIFLINE complete |
| Application | Universal | Operating mode | 100% operating factor |
| Mechanical service life | approx. 10 | Date of last data management | 21.08.2024 |
| Article revision | 03 | Insulation | Safe isolation between input and output
Basic insulation between the changeover contacts |
| Overvoltage category | III | Pollution degree | 2 |
| Service life electrical | see diagram | Maximum power dissipation for nominal condition | 0.7 W |
| Test voltage (Winding/contact) | 4 kV | Rated insulation voltage | 250 V AC |
| Rated surge voltage | 6 kV (Input/output)
4 kV (between the changeover contacts) | Nominal input voltage U | 230 V AC |
| Input voltage range | 184 V AC ... 264.5 V AC (20 °C) | Input voltage range in reference to U | see diagram |
| Mains frequency | 50/60 Hz | Drive and function | monostable |
| Drive (polarity) | polarized | Typical input current at U | 3 mA |
| Typical response time | 3 ms ... 12 ms | Typical release time range | 3 ms ... 20 ms |
| Coil voltage | 230 V AC | Contact switching type | 1 changeover contact |
| Type of switch contact | Single contact | Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 12 V (10 mA) |
| Limiting continuous current | 10 A (20 °C) | Maximum inrush current | 25 A (20 ms, N/O contacts) |
| Min. switching current | 10 mA (12 V) | Interrupting rating (ohmic load) max. | 264 W (24 V DC)
58 W (48 V DC)
48 W (60 V DC)
50 W (110 V DC)
80 W (220 V DC)
2750 VA (250 V AC) |
| Utilization category CB Scheme (IEC 60947-5-1) | AC15, 1.5 A/240 V (N/O contact)
AC15, 3 A/250 V (N/C contact)
DC13, 2 A/24 V (N/C contact)
DC13, 0.2 A/250 V (N/O contact) | Connection method | Push-in connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) | Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) |
| Diameter | 3.2 mm | Width | 16 mm |
| Height | 96 mm | Depth | 60 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
| Degree of protection (Relay) | RT III (Relay) | Degree of protection (Relay base) | IP20 (Relay base) |
| Ambient temperature (operation) | -40 °C ... 50 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
