Product Model

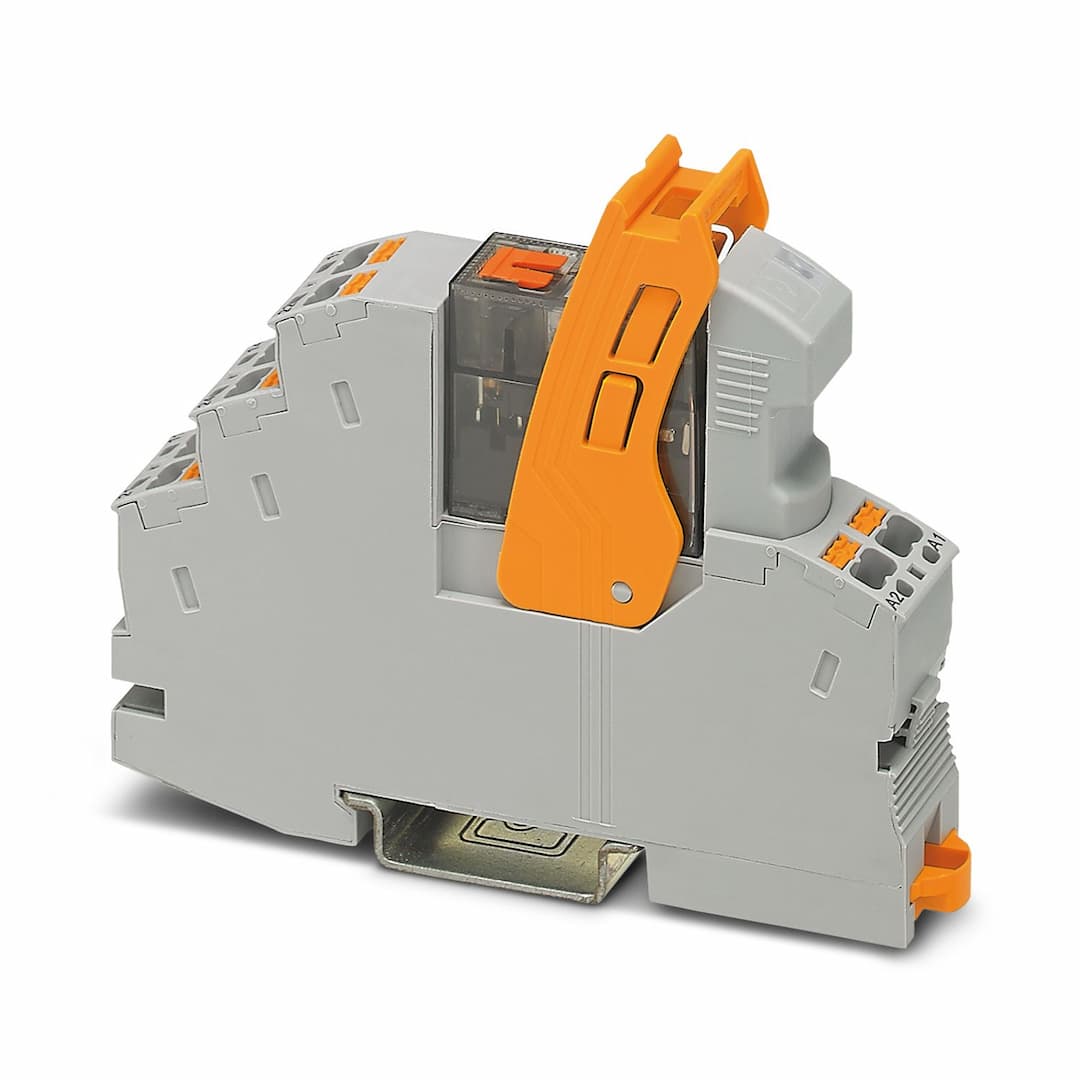

RIF-1-RPT-LV-230AC/1X21MS
Key Features
- 1Supports up to 250 V AC/DC with a single contact.
- 2Measures 16 mm wide, 93 mm high, and 75 mm deep.
- 3Typical response time is 3 ms to 12 ms.
- 4Made with AgNi contact material for long-lasting performance.
- 5Compatible with solid and flexible conductors up to 1.5 mm².
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay Module | Product family | RIFLINE complete |
| Application | Universal
Palm switch | Operating mode | 100% operating factor |
| Mechanical service life | approx. 5x 10 | Date of last data management | 15.10.2024 |
| Article revision | 07 | Insulation | Safe isolation between input and output
Basic insulation between the changeover contacts |
| Overvoltage category | III | Pollution degree | 2 |
| Service life electrical | see diagram | Maximum power dissipation for nominal condition | 0.81 W |
| Test voltage (Winding/contact) | 4 kV | Rated insulation voltage | 250 V AC |
| Rated surge voltage | 6 kV (Input/output)
4 kV (between the changeover contacts) | Nominal input voltage U | 230 V AC (50/60 Hz) |
| Input voltage range | 184 V AC ... 253 V AC (20 °C) | Input voltage range in reference to U | see diagram |
| Mains frequency | 50/60 Hz | Drive and function | monostable |
| Drive (polarity) | polarized | Typical input current at U | 3.5 mA |
| Typical response time | 4 ms ... 10 ms | Typical release time range | 3 ms ... 20 ms |
| Coil voltage | 230 V AC | Protective circuit | Varistor |
| Operating voltage display | Yellow LED | Contact switching type | 1 changeover contact |
| Type of switch contact | Single contact | Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 12 V (10 mA) |
| Limiting continuous current | 8 A (see diagram) | Maximum inrush current | 32 A (20 ms, N/O contacts) |
| Min. switching current | 10 mA (12 V) | Interrupting rating (ohmic load) max. | 264 W (24 V DC)
62 W (48 V DC)
48 W (60 V DC)
52 W (110 V DC)
66 W (220 V DC)
2500 VA (250 V AC) |
| Switching capacity min. | 120 mW | Utilization category CB Scheme (IEC 60947-5-1) | AC15, 3 A/250 V (N/O contact)
DC13, 2 A/24 V (N/O contact) |
| Connection method | Push-in connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) |
| Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) | Diameter | 3.2 mm |
| Width | 16 mm | Height | 96 mm |
| Depth | 75 mm | Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 (Housing) | Degree of protection (Relay base) | IP20 (Relay base) |
| Degree of protection (Relay) | RT II (Relay) | Ambient temperature (operation) | -40 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
