Product Model

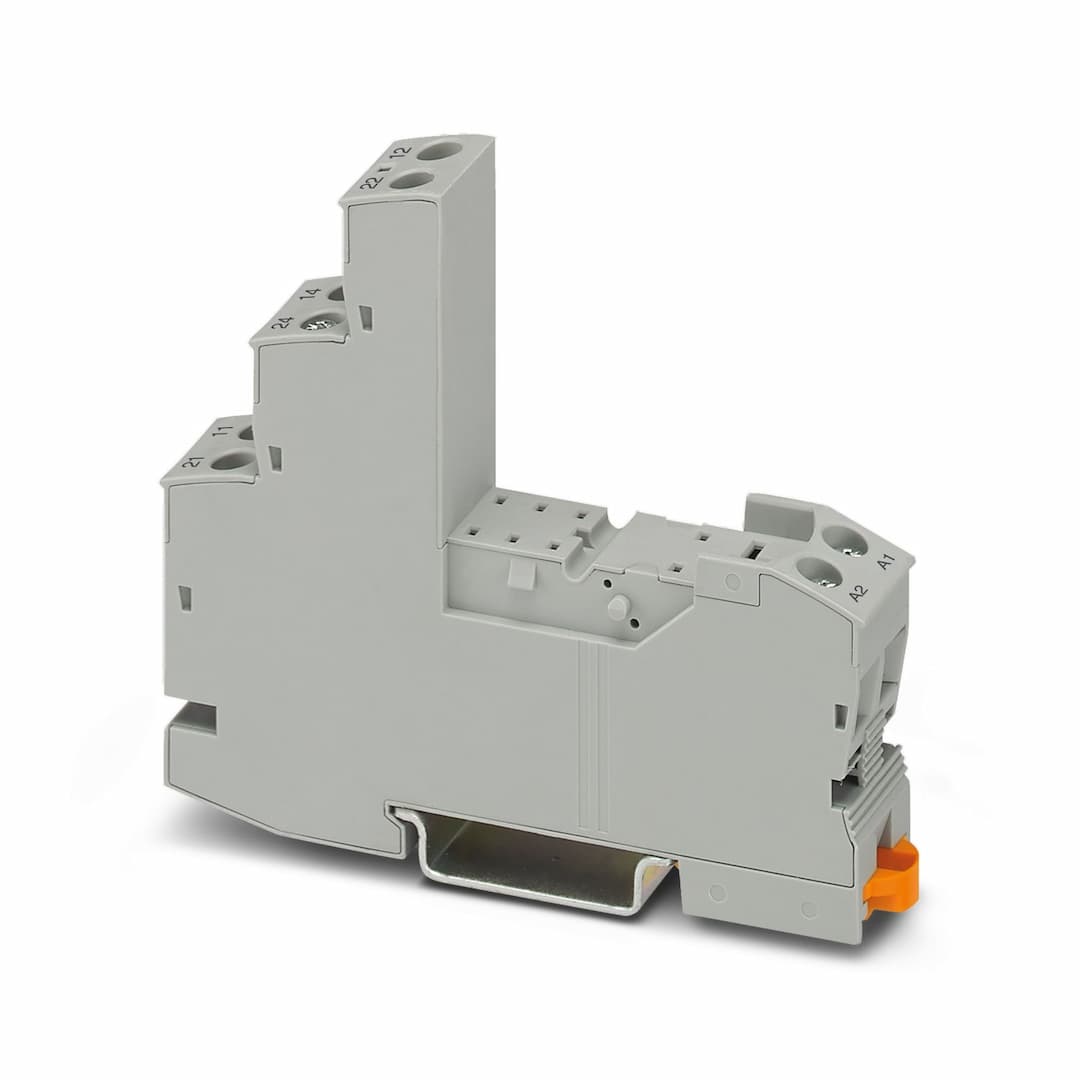

RIF-1-BSC/2X21
Key Features
- 1Compact design with dimensions of 16 mm width, 89 mm height, and 75 mm depth with retaining bracket.
- 2Suitable for miniature power relays with 1 or 2 changeover contacts or identical solid-state relays.
- 3Screw connection with stripping length of 8 mm and conductor cross section from 0.5 mm² to 4 mm².
- 4Plug-in option for input/interference suppression modules for enhanced reliability.
- 5Mountable on NS 35/7,5 with ambient temperature range of -40 °C to 85 °C for operation and storage/transport.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Notes on operation | FBS 2-6... plug-in bridge for the input side (A2) and FBS-2-8... plug-in bridge for the output side (11/21) | Product type | Relay socket |
| Product family | RIFLINE complete | Article revision | 04 |
| Nominal voltage U | 250 V AC/DC | Nominal current I | max. 15.5 A (Depends on application/assembly) |
| Protective circuit | depending on the selected input/suppressor modules | Connection method | Screw connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.5 mm² ... 4 mm² |
| Conductor cross-section rigid (2 conductors with same cross section) | 0.5 mm² ... 2.5 mm² | Conductor cross section flexible | 0.5 mm² ... 4 mm²
0.5 mm² ... 4 mm² (Ferrule with plastic sleeve) |
| Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 2.5 mm²
0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve) | Conductor cross section AWG | 20 ... 10 (solid)
20 ... 12 (flexible) |
| Tightening torque | 0.5 Nm ... 0.6 Nm | Width | 16 mm |
| Height | 89 mm | Depth Retaining bracket | 75 mm (with retaining bracket) |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
| Ambient temperature (operation) | -40 °C ... 85 °C (Depends on application/assembly) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Mounting type | DIN rail mounting |
| Mounting position | any |
Specifications may be subject to change without notice
