Product Model

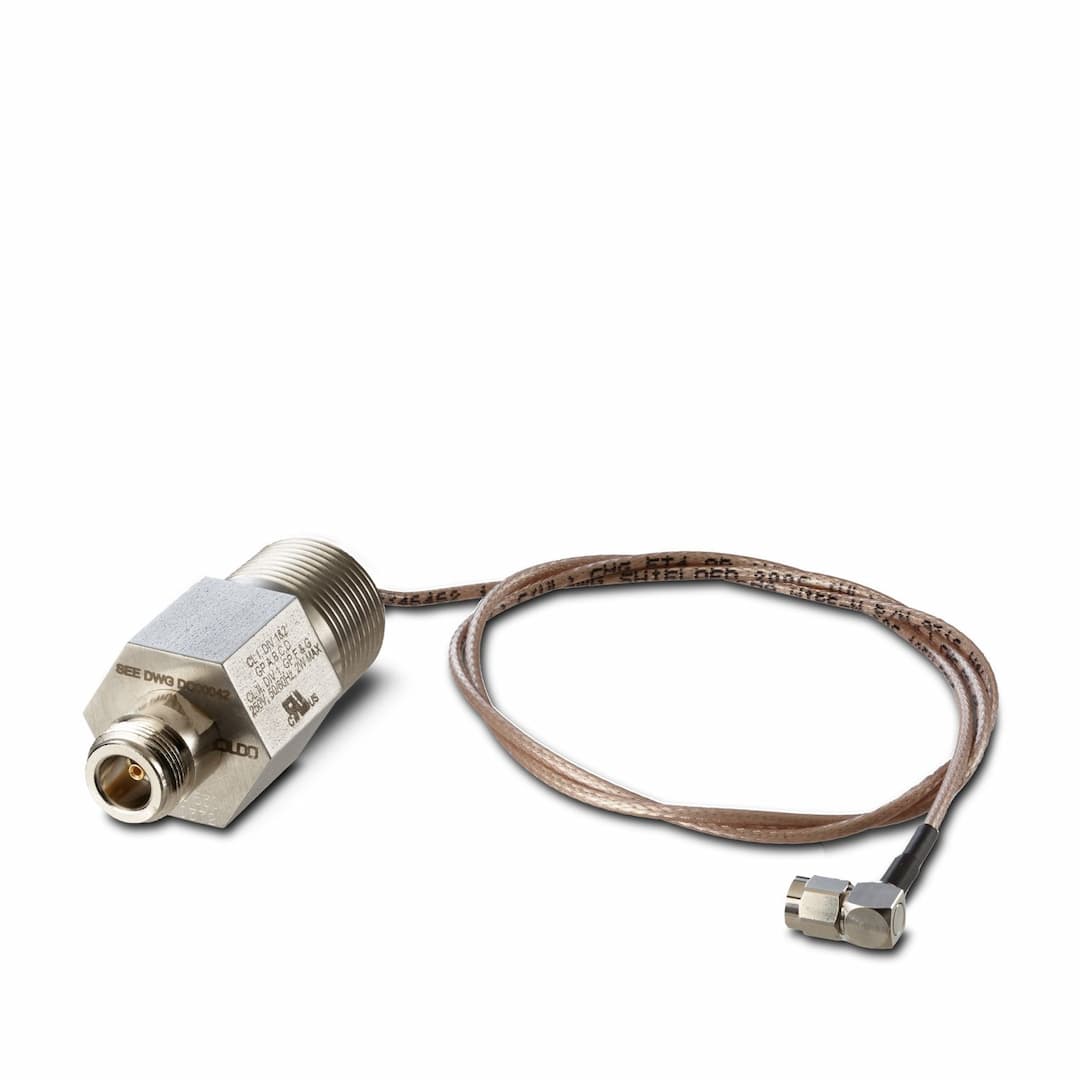

RAD-PIG-RSMA-N-EX/ATEX
Key Features
- 1Suitable for frequencies from 0.3 GHz to 6 GHz, ensuring compatibility with various antenna types.
- 2Meets stringent safety standards for hazardous environments, zones 0, 1, and 2.
- 3IP66 rating for protection against dust and water, with stainless steel connections.
- 4Includes a 0.76m (2.3ft) connection cable, making setup straightforward.
- 5Constructed with high-quality materials for long-lasting performance in harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Coaxial cable | Frequency range | 0.3 GHz ... 6 GHz |
| Impedance | 50 Ω | Maximum error voltage U | 250 V DC |
| Maximum HF output power P | 2 W | Maximum capacity | 5.64 nF |
| Connection method | N (female) | Connection method | RSMA (male) |
| Outer material connection | Stainless steel | Cable length | 0.76 m |
| Degree of protection | IP66 | Ambient temperature (operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | ATEX | II 2(1)G, Ex d mb [ia] IIC |
| Mounting | Bulkhead, M25 thread |
Specifications may be subject to change without notice
