Product Model

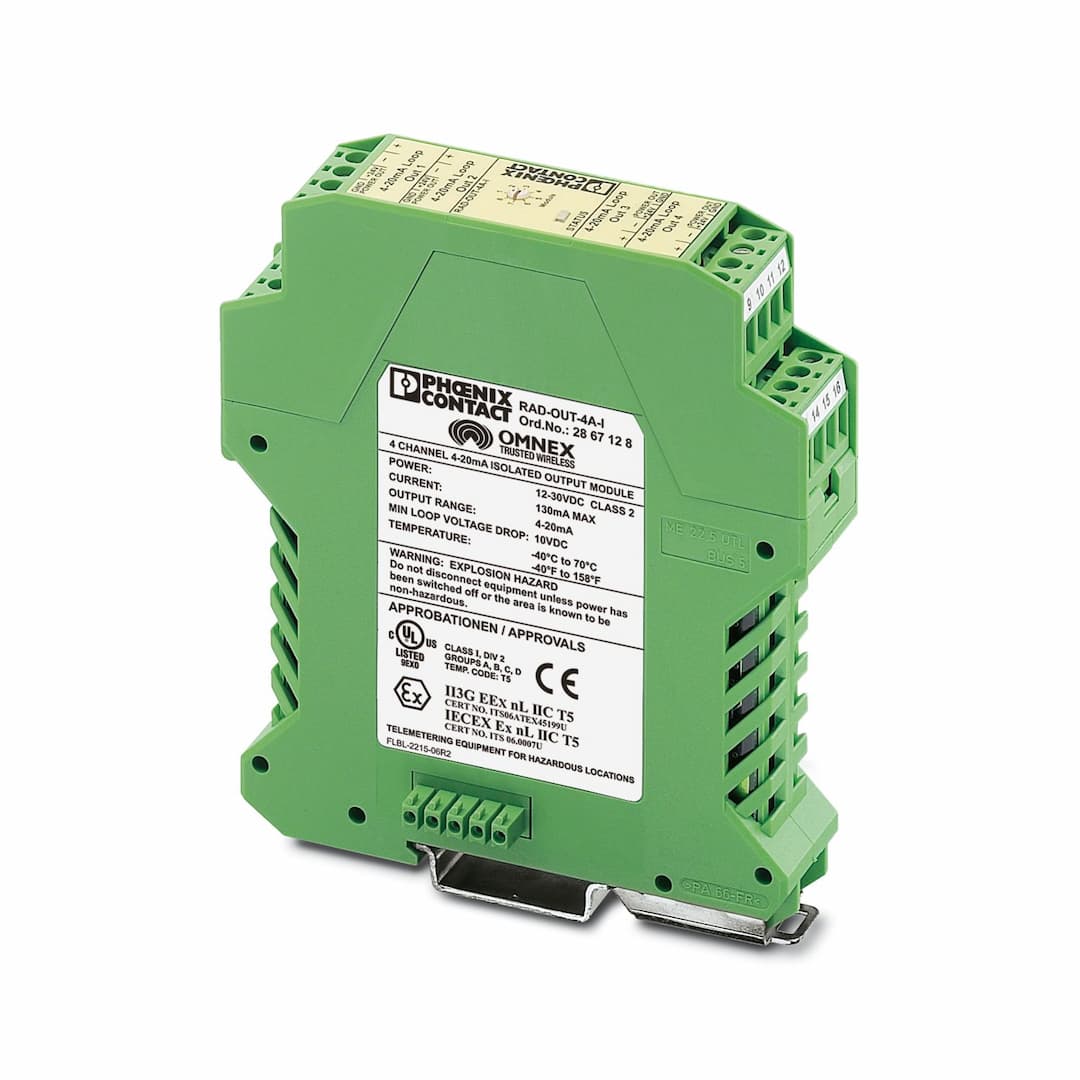

RAD-OUT-4A-I
Key Features
- 1Built to withstand demanding industrial environments.
- 2Screw connection method simplifies setup and maintenance.
- 3Durable construction ensures long-lasting performance.
- 4Operates within 9 V DC to 30 V DC range via bus foot.
- 5Typical current consumption is 100 mA.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Extension module | Maximum power dissipation for nominal condition | 3.12 W |
| Connection method | Screw connection | Supply voltage range | 9 V DC ... 30 V DC (via bus foot) |
| Typical current consumption | 100 mA | Max. current consumption | 130 mA |
| Output name | Current output | Number of outputs | 4 |
| Current output signal | 4 mA ... 20 mA | Load | 700 Ω (at U |
| Resolution | 16 bit | Connection method | Screw connection |
| Stripping length | 8 mm | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 14 |
| Screw thread | M3 | Width | 22.5 mm |
| Height | 99 mm | Depth | 114.5 mm |
| Color (Housing) | green (RAL 6021) | Material (Housing) | Polyamide |
| Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C
-4 °F ... 149 °F |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
| Identification | Class I, Div. 2, Groups A, B, C, D | Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting position | any |
Specifications may be subject to change without notice
