Product Model

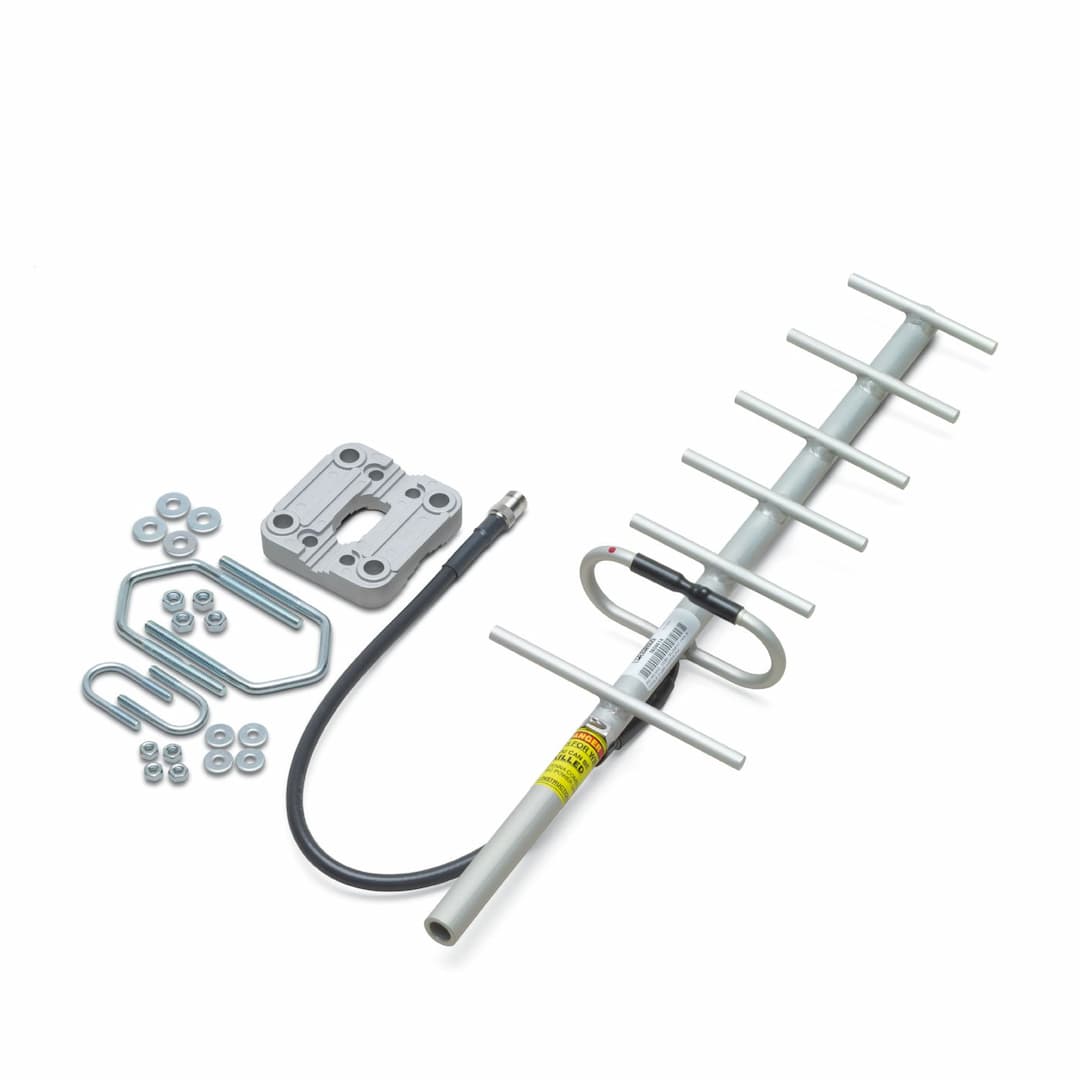

RAD-ISM-900-ANT-YAGI-10-N
Key Features
- 112 dBi gain for long-range communication.
- 2Ensures stable and efficient signal transmission.
- 3Durable and resistant to harsh environmental conditions.
- 4Includes mounting bracket and mast clips for straightforward setup.
- 5Suitable for both vertical and horizontal beamwidths, covering 56°/46° angles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Antenna |
| Gain | 12.15 dBi | Vertical beamwidth | 46 ° |
| Horizontal beamwidth | 56 ° | Polarization | Linear vertical or horizontal |
| Frequency band | 900 MHz | Frequency range | 868 MHz ... 960 MHz |
| Impedance | 50 Ω | Connection method | N (female) with cable (0.6 m) |
| Outside diameter | 32 mm ... 60 mm (Mast) | Width | 60.5 mm |
| Height | 172 mm | Length | 609.6 mm |
| Outside diameter | 32 mm ... 60 mm (Mast) | Material | Aluminum
V2A
V2A |
| Cable length | 0.60 m | Connecting cable | yes |
| Degree of protection | IP65 | Ambient temperature (operation) | -40 °C ... 80 °C |
| Wind velocity | 15.4321 km/h | Mounting type | Mast mounting |
Specifications may be subject to change without notice
