Product Model
RAD-ISM-900-ANT-OMNI-5
Key Features
- 1360° horizontal and 30° vertical beamwidth.
- 27 dBi gain for enhanced signal strength.
- 3IP65 protection against dust and water.

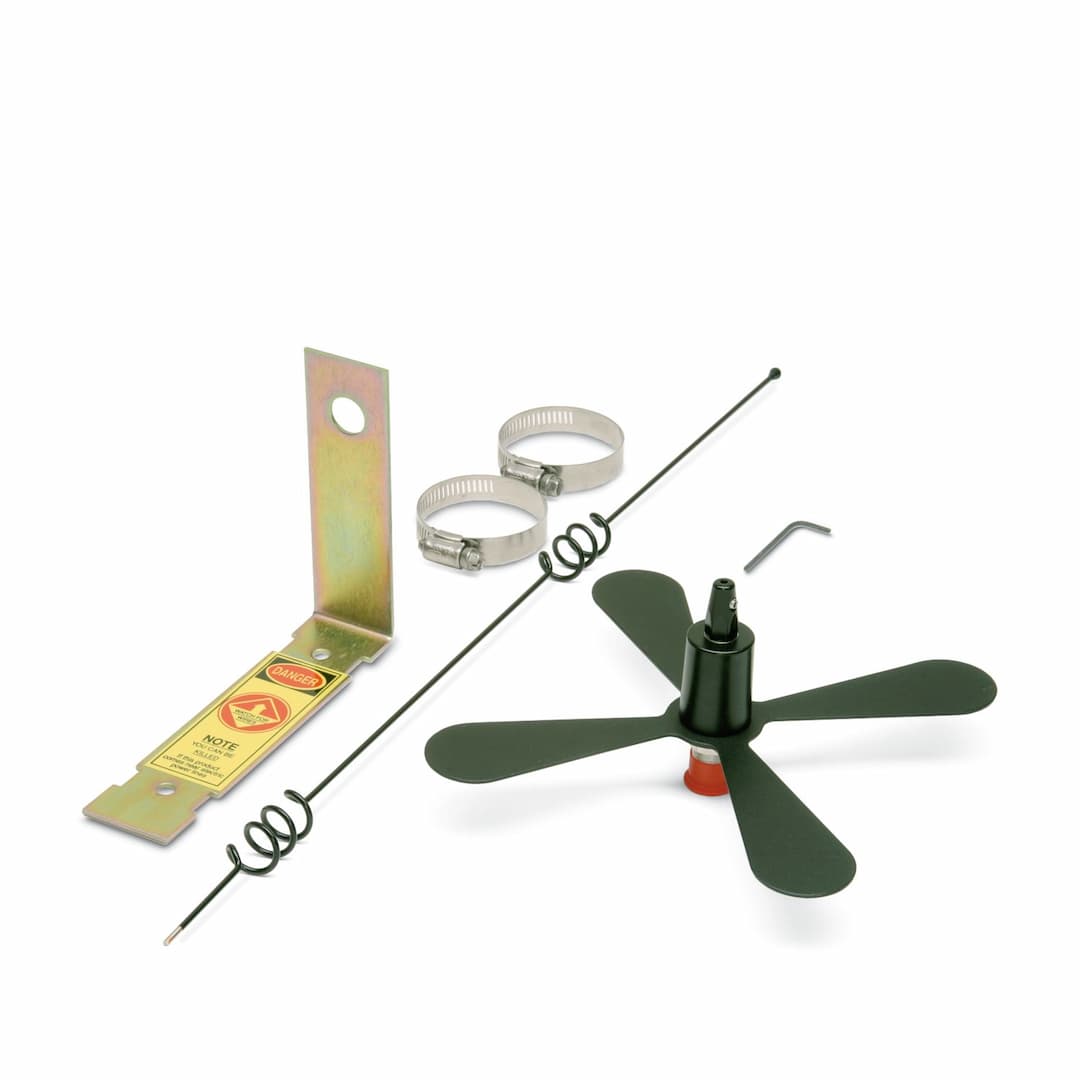

- 4Includes mounting bracket and mast clips.
- 5Ideal for freely mobile applications and multipoint connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Antenna | Gain | 7 dBi |
| Vertical beamwidth | 30 ° | Horizontal beamwidth | 360 ° |
| Polarization | Linear vertical | Frequency band | 900 MHz |
| Frequency range | 900 MHz | Impedance | 50 Ω |
| Connection method | N (female) | Outside diameter | 38 mm ... 57 mm (Mast) |
| Width | 0.3 cm | Height | 60.9 cm |
| Outside diameter | 38 mm ... 57 mm (Mast) | Material | galvanized sheet steel
V2A |
| Connecting cable | no | Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 80 °C | Wind velocity | 12.34568 km/h |
| Mounting type | Mast mounting or wall mounting |
Specifications may be subject to change without notice
