Product Model

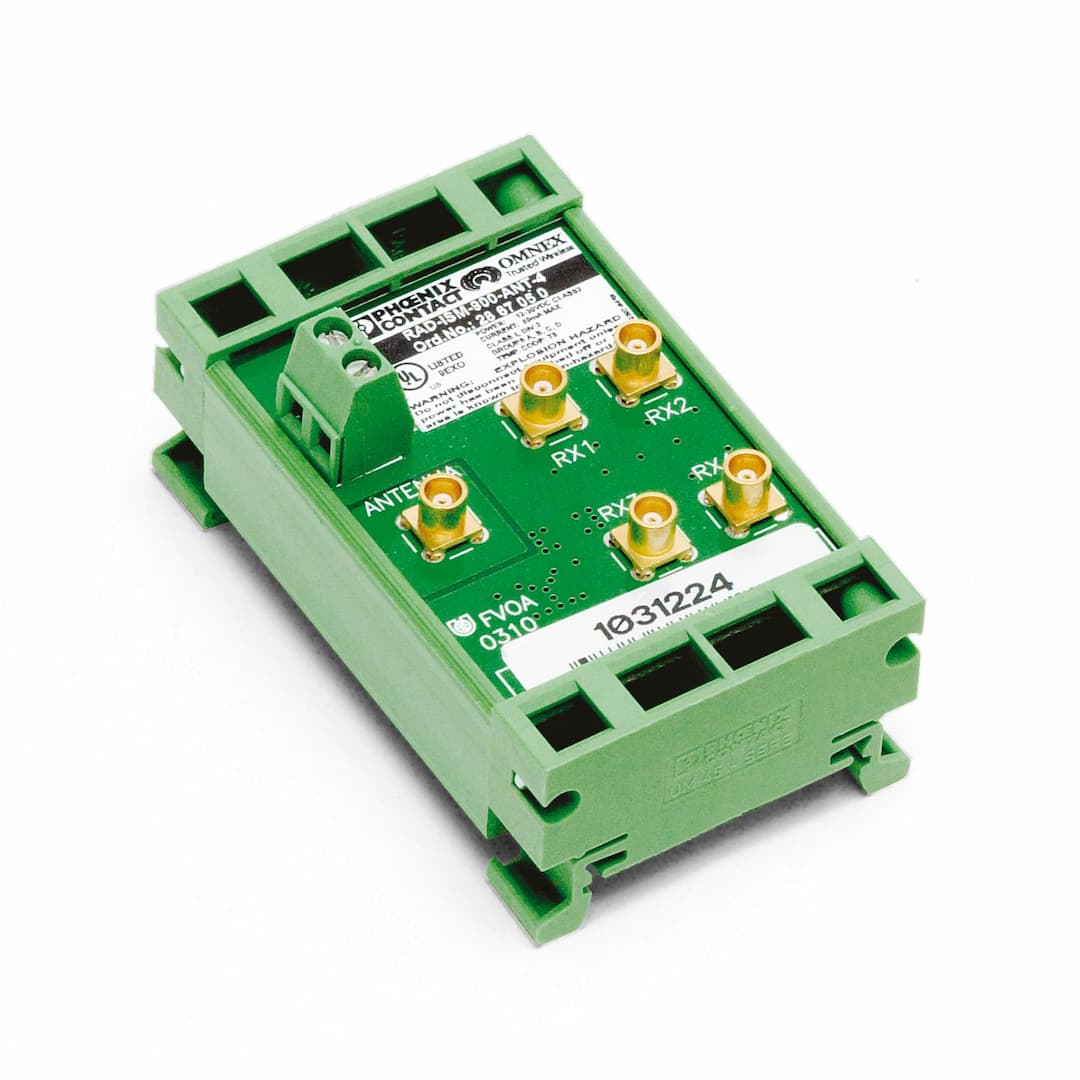

RAD-ISM-900-ANT-4
Key Features
- 1Distributes antenna signals to four separate paths.
- 2MCX connection (female) for easy integration.
- 3Ideal for expanding point-to-multipoint connections and repeater circuits.
- 4Supports 900 MHz bidirectional wireless transmission systems.
- 5Compatible with various Phoenix Contact wireless modules.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Coaxial adapter | Impedance | 50 Ω |
| Connection method | Type MCX (female) | Width | 46 mm |
| Length | 74 mm | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C | Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting position | any |
Specifications may be subject to change without notice
