Product Model

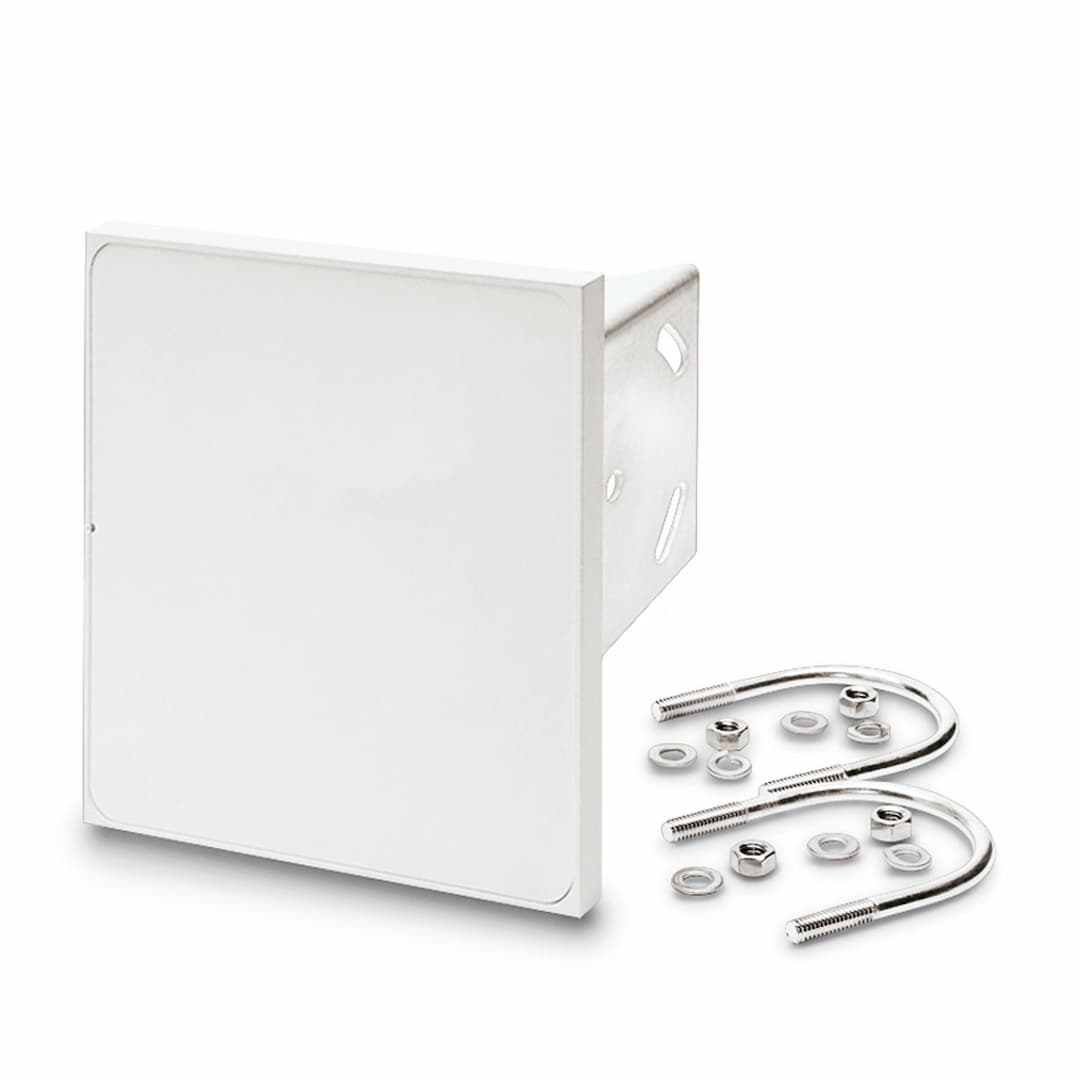

RAD-ISM-5000-ANT-PAR-18-N
Key Features
- No key features available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Antenna | Gain | 18 dBi |
| Vertical beamwidth | 18 ° | Horizontal beamwidth | 18 ° |
| Polarization | Linear vertical | Frequency band | 5 GHz |
| Frequency range | 5.25 GHz ... 5.85 GHz | Impedance | 50 Ω |
| Connection method | N (female) | Outside diameter | 51 mm ... 64 mm (Mast) |
| Width | 152.4 mm | Height | 152.4 mm |
| Outside diameter | 51 mm ... 64 mm (Mast) | Material | V2A
V2A |
| Connecting cable | no | Degree of protection | IP55 |
| Ambient temperature (operation) | -40 °C ... 70 °C | Mounting type | Mast mounting |
Specifications may be subject to change without notice
