Product Model

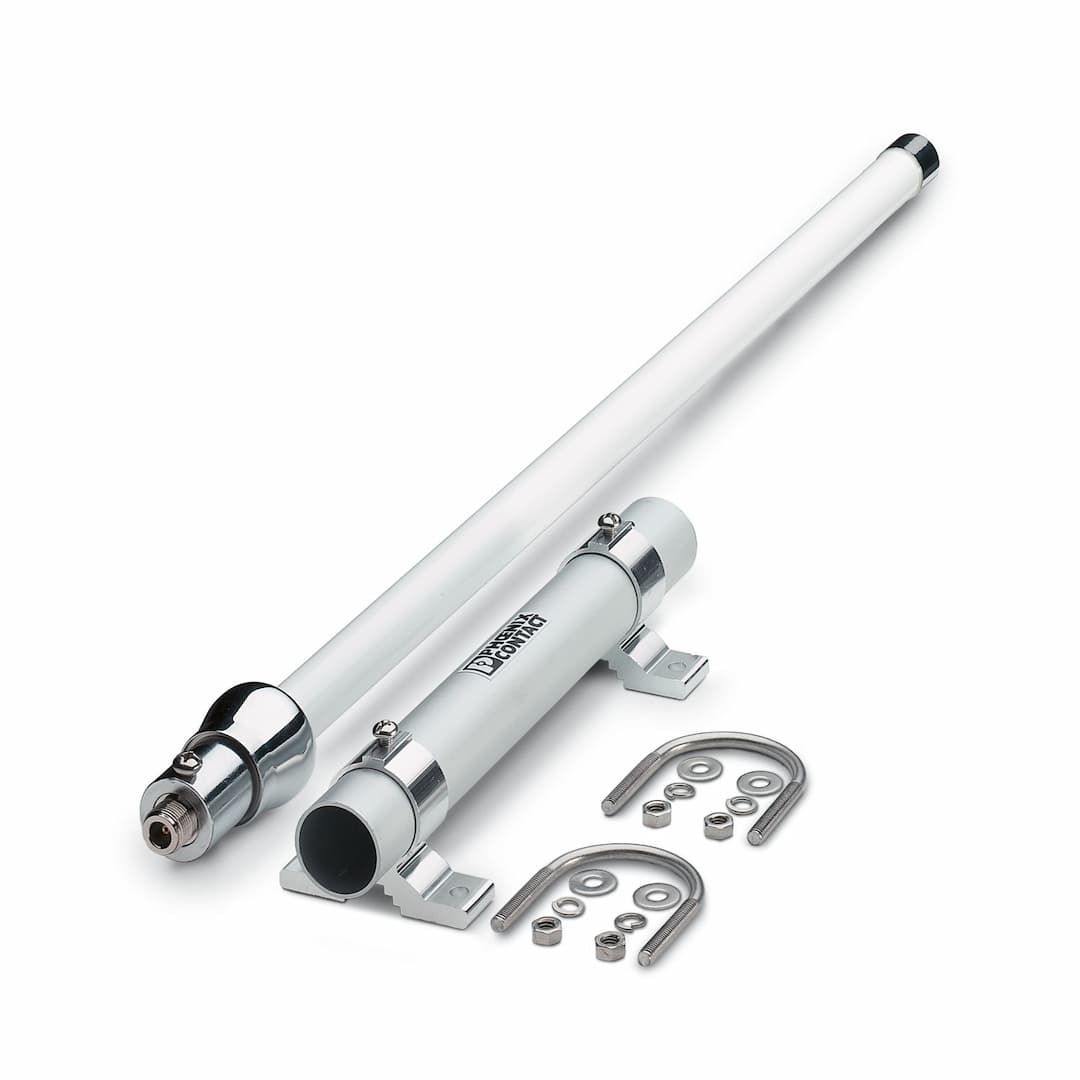

RAD-ISM-2400-ANT-OMNI-9-0
Key Features
- 1High-Gain Performance: 9 dBi gain for enhanced signal strength.
- 2Omnidirectional Coverage: 360° horizontal and 15° vertical beamwidth.
- 3Robust Construction: Fiberglass-reinforced plastic with IP65 protection.
- 4Versatile Mounting: Mast mounting or wall mounting options available.
- 5Industrial-Grade Quality: Designed for medium distances and freely mobile applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Antenna |
| Gain | 9 dBi | Vertical beamwidth | 15 ° |
| Horizontal beamwidth | 360 ° | Polarization | Linear vertical |
| Frequency band | 2.4 GHz | Frequency range | 2.4 GHz ... 2.5 GHz |
| Impedance | 50 Ω | Connection method | N (female) |
| Outside diameter | 28 mm ... 47 mm (Mast) | Width | 25 mm |
| Height | 625 mm | Outside diameter | 28 mm ... 47 mm (Mast) |
| Material | Fiberglass-reinforced plastic
Aluminum
V2A | Connecting cable | no |
| Degree of protection | IP65 | Ambient temperature (operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C | Mounting type | Wall mounting
Mast mounting |
Specifications may be subject to change without notice
