Product Model

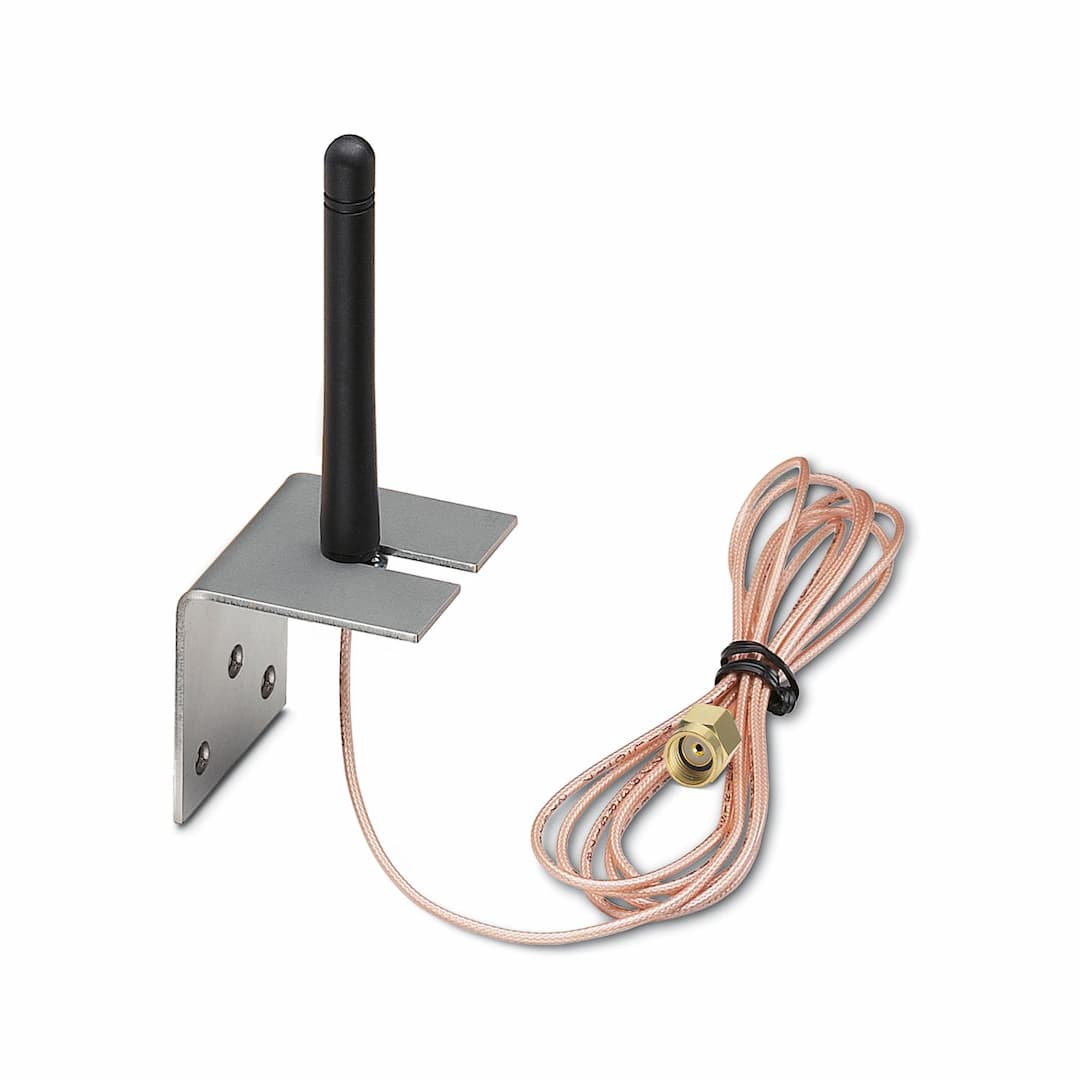

RAD-ISM-2400-ANT-OMNI-2-1-RSMA
Key Features
- 1Omnidirectional coverage with a horizontal beamwidth of 360° and vertical beamwidth of 75°.
- 2IP65 degree of protection for harsh environments.
- 3Includes a 1.5 m connecting cable and mounting bracket for wall mounting.
- 4Compatible with RSMA (male) connectors.
- 5Dimensions of 7.8 mm width and 82.5 mm height.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Antenna |
| Radiation characteristics | Omnidirectional | Gain | 2 dBi |
| Vertical beamwidth | 75 ° | Horizontal beamwidth | 360 ° |
| Polarization | Linear vertical | Frequency band | 2.4 GHz |
| Frequency range | 2.4 GHz ... 2.5 GHz | Impedance | 50 Ω |
| Maximum capacity | 1.00 W | Connection method | RSMA (male) |
| Height | 82.5 mm | Diameter | 7.8 mm |
| Material | Polyurethane
Polycarbonate PC
V2A | Outer sheath, material | Fluorinated ethylene propylene (FEP) |
| Cable length | 1.50 m | Connecting cable | yes |
| External cable diameter | 2.50 mm | Outer sheath, material | Fluorinated ethylene propylene (FEP) |
| Smallest bending radius, fixed installation | 25.4 mm | Degree of protection | IP65 |
| Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -30 °C ... 75 °C |
| Mounting type | Wall mounting | Assembly note | Outdoors and indoors |
Specifications may be subject to change without notice
