Product Model

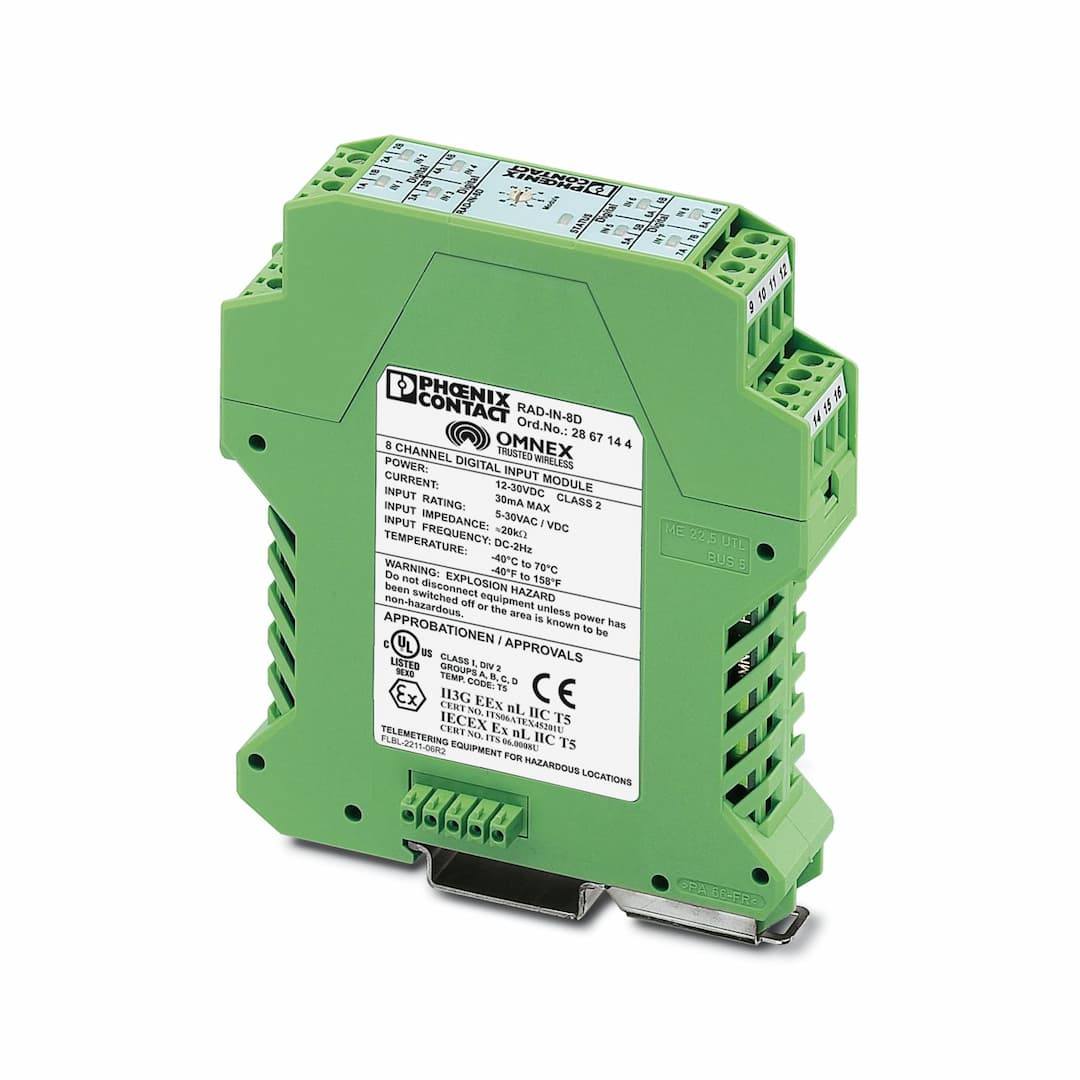

RAD-IN-8D
Key Features
- 1Eight-channel digital input module with input voltage range of 5-36 V AC/DC.
- 2Compact design suitable for various industrial applications.
- 3Easy screw connection method for quick installation.
- 4High reliability and durability in harsh environments.
- 5Compatible with a wide range of industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Extension module | Maximum power dissipation for nominal condition | 0.72 W |
| Connection method | Screw connection | Supply voltage range | 9 V DC ... 30 V DC (via bus foot) |
| Typical current consumption | 25 mA | Max. current consumption | 30 mA |
| Input voltage range | 5 V AC/DC ... 30 V AC/DC | Switching threshold "0" signal, voltage | max. 1.5 V DC |
| Switching threshold "1" signal voltage | min. 5 V DC | Description of the input | Voltage input |
| Number of inputs | 8 | Voltage input signal | 5 V AC/DC ... 30 V AC/DC |
| Input frequency | max. 1 Hz | Load/output load current output | at U |
| Connection method | Screw connection | Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Cross section AWG | 24 ... 14 | Screw thread | M3 |
| Width | 22.5 mm | Height | 99 mm |
| Depth | 114.5 mm | Color (Housing) | green (RAL 6021) |
| Material (Housing) | Polyamide | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 65 °C
-4 °F ... 149 °F | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Certificate | CE-compliant | Identification | Class I, Div. 2, Groups A, B, C, D |
| Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 | Mounting position | any |
Specifications may be subject to change without notice
