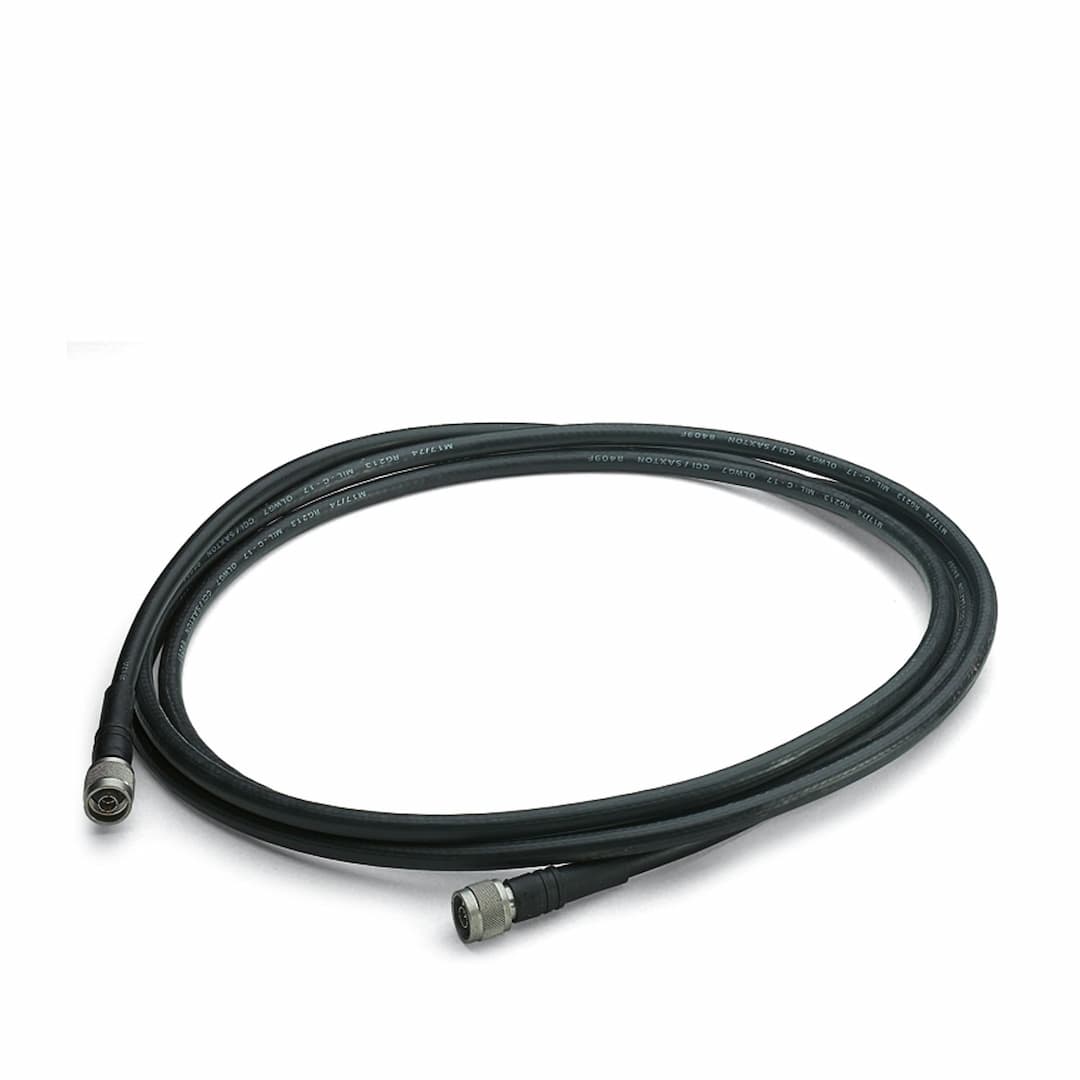

Product Model
RAD-CAB-RG213-50
Key Features
- 1UV Resistant and Outdoor Installation Ready: Designed for long-term outdoor use with UV-resistant materials.
- 2Commercial Grade: Suitable for commercial applications with high-quality construction.
- 315m Length: Provides ample connectivity with a 15-meter cable length.
- 4RG-213U Cable Type: High-performance coaxial cable with low attenuation.
- 5N (Male) Connectors: Easy connection with N (male) connectors on both ends.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Coaxial cable |
| Frequency range | 0.1 GHz ... 1 GHz | Impedance | 50 Ω |
| Connection method | N (male) | Notes | Both sides |
| Connection method | N (male) | Outer sheath, material | PE |
| Cable length | 15 m | Cable type | RG-213U |
| External cable diameter | 10.00 mm | Outer sheath, material | PE |
| External sheath, color | black | Bending radius, long-term | 127.00 mm |
| 868 / 900 MHz | 3.55 dB | Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Specifications may be subject to change without notice
