Product Model

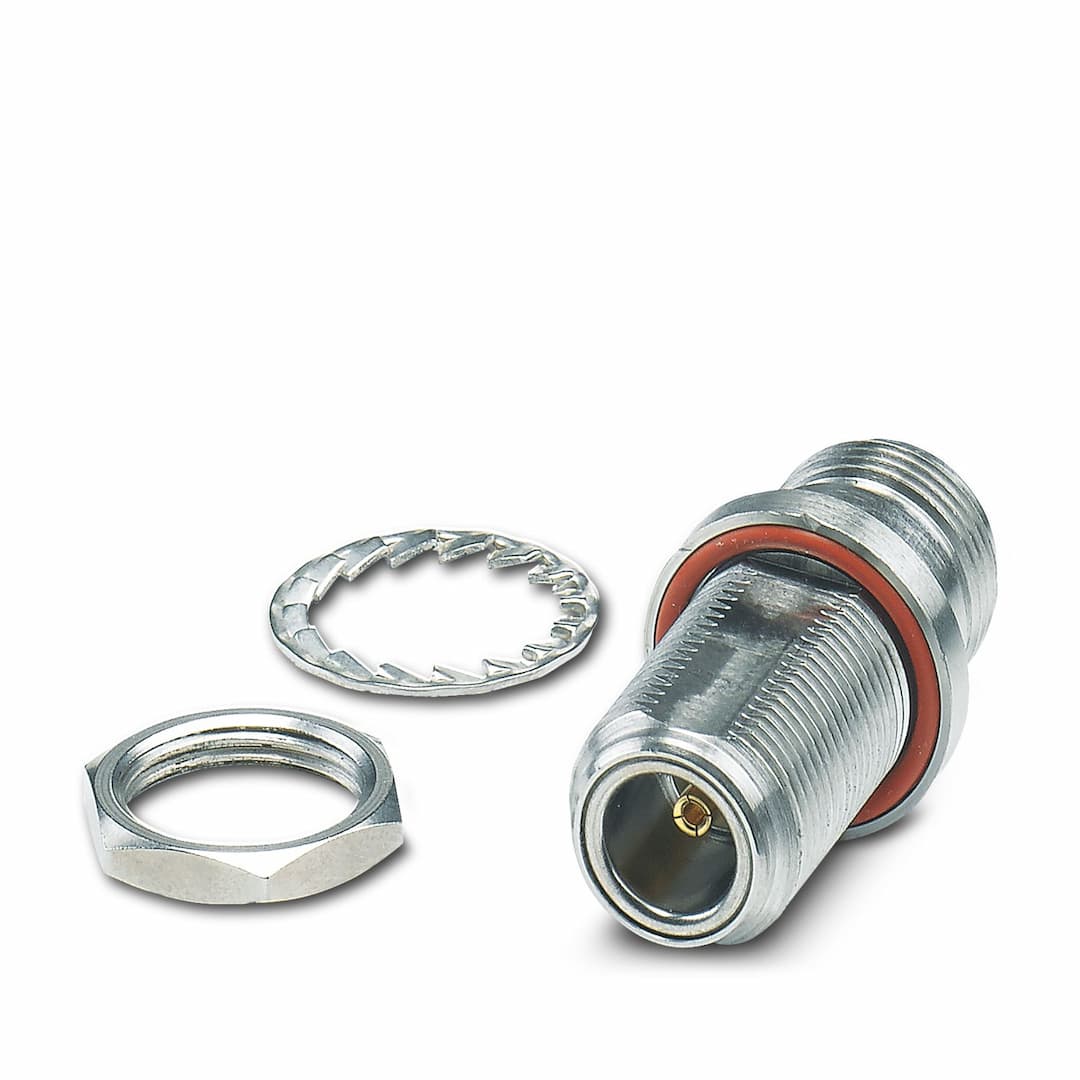

RAD-ADP-N/F-N/F
Key Features
- 1Space-saving design for compact installations.
- 2Easy installation with system-conforming connection technology.
- 3Adapts between antenna cables for seamless connectivity.
- 4Ideal for home automation and networking applications.
- 530-day return policy for hassle-free purchasing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Coaxial adapter |
| Frequency range | 0.3 GHz ... 6 GHz | Impedance | 50 Ω |
| Connection method | N (female) | Width | 38 mm |
| Diameter | 16.5 mm | Hole diameter | 16.1 mm |
| Housing material | Brass (CuZn) | Degree of protection | IP65 (when installed) |
| Ambient temperature (operation) | -65 °C ... 165 °C | Ambient temperature (storage/transport) | -65 °C ... 165 °C |
| Assembly note | Outdoors and indoors
Connection-specific attachment plug |
Specifications may be subject to change without notice
