Product Model

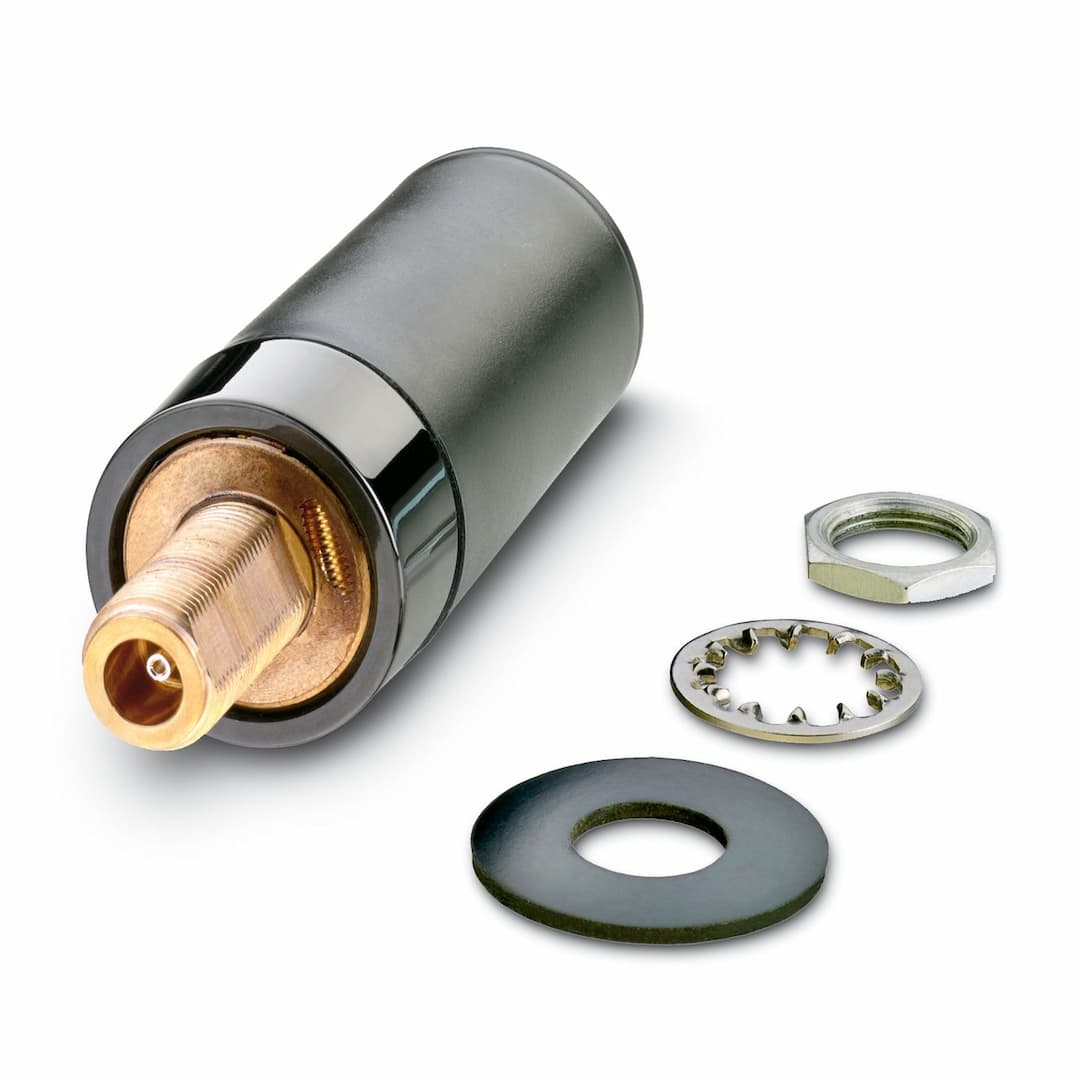

RAD-900-ANT-OMNI-2-N
Key Features
- 12 dBi gain ensures reliable signal transmission.
- 2360° horizontal and 50° vertical opening angle for comprehensive coverage.
- 3Ensures stable and efficient signal reception.
- 4Durable and resistant to harsh environments.
- 5Easy integration into control cabinet systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Antenna |
| Gain | 2.15 dBi | Vertical beamwidth | 50 ° |
| Horizontal beamwidth | 360 ° | Polarization | Linear vertical |
| Article revision | 00 | Frequency band | 900 MHz |
| Frequency range | 868 MHz ... 960 MHz | Impedance | 50 Ω |
| Connection method | N (female) | Height | 84 mm |
| Diameter | 36 mm | Material | Xenoy 5720U-7014 |
| Connecting cable | no | Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Mounting type | Control cabinet | Assembly note | Optional wall mounting |
Specifications may be subject to change without notice
