Product Model

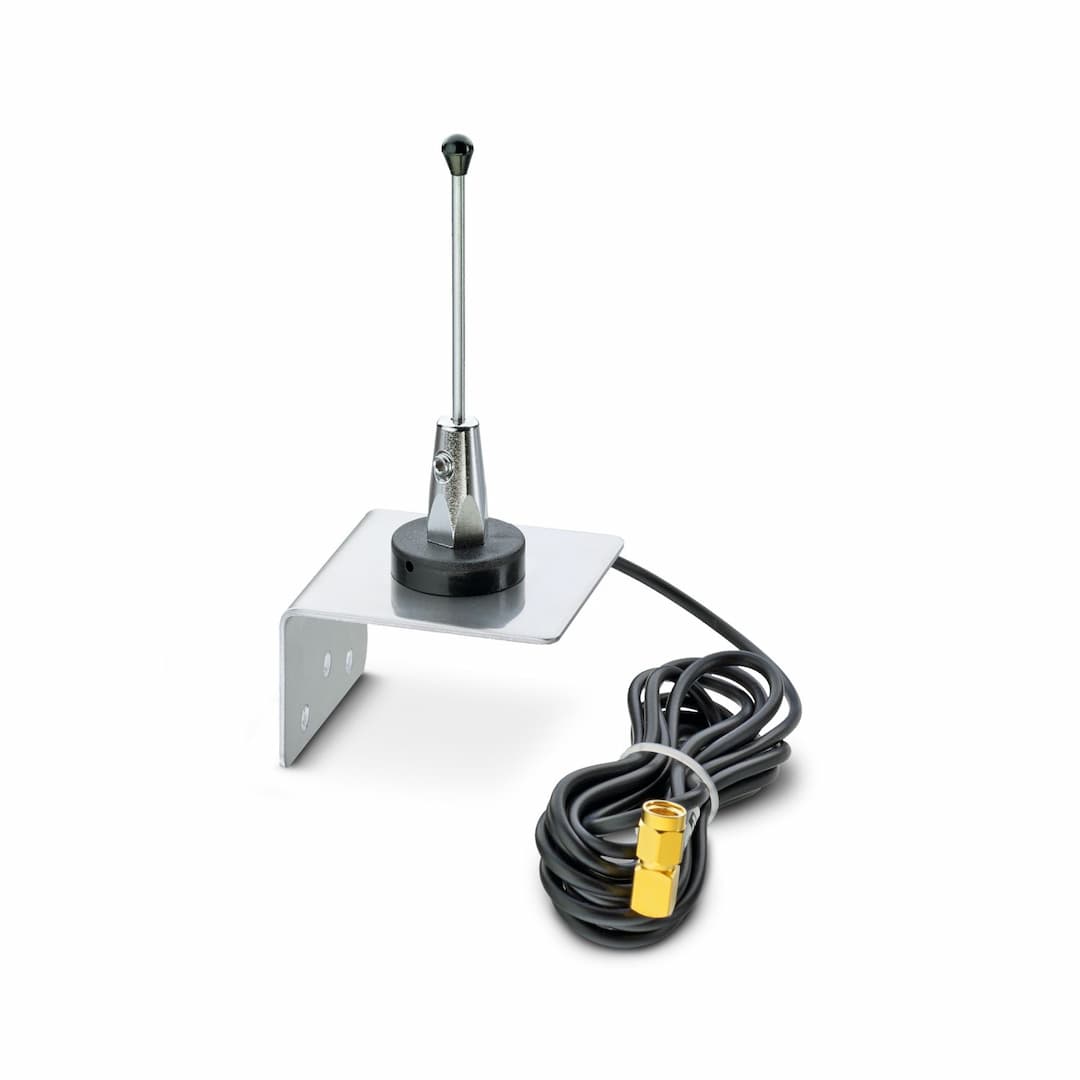

RAD-900-ANT-OMNI-2-2-RSMA
Key Features
- 1Provides 360° horizontal beamwidth for comprehensive coverage.
- 2Ensures reliable signal transmission with linear vertical polarization.
- 3Designed for harsh environments with an IP65 rating, ensuring durability.
- 4Includes a mounting bracket for easy wall installation.
- 5Features a male RSMA connector for secure and reliable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Antenna |
| Gain | 2.15 dBi | Vertical beamwidth | N/A |
| Horizontal beamwidth | 360 ° | Polarization | Linear vertical |
| Frequency band | 900 MHz | Frequency range | 900 MHz |
| Impedance | 50 Ω | Connection method | RSMA (male) |
| Width | 0.3 cm | Height | 8.9 cm |
| Material | V2A
V2A | Connecting cable | yes |
| Degree of protection | IP65 | Ambient temperature (operation) | -40 °C ... 75 °C |
| Mounting type | Wall mounting |
Specifications may be subject to change without notice
