Product Model

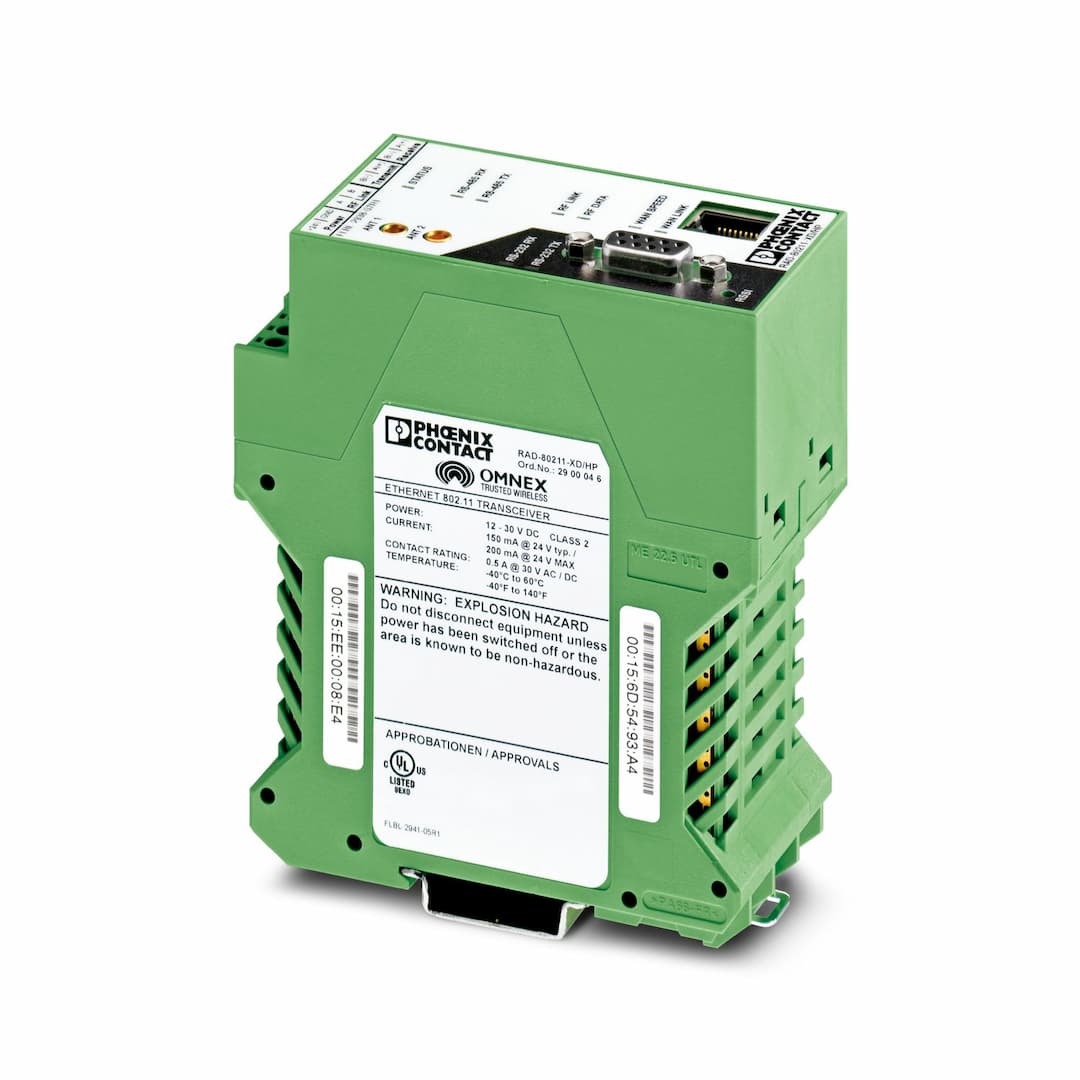

RAD-80211-XD/HP
Key Features
- 1High-power WLAN transceiver with 400 mW transmission power.
- 2Supports up to 40 nodes in a single mesh network for reliable wireless communication.
- 3Integrated web browser interface for easy configuration as an access point, bridge, or client.
- 4Secure data transmission with 128-bit AES encryption and optional 802.1x authentication.
- 5Compatible with legacy serial devices via RS-232, RS-422, and RS-485 interfaces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Wireless module | Supply voltage | 24 V DC |
| Supply voltage range | 12 V DC ... 30 V DC | Typical current consumption | 230 mA |
| Max. current consumption | 280 mA | Connection method | Screw connection |
| Stripping length | 8 mm | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 14 |
| Screw thread | M3 | Data rate | 300 ... 57,6 kBit/s |
| Connection method | D-SUB-9 female connector | File format/coding | Asynchronous |
| Data flow control/protocols | RTS/CTS | Data rate | 300 ... 57,6 kBit/s |
| Connection method | COMBICON plug-in screw terminal block | Direction | Bi-directional |
| Frequency | 2.4 GHz | Frequency range | 2.4032 GHz ... 2.4799 GHz |
| Transmission power | 400 mW | Antenna connection method | MCX (female) |
| Frequency band | 2.4 GHz
5 GHz | Wireless standard | IEEE 802.11
a
b
g |
| Width | 45 mm | Height | 99 mm |
| Depth | 115 mm | Color | green |
| Housing material | Polyamide PA non-reinforced | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Conformance | FCC Directive, Part 15.247
ISC Directive RSS 210 | UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D |
| Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 | Mounting position | any |
Specifications may be subject to change without notice
