Product Model

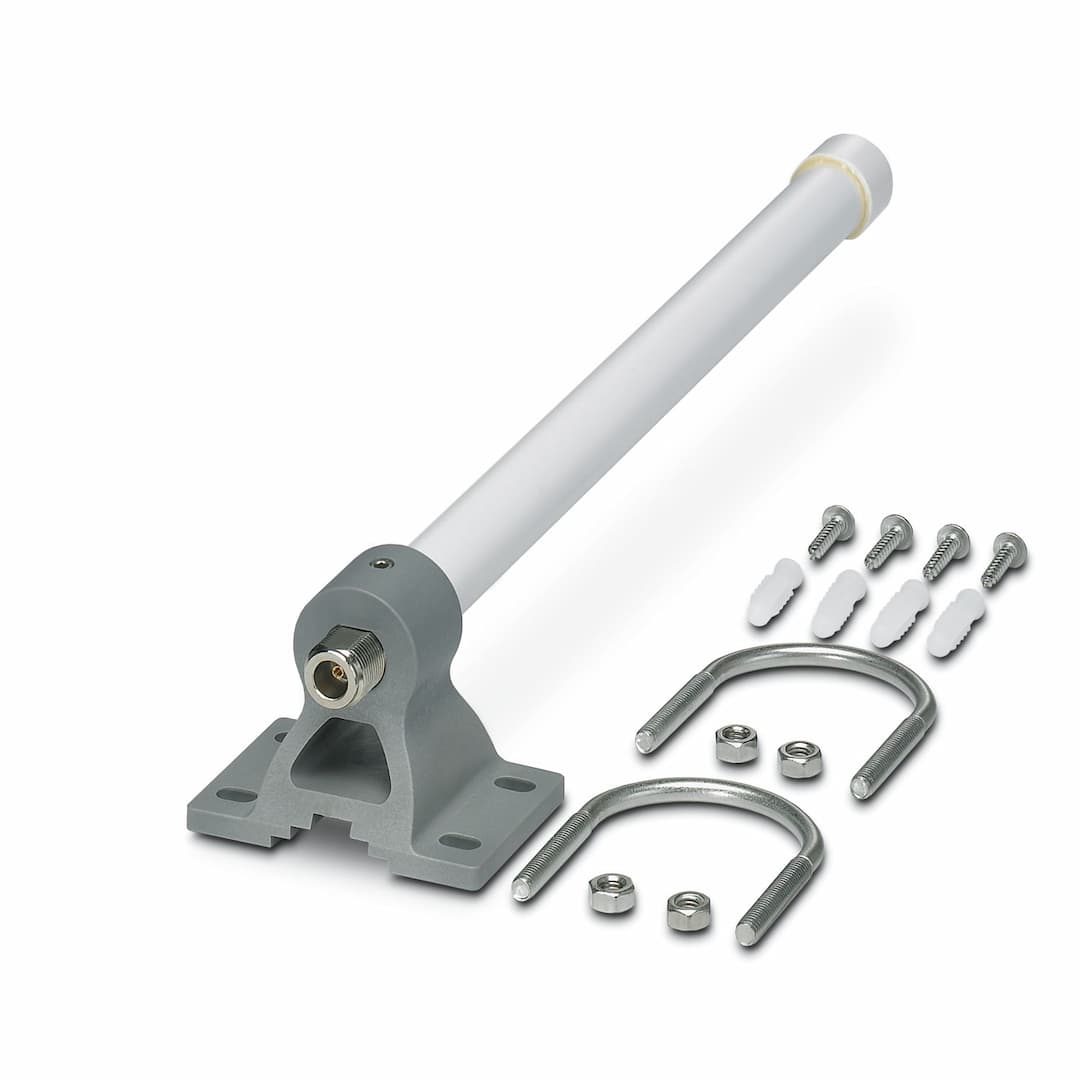

RAD-2400-ANT-OMNI-6-0-SW
Key Features
- 1IP67 Rating for Harsh Environments: Designed to withstand extreme conditions, including saltwater and explosive areas.
- 26 dBi Gain for Reliable Signal Strength: Ensures consistent and strong wireless signals in various applications.
- 3Linear Polarization for Efficient Transmission: Optimizes signal transmission and reception in multiple directions.
- 4N (Female) Connection for Easy Installation: Simplifies antenna setup with a standard N connector.
- 5ATEX and IECEx Approval for Safety: Meets stringent safety standards for use in potentially explosive environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Antenna | Gain | 6 dBi |
| Vertical beamwidth | 20 ° | Horizontal beamwidth | 360 ° |
| Polarization | Linear vertical | Frequency band | 2.4 GHz |
| Frequency range | 2.4 GHz ... 2.5 GHz | Impedance | 50 Ω |
| Maximum capacity | 15.00 W | Connection method | N (female) |
| Outside diameter | 30 mm ... 45 mm (Mast) | Height | 330 mm |
| Diameter | 20 mm | Outside diameter | 30 mm ... 45 mm (Mast) |
| Material | Fiberglass-reinforced plastic
Fiberglass-reinforced plastic
V2A | Connecting cable | no |
| Degree of protection | IP65 | Ambient temperature (operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Mounting type | Mast mounting or wall mounting |
Specifications may be subject to change without notice
