Product Model

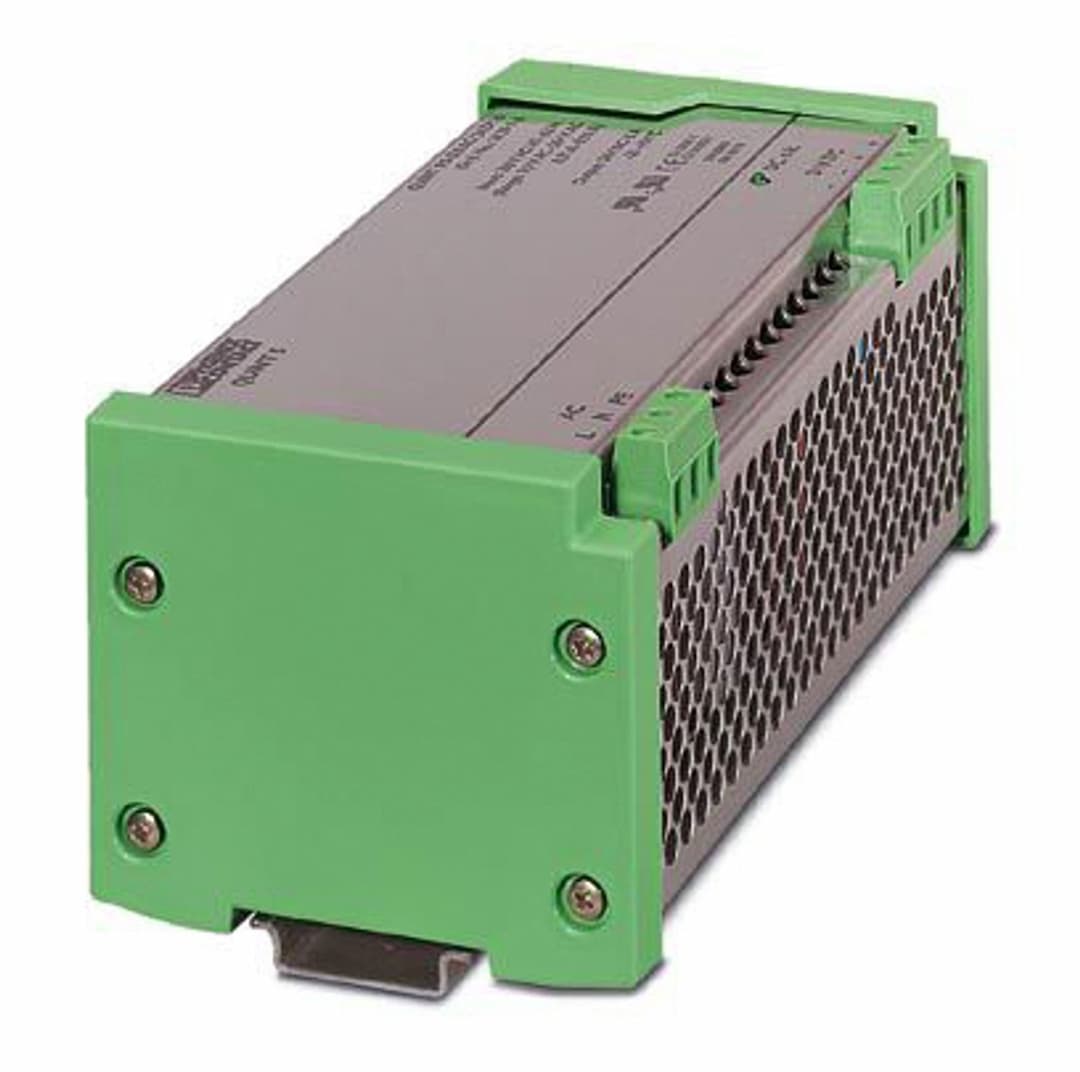

QUINT-PS-230AC/24DC/ 5
Key Features
- 1Exceeds 86% efficiency for optimal power utilization.
- 2Built to withstand harsh industrial environments with IP20 protection.
- 3Operates within 187 V AC to 264 V AC frequency range of 47 Hz to 63 Hz.
- 4Compatible with parallel connections for increased system reliability.
- 5Meets or exceeds 500,000 hours Mean Time Between Failures (MTBF) according to SN 29500 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | 230 V AC | Input voltage range | 187 V AC ... 264 V AC |
| Input voltage range AC | 187 V AC ... 264 V AC | Inrush current | < 12 A (at 25 °C) |
| AC frequency range | 47 Hz ... 63 Hz | Mains buffering time | > 20 ms |
| Current consumption | approx. 0.8 A | Input fuse | 4 A (slow-blow, soldered internally) |
| Efficiency | > 86 % | Nominal output voltage | 24 V DC ±1.5 % (typical) |
| Setting range of the output voltage (U | fixed voltage | Nominal output current (I | 5 A |
| Residual ripple | 150 mV | Peak switching voltages idling | 100 mV |
| Maximum no-load power dissipation | < 4 W | Power loss nominal load max. | < 20 W |
| Connection in parallel | yes, for assembling redundant systems and increasing efficiency | Connection method | Pluggable screw connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm | Screw thread | M2,5 |
| Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 | Stripping length | 8 mm |
| Screw thread | M2,5 | Operating voltage display | LED |
| Insulation voltage input/output | 1.8 kV (routine test)
3 kV (type test) | Product type | Power supply |
| MTBF (IEC 61709, SN 29500) | > 500000 h | Width | 180 mm |
| Height | 78 mm | Depth | 87 mm |
| Assembly note | alignable: vertical with spacing = 10 cm, horizontal with zero spacing | Mounting position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
| Housing material | Metal | Type of housing | High-grade steel plate, enclosed |
| Side element version | ABS V0, color: green | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 70 °C (UL up to 50°C) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | up to 95 % (at 25 °C, non-condensing) | Standard - Electrical safety | EN 60950/VDE 0805-1
DIN EN 50178/VDE 0160
UL 508C
CSA C22.2-14
UL 1950
CSA C22.2-950
DIN VDE 0100-410
DIN VDE 0106-101 |
| Standard - Safe isolation | DIN VDE 0100-410
DIN VDE 0106-101 |
Specifications may be subject to change without notice
