Product Model

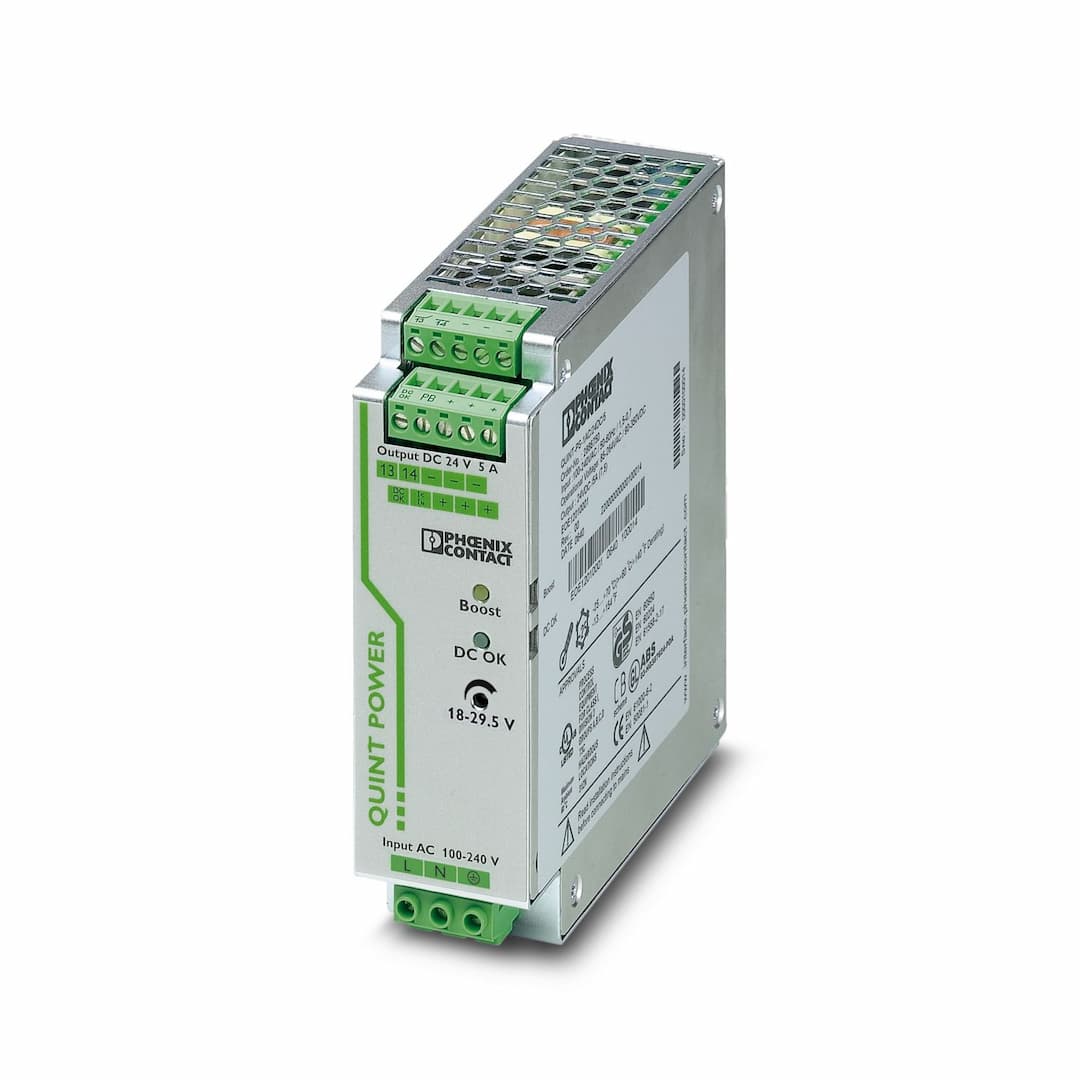

QUINT-PS/1AC/24DC/ 5
Key Features
- 1The static POWER BOOST power reserve ensures reliable starting of heavy loads with up to 1.5 times the nominal current permanently.
- 2Dynamic power reserve SFB technology trips standard circuit breakers up to 6 times the nominal current for 12 ms.
- 3Preventive function monitoring ensures high system availability by reporting critical operating states before errors occur.
- 4The dip-coated protective coating provides 100% humidity protection, ensuring optimal protection in harsh environments.
- 5The power supply offers >90% efficiency and supports connection in parallel for redundancy and increased capacity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Supply system configuration | Star network | Nominal input voltage range | 100 V AC ... 240 V AC |
| Input voltage range | 85 V AC ... 264 V AC
110 V DC ... 350 V DC (typ. 90 V DC (UL 508: ≤ 300 V DC)) | Electric strength, max. | 300 V AC |
| Voltage type of supply voltage | AC/DC | Inrush current | < 15 A |
| Inrush current integral (I | < 1 A | AC frequency range | 45 Hz ... 65 Hz |
| Frequency range DC | 0 Hz | Mains buffering time | > 55 ms (120 V AC)
> 55 ms (230 V AC) |
| Current consumption | 1.2 A (120 V AC)
0.6 A (230 V AC)
1.3 A (110 V DC)
0.6 A (220 V DC) | Nominal power consumption | 145 VA |
| Protective circuit | Transient surge protection; Varistor | Power factor (cos phi) | 0.94 |
| Typical response time | < 0.15 s | Input fuse | 5 A (slow-blow, internal) |
| Permissible backup fuse | B6 B10 B16 AC: | Permissible DC backup fuse | DC: Connect a suitable fuse upstream |
| Recommended breaker for input protection | 6 A ... 16 A (AC: Characteristics B, C, D, K) | Discharge current to PE | < 3.5 mA |
| Efficiency | > 90 % (for 230 V AC and nominal values) | Output characteristic | U/I |
| Nominal output voltage | 24 V DC ±1 % | Setting range of the output voltage (U | 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted) |
| Nominal output current (I | 5 A (-25 °C ... 60 °C, U | POWER BOOST (I | 7.5 A (-25 °C ... 40 °C permanent, U |
| Selective Fuse Breaking (I | 30 A (12 ms) | Magnetic circuit breaker tripping | B2 / B4 / C2 |
| Derating | 60 °C ... 70 °C (2.5 %/K) | Feedback voltage resistance | ≤ 35 V DC |
| Protection against overvoltage at the output (OVP) | < 35 V DC | Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) |
| Residual ripple | < 40 mV | Output power | 120 W |
| Maximum no-load power dissipation | 3 W | Power loss nominal load max. | 15 W |
| Rise time | < 0.1 s (U | Connection in parallel | yes, for redundancy and increased capacity |
| Connection in series | yes | Output description | U |
| Switching voltage range | 18 V DC ... 24 V DC | Maximum inrush current | ≤ 20 mA (short-circuit-proof) |
| Continuous load current | ≤ 20 mA | Output description | Relay contact, U |
| Maximum switching voltage | 30 V AC
24 V DC | Maximum inrush current | 0.5 A
1 A |
| Continuous load current | ≤ 1 A | Output description | I |
| Switching voltage range | 18 V DC ... 24 V DC | Output voltage | + 24 V DC |
| Maximum inrush current | 20 mA (short-circuit-proof) | Continuous load current | ≤ 20 mA |
| Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
| Screw thread | M3 | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Connection method | Pluggable screw connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 20 | Conductor cross section AWG max. | 12 |
| Stripping length | 7 mm | Screw thread | M3 |
| Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
| Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 12 | Screw thread | M3 |
| Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
| Types of signaling | LED
Active switching output
Relay contact | Status display | U |
| Note on status display | U
I | Status display | U |
| Note on status display | U | Status display | I |
| Number of phases | 1.00 | Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) |
| Insulation voltage output / PE | 500 V DC (routine test) | Insulation voltage input / PE | 3.5 kV AC (type test)
2 kV AC (routine test) |
| Product type | Power supply | Product family | QUINT POWER |
| MTBF (IEC 61709, SN 29500) | > 1134000 h (25 °C)
> 635000 h (40 °C)
> 270000 h (60 °C) | Article revision | 09 |
| Protection class | I | Degree of pollution | 2 |
| Width | 40 mm | Height | 130 mm |
| Depth | 125 mm | Width | 122 mm |
| Height | 130 mm | Depth | 43 mm |
| Mounting type | DIN rail mounting | Assembly note | alignable: P |
| Mounting position | horizontal DIN rail NS 35, EN 60715 | With protective coating | no |
| Housing material | Metal | Hood version | Galvanized sheet steel, free from chrome (VI) |
| Side element version | Aluminum | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | 5000 m |
| Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. |
| Temp code | T4 (-25 ... +60 °C) | Rail applications | EN 50121-4
EN 50121-3-2 |
| HART FSK Physical Layer Test Specification Compliance | Output voltage U | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
| Standard - Electrical safety | IEC 61010-2-201 (SELV) | Standard - Equipment safety | BG (design tested) |
| Standard - Approval for medical use | IEC 60601-1, 2 x MOOP | Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) |
| Standard - Safe isolation | IEC 61010-2-201 | Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 |
| Approval - requirement of the semiconductor industry with regard to mains voltage dips | SEMI F47-0706 Compliance Certificate | DeviceNet approval | DeviceNet™ Power Supply Conformance Tested |
| EN 62477-1 | III | CSA | CAN/CSA-C22.2 No. 60950-1-07
CSA-C22.2 No. 107.1-01 |
| Shipbuilding approval | DNV GL (EMC A), ABS, LR, RINA, NK, BV | SIQ | BG (type approved) |
| UL approvals | UL Listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) | DeviceNet approval | DeviceNet™ Power Supply Conformance Tested |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
| Noise emission | EN 55011 (EN 55022) | Standards/regulations | EN 61000-4-2 |
| Contact discharge | 8 kV (Test Level 4) | Discharge in air | 15 kV (Test Level 4) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 1 GHz | Test field strength | 20 V/m (Test Level 3) |
| Frequency range | 1 GHz ... 2 GHz | Test field strength | 10 V/m (Test Level 3) |
| Frequency range | 2 GHz ... 3 GHz | Test field strength | 10 V/m (Test Level 3) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
| Input | 4 kV (Test Level 4 - asymmetrical) | Output | 2 kV (Test Level 3 - asymmetrical) |
| Signal | 2 kV (Test Level 4 - asymmetrical) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-5 | Input | 1 kV (Test Level 2 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
| Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) | Signal | 1 kV (Test Level 2 - asymmetrical) |
| Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
| I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
| Comments | Criterion A | Voltage | 10 V (Test Level 3) |
| Standards/regulations | EN 61000-6-3 | Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
| Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
