Product Model

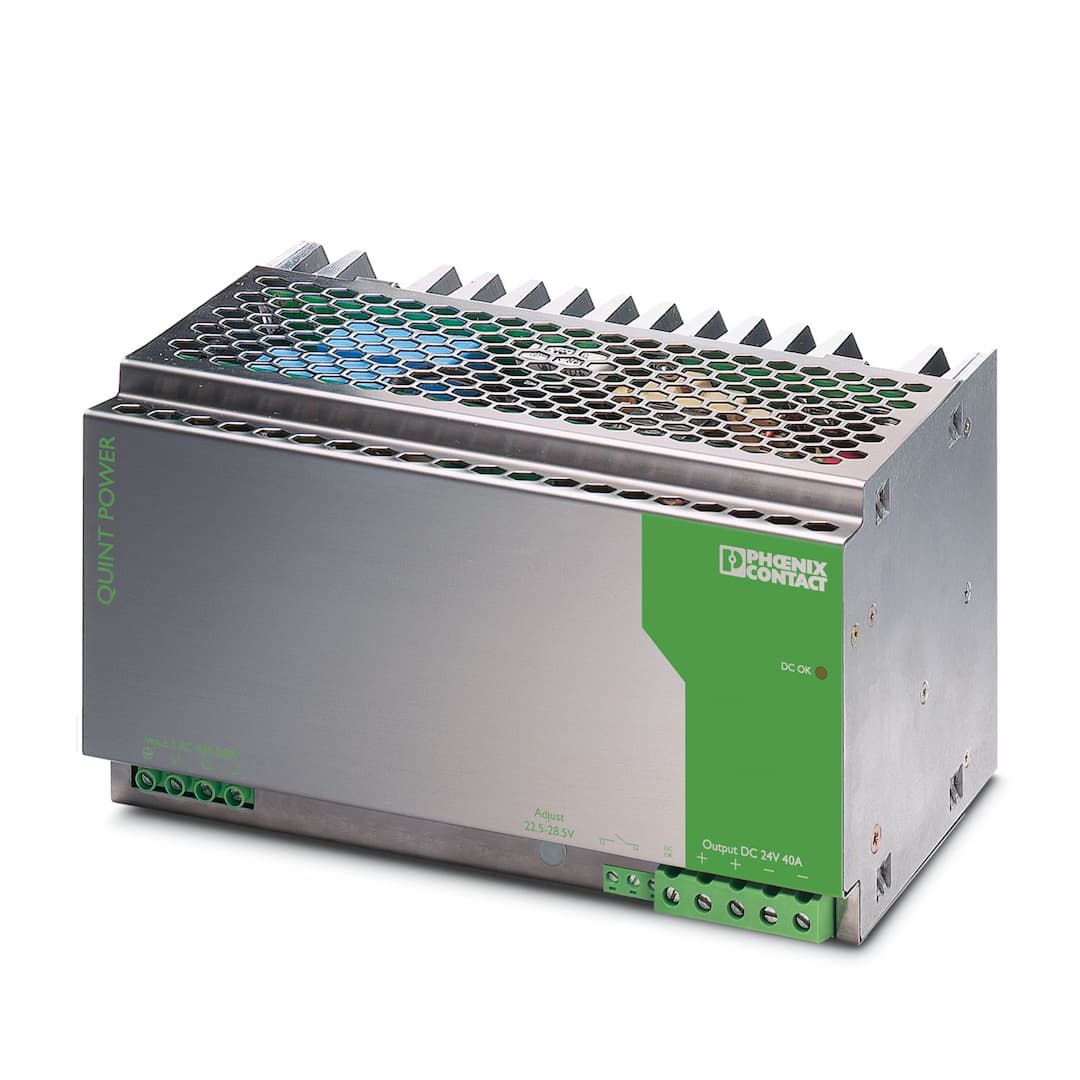

QUINT-PS-100-240AC/48DC/20
Key Features
- 1Wide-range input voltage (110V AC - 240V AC) for versatile applications.
- 2High efficiency (>92%) and reliable operation with generous capacitors.
- 3DIN rail mounting for easy installation and space-saving design.
- 4Single-phase and three-phase versions available for flexible use.
- 5Advanced transient surge protection and robust insulation for safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal input voltage range | 110 V AC ... 240 V AC (Derating < 100 V AC; 2.5 %/V) | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 350 V DC |
| Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 350 V DC |
| Voltage type of supply voltage | AC/DC | Inrush current | < 15 A (typical) |
| Inrush current integral (I | 3.2 A | AC frequency range | 45 Hz ... 65 Hz |
| Frequency range DC | 0 Hz | Mains buffering time | > 20 ms (120 V AC)
> 20 ms (230 V AC) |
| Current consumption | approx. 11 A (120 V AC)
4.5 A (230 V AC) | Nominal power consumption | 1048 W |
| Protective circuit | Transient surge protection; Varistor | Typical response time | < 1 s |
| Input fuse | 20 A (fast blow, internal) | Recommended breaker for input protection | 16 A ... 25 A (Characteristics B, C, D, K) |
| Efficiency | > 92 % (for 230 V AC and nominal values) | Nominal output voltage | 48 V DC ±1 % |
| Setting range of the output voltage (U | 30 V DC ... 56 V DC (> 48 V DC, constant capacity restricted) | Nominal output current (I | 20 A (-25 °C ... 60 °C) |
| POWER BOOST (I | 22.5 A (< 40°C permanent) | Derating | 60 °C ... 70 °C (2.5 %/K) |
| Feedback voltage resistance | 60 V DC | Protection against overvoltage at the output (OVP) | ≤ 60 V DC |
| Max. capacitive load | unlimited | Active current limitation | Approx. I |
| Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) | Residual ripple | < 25 mV |
| Output power | 960 W | Peak switching voltages nominal load | < 30 mV |
| Maximum no-load power dissipation | 28 W | Power loss nominal load max. | 80 W |
| Rise time | < 2 ms (U | Connection in parallel | yes, for redundancy and increased capacity |
| Connection in series | yes | Output description | U |
| Maximum switching voltage | ≤ 24 V | Output voltage | + 24 V DC |
| Maximum inrush current | ≤ 20 mA | Continuous load current | ≤ 20 mA |
| Output description | Relay contact, U | Maximum switching voltage | ≤ 30 V AC/DC |
| Maximum inrush current | ≤ 1 A | Continuous load current | ≤ 1 A |
| Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 4 mm² | Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 10 | Stripping length | 8 mm |
| Screw thread | M3 | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Connection method | Screw connection |
| Conductor cross section, rigid min. | 0.5 mm² | Conductor cross section, rigid max. | 16 mm² |
| Conductor cross section flexible min. | 0.5 mm² | Conductor cross section flexible max. | 10 mm² |
| Conductor cross section AWG min. | 20 | Conductor cross section AWG max. | 6 |
| Stripping length | 10 mm | Screw thread | M4 |
| Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 6 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 4 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 10 |
| Screw thread | M3 | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Types of signaling | LED
Active switching output
Relay contact |
| Operating voltage display | Green LED | Status display | "DC OK" LED green |
| Note on status display | U | Status display | "DC OK" LED green |
| Note on status display | U | Number of phases | 1.00 |
| Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) | Insulation voltage output / PE | 500 V DC |
| Insulation voltage input / PE | 3.5 kV AC (type test)
2 kV AC (routine test) | Product type | Power supply |
| Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 500000 h |
| Protection class | I (with PE connection) | Degree of pollution | 2 |
| Width | 240 mm | Height | 130 mm |
| Depth | 125 mm | Width | 122 mm |
| Height | 130 mm | Depth | 243 mm |
| Assembly note | alignable: horizontally 0 mm, vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Housing material | Metal | Type of housing | AluNox (AlMg1) |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) |
| Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. |
| Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
| Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV)
EN 61558-2-17 | Standard - Equipment safety | GS (tested safety) |
| Standard – Protection against shock currents, basic requirements for protective separation in electrical equipment | EN 50178 | Standard – Safety extra-low voltage | EN 60950-1 (SELV)
EN 60204 (PELV) |
| Standard - Safe isolation | DIN VDE 0100-410 | Standard - Safety of transformers | EN 61558-2-17 |
| EN 62477-1 | III | UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
| Noise emission | EN 55011 (EN 55022) | Standards/regulations | EN 61000-4-2 |
| Housing | Level 4 | Contact discharge | 8 kV |
| Discharge in air | 15 kV | Comments | Criterion B |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 2 GHz |
| Test field strength | 10 V/m | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | 4 kV (level 4 - asymmetrical) |
| Output | 2 kV (Level 3 - asymmetrical) | Signal | 1 kV (Level 2 - asymmetrical) |
| Standards/regulations | EN 61000-4-5 | Input | 4 kV (inst. class 4 - asymmetrical: conductor to ground)
2 kV (Inst. Class 4 – symmetrical: Conductor to ground) |
| Output | 0.5 kV (level 1 - asymmetrical: conductor to ground)
0.5 kV (Level 1 - symmetrical: Conductor to ground) | Signal | 1 kV (level 2 - asymmetrical: conductor to ground) |
| Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
| I/O/S | Level 3 - asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
| Comments | Criterion A | Voltage | 10 V |
| Standards/regulations | EN 61000-4-11 | Standards/regulations | EN 61000-6-3 |
| Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Specifications may be subject to change without notice
