Product Model

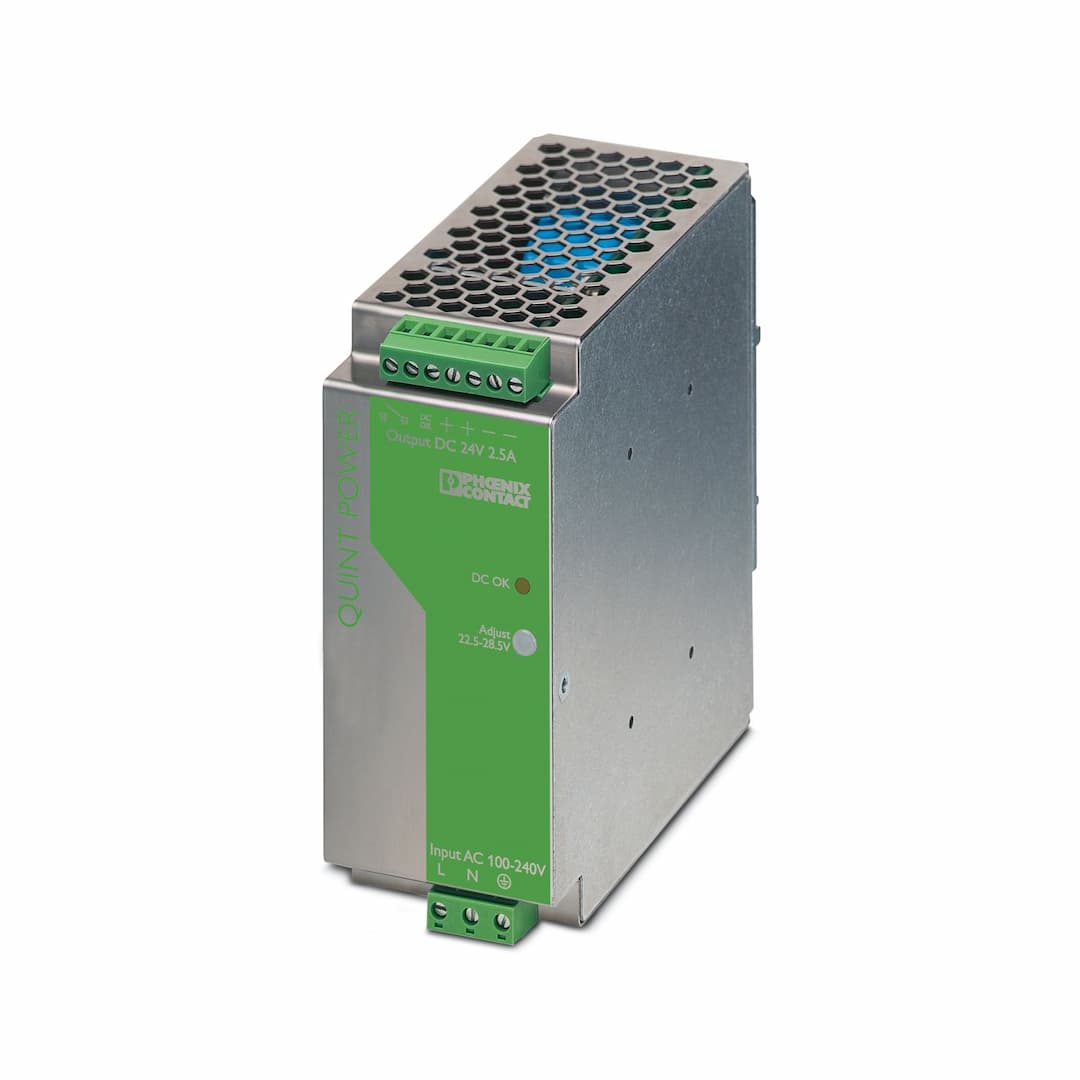

QUINT-PS-100-240AC/24DC/ 2.5
Key Features
- 1Operates on 100-240 V AC input voltage, ensuring flexibility in various environments.
- 2Delivers 24 V DC output with a maximum current of 2.5 A, making it suitable for demanding applications.
- 3Ensures continuous operation and safety with built-in idling and short-circuit protection.
- 4Allows for parallel connection to create redundant systems, enhancing system reliability.
- 5Includes DC OK signal outputs (active and floating) for remote monitoring and preventive function monitoring to diagnose impermissible operating states.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 350 V DC |
| Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 350 V DC |
| Voltage type of supply voltage | AC/DC | Inrush current | < 20 A (typical) |
| Inrush current integral (I | < 2.2 A | AC frequency range | 45 Hz ... 65 Hz |
| Frequency range DC | 0 Hz | Mains buffering time | > 30 ms (120 V AC)
> 130 ms (230 V AC) |
| Current consumption | approx. 0.86 A (120 V AC)
approx. 0.47 A (230 V AC) | Nominal power consumption | 67 W |
| Protective circuit | Transient surge protection; Varistor | Typical response time | < 1 s |
| Input fuse | 5 A (slow-blow, internal) | Permissible backup fuse | B6 B10 B16 |
| Permissible DC backup fuse | DC: Connect a suitable fuse upstream | Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) |
| Discharge current to PE | < 3.5 mA | Efficiency | > 86 % |
| Nominal output voltage | 24 V DC ±1 % | Setting range of the output voltage (U | 22.5 V DC ... 28.5 V DC |
| Nominal output current (I | 2.5 A (up to 60 °C) | POWER BOOST (I | 3.75 A |
| Derating | 60 °C ... 70 °C (2.5 %/K) | Feedback voltage resistance | 35 V DC |
| Protection against overvoltage at the output (OVP) | ≤ 35 V DC | Max. capacitive load | unlimited |
| Active current limitation | Approx. I | Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) |
| Residual ripple | < 10 mV | Output power | 60 W |
| Peak switching voltages nominal load | < 40 mV | Maximum no-load power dissipation | < 2 W |
| Power loss nominal load max. | < 8 W | Rise time | < 2 ms (U |
| Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
| Output description | U | Maximum switching voltage | ≤ 24 V |
| Output voltage | + 24 V DC (Signal) | Maximum inrush current | ≤ 40 mA |
| Continuous load current | ≤ 40 mA | Output description | Relay contact, U |
| Maximum switching voltage | ≤ 30 V AC/DC | Maximum inrush current | ≤ 1 A |
| Continuous load current | ≤ 1 A | Connection method | Pluggable screw connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
| Stripping length | 7 mm | Screw thread | M3 |
| Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
| Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
| Screw thread | M3 | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 | Screw thread | M3 |
| Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
| Types of signaling | LED
Active switching output
Relay contact | Operating voltage display | Green LED |
| Status display | "DC OK" LED green | Note on status display | U |
| Status display | "DC OK" LED green | Number of phases | 1.00 |
| Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) | Insulation voltage output / PE | 500 V DC (routine test) |
| Insulation voltage input / PE | 3.5 kV AC (type test)
2 kV AC (routine test) | Product type | Power supply |
| Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 500000 h |
| Article revision | 21 | Protection class | I (with PE connection) |
| Degree of pollution | 2 | Width | 55 mm |
| Height | 130 mm | Depth | 125 mm |
| Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
| Width | 122 mm | Height | 130 mm |
| Depth | 58 mm | Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
| Mounting position | horizontal DIN rail NS 35, EN 60715 | With protective coating | no |
| Housing material | Metal | Type of housing | AluNox (AlMg1) |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) |
| Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. |
| Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | EN 62368-1 |
| Standard - Equipment safety | GS (tested safety) | Standard – Protection against shock currents, basic requirements for protective separation in electrical equipment | EN 62368-1 |
| Standard – Safety extra-low voltage | EN 62368-1 (SELV)
EN 60204 (PELV) | Standard - Safe isolation | DIN VDE 0100-410 |
| EN 62477-1 | III | Shipbuilding approval | DNV GL (EMC A) |
| UL approvals | UL/C-UL Recognized UL 60950-1
UL/C-UL listed UL 508
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
| EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Noise emission | EN 55011 (EN 55022) |
| Standards/regulations | EN 61000-4-2 | Housing | Level 4 |
| Contact discharge | 8 kV | Discharge in air | 15 kV |
| Comments | Criterion B | Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 1 GHz | Test field strength | 10 V/m |
| Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
| Input | 4 kV (level 4 - asymmetrical) | Output | 2 kV (Level 3 - asymmetrical) |
| Signal | 1 kV (Level 2 - asymmetrical) | Standards/regulations | EN 61000-4-5 |
| Input | 4 kV (inst. class 4 - asymmetrical: conductor to ground)
2 kV (inst. class 4 -symmetrical: conductor to conductor) | Output | 0.5 kV (level 1 - asymmetrical: conductor to ground)
0.5 kV (level 1 - symmetrical: conductor to conductor) |
| Signal | 1 kV (level 2 - asymmetrical: conductor to ground) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-6 | I/O/S | Level 3 - asymmetrical |
| Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
| Voltage | 10 V | Standards/regulations | EN 61000-4-11 |
| Standards/regulations | EN 61000-6-3 | Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
| Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
