Product Model

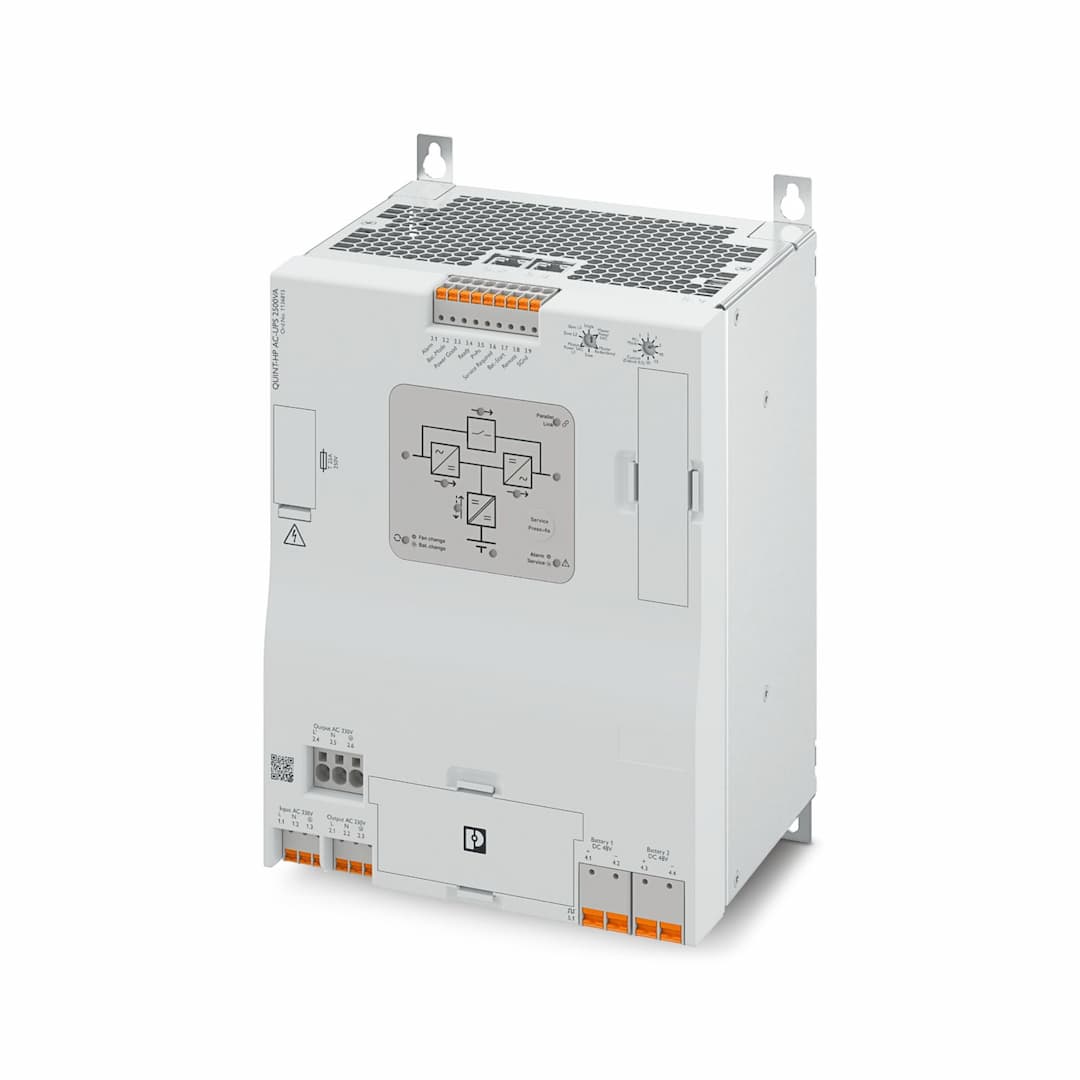

QUINT-HP-UPS/230AC/2.5KVA/PT
Key Features
- 1Ensures stable and reliable power supply to AC loads.
- 2Operates between -25°C and +60°C, suitable for various environments.
- 3Can be connected in parallel for increased performance, redundancy, or 3 AC system setup.
- 4Compatible with energy storage systems for extended runtime and backup power.
- 5Efficient cooling system for optimal performance in a compact form factor.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on the battery | For proper operation of the UPS, at least 2 QUINT-HP-BAT/PB/48DC/7.0AH/PT (1133819) battery modules are required. | Input voltage | 200 V AC -10 % / +20 %
210 V AC -15 % / +20 %
220 V AC -15 % / +20 %
230 V AC -20 % / +15 %
240 V AC -20 % / +10 % |
| Voltage type of supply voltage | AC | Frequency range (f | 47.5 Hz ... 52.5 Hz
57 Hz ... 63 Hz |
| Bypass fuse | 25 A T 250 V | Permissible backup fuse | B25 C25 |
| Current consumption | nom. 15.2 A (200 V AC)
nom. 14.5 A (210 V AC)
nom. 13.8 A (220 V AC)
nom. 13.2 A (230 V AC)
nom. 12.7 A (240 V AC)
max. 21.3 A (200 V AC)
max. 21.4 A (210 V AC)
max. 20.5 A (220 V AC)
max. 20.8 A (230 V AC)
max. 19.9 A (240 V AC) | Rated short-time current carrying capacity Icw | 6 kA |
| Classification according to IEC 62040-3 | VFI-SS-111 | Efficiency | > 95 % (100% load, battery charged)
> 89 % (100% load, battery charged) |
| Apparent power | 2500 VA | Real power | 2250 W |
| Power factor (cos phi) | 0.9 | Crest factor | 2.8 |
| Switch-over time | 0 ms | Connection in parallel | yes
max. 3 |
| Connection in series | no | Overload capability Mains operation | 120 % ... 150 % (20 s / 5 s, then switch to bypass operation) |
| Overload capability Battery operation | 120 % ... 150 % (20 s / 5 s, then shutdown) | Overload capability Bypass mode | 120 % ... 150 % (for a sustained period / 20 s, then shutdown) |
| Rated short-time current carrying capacity Icw | 6 kA | Output voltage | 200 V AC ±2 %
210 V AC ±2 %
220 V AC ±2 %
230 V AC ±2 %
240 V AC ±2 % |
| Form of output voltage | Pure sine | Output current | nom. 12.5 A (200 V AC)
nom. 11.9 A (210 V AC)
nom. 11.4 A (220 V AC)
nom. 10.9 A (230 V AC) |
| Static Boost (I | nom. 10.4 A (240 V AC) | Maximum no-load power dissipation | 10 W |
| Power loss nominal load max. | < 100 W (100% load, battery charged) | Nominal output frequency | 50 Hz
60 Hz
±0.5 % (Output frequency tolerance) |
| Electronic current limitation | > 2,5 x Output: Current nom. (> 200 ms) | Maximum no-load power dissipation | 10 W |
| Power loss nominal load max. | 275 W (100% load, battery charged) | Nominal output frequency | 50 Hz
60 Hz
±0.5 % (Output frequency tolerance) |
| Total harmonic distortion factor (THD) | < 3 % (linear load)
< 8 % (non-linear load) | Electronic current limitation | > 2,5 x Output: Current nom. (> 200 ms) |
| Input voltage | 48 V DC
max. 60 V DC | Input current | max. 40 A |
| Nominal capacity range | 7 Ah ... 200 Ah | Charging current | max. 10 A |
| Short-circuit current | 650 A ( | Connection in parallel | yes
max. 5 (per battery string) |
| Connection in series | no | IQ-Technology | yes |
| Permissible backup fuse | 40 A | Temperature sensor | yes |
| Permissible backup fuse | 40 A | Position | 1.x |
| Identification | 1.1 (L), 1.2 (N), 1.3 () | Position marking | 1.1 (L), 1.2 (N), 1.3 () |
| Connection method | Push-in connection | rigid | 2.5 mm² ... 6 mm² |
| flexible | 2.5 mm² ... 6 mm² | flexible with ferrule without plastic sleeve | 2.5 mm² ... 4 mm² |
| flexible with ferrule with plastic sleeve | 2.5 mm² ... 4 mm² | rigid (AWG) | 14 ... 10 |
| Stripping length | 10 mm | Position | 2.x |
| Identification | 2.1 (L), 2.2 (N), 2.3 () | Position marking | 2.1 (L), 2.2 (N), 2.3 () |
| Connection method | Push-in connection | rigid | 2.5 mm² ... 6 mm² |
| flexible | 2.5 mm² ... 6 mm² | flexible with ferrule without plastic sleeve | 2.5 mm² ... 4 mm² |
| flexible with ferrule with plastic sleeve | 2.5 mm² ... 4 mm² | rigid (AWG) | 14 ... 10 |
| Stripping length | 10 mm | Position | 2.x |
| Identification | 2.4 (L'), 2.5 (N), 2.6 () | Position marking | 2.4 (L'), 2.5 (N), 2.6 () |
| Connection method | Push-in connection | rigid | 2.5 mm² ... 6 mm² |
| flexible | 2.5 mm² ... 6 mm² | flexible with ferrule without plastic sleeve | 2.5 mm² ... 4 mm² |
| flexible with ferrule with plastic sleeve | 2.5 mm² ... 4 mm² | rigid (AWG) | 14 ... 10 |
| Stripping length | 15 mm | Position | 4.x |
| Identification | 4.1, 4.2; 4.3, 4.4 | Position marking | 4.1 (+), 4.2 (-), 4.3 (+), 4.4 (-) |
| Connection method | Push-in connection | rigid | 6 mm² ... 16 mm² |
| flexible | 6 mm² ... 16 mm² | flexible with ferrule without plastic sleeve | 6 mm² ... 16 mm² |
| flexible with ferrule with plastic sleeve | 6 mm² ... 16 mm² | rigid (AWG) | 8 ... 6 |
| Stripping length | 18 mm | Position | 3.x |
| Identification | 3.1 ... 3.9 | Position marking | 3.1 (Alarm), 3.2 (Bat.-Mode), 3.3 (Power Good), 3.4 (Ready), 3.5 (P>Pn), 3.6 (Service Required), 3.7 (Bat.-Start), 3.8 (Remote), 3.9 (SGnd) |
| Connection method | Push-in connection | rigid | 0.2 mm² ... 4 mm² |
| flexible | 0.2 mm² ... 4 mm² | flexible with ferrule without plastic sleeve | 0.2 mm² ... 2.5 mm² |
| flexible with ferrule with plastic sleeve | 0.2 mm² ... 2.5 mm² | rigid (AWG) | 24 ... 12 |
| Stripping length | 10 mm | Interface | Battery module communication interface |
| Number of interfaces | 1 | Connection method | RJ45 |
| Position | 5.x | Locking | Locking clip |
| Transmission physics | Twisted-Pair 4x2 | Interface | Parallel operation communication interface |
| Number of interfaces | 2 | Connection method | RJ45 |
| Position | 5.x | Locking | Locking clip |
| Transmission physics | Twisted-Pair 4x2 | Low signal | Connection to SGnd with < 2.7 kΩ |
| High signal | Open (> 200 kΩ between Bat.-Start and SGnd) | Low signal | Connection to SGnd with < 2.7 kΩ |
| High signal | Open (> 35 kΩ between Remote and SGnd) | Position | 3.x |
| Signalization designation | Alarm | Position marking | 3.1 (Alarm) |
| Switching output | Transistor output, active | Output voltage | 24 V |
| Continuous load current | ≤ 20 mA | Position | 3.x |
| Signalization designation | Bat.-Mode | Position marking | 3.2 (Bat.-Mode) |
| Switching output | Transistor output, active | Output voltage | 24 V |
| Continuous load current | ≤ 20 mA | Position | 3.x |
| Signalization designation | Power Good | Position marking | 3.3 (Power Good) |
| Switching output | Transistor output, active | Output voltage | 24 V |
| Continuous load current | ≤ 20 mA | Position | 3.x |
| Signalization designation | Ready | Position marking | 3.4 (Ready) |
| Switching output | Transistor output, active | Output voltage | 24 V |
| Continuous load current | ≤ 20 mA | Position | 3.x |
| Signalization designation | P>P | Position marking | 3.5 (P>Pn) |
| Switching output | Transistor output, active | Output voltage | 24 V |
| Continuous load current | ≤ 20 mA | Position | 3.x |
| Signalization designation | Service Required | Position marking | 3.6 (Service Required) |
| Switching output | Transistor output, active | Output voltage | 24 V |
| Continuous load current | ≤ 20 mA | Function | Signal ground |
| Reference potential | For signal inputs and signal outputs | Product type | AC UPS |
| Product family | QUINT AC UPS | Article revision | 02 |
| Protection class | I | Overvoltage category | II |
| Pollution degree | 2 | Width | 188 mm |
| Height | 240 mm | Depth | 143 mm |
| Diameter | 5.5 mm | Installation distance right/left | 0 mm / 0 mm |
| Installation distance top/bottom | 50 mm / 50 mm | Mounting type | Wall mounting |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C (> 50 °C: 2,5 % / K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Maximum altitude | ≤ 4000 m (> 1000 m: 3 % / 1000 m) |
| Max. permissible relative humidity (operation) | ≤ 95 % | Shock | 30g in each direction, according to IEC 60068-2-27 |
| Vibration (operation) | 5 Hz ... 100 Hz, 0.7g (EN 60068-2-6) | Standard designation | Uninterruptible power supply systems |
| Standards/specifications | EN 62040-1 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | Interference emission | Noise emission |
| Noise immunity | Immunity | Conducted noise emission | EN 62040-02 (Class C2) |
| Standards/regulations | EN 61000-4-2 | Contact discharge | ± 6 kV |
| Discharge in air | ± 8 kV | Comments | Criterion A |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 6 GHz |
| Test field strength | 10 V/m | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | ± 2 kV
± 2 kV |
| Output | ± 2 kV | Signal | ± 2 kV
± 2 kV (Communication parallel operation, battery module) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
| Signal | 1 kV (asymmetrical) | Comments | Criterion B |
| Input/Output | ± 1 kV (symmetrical)
± 2 kV (asymmetrical) | Standards/regulations | EN 61000-4-6 |
| Frequency range | 0.15 MHz ... 80 MHz | Signal | 10 V (asymmetrical) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-8 |
| Frequency | 50 Hz | Signal | 30 A/m |
| Comments | Criterion A | Standards/regulations | EN 61000-4-13 |
| Comments | Criterion A | Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
