Product Model

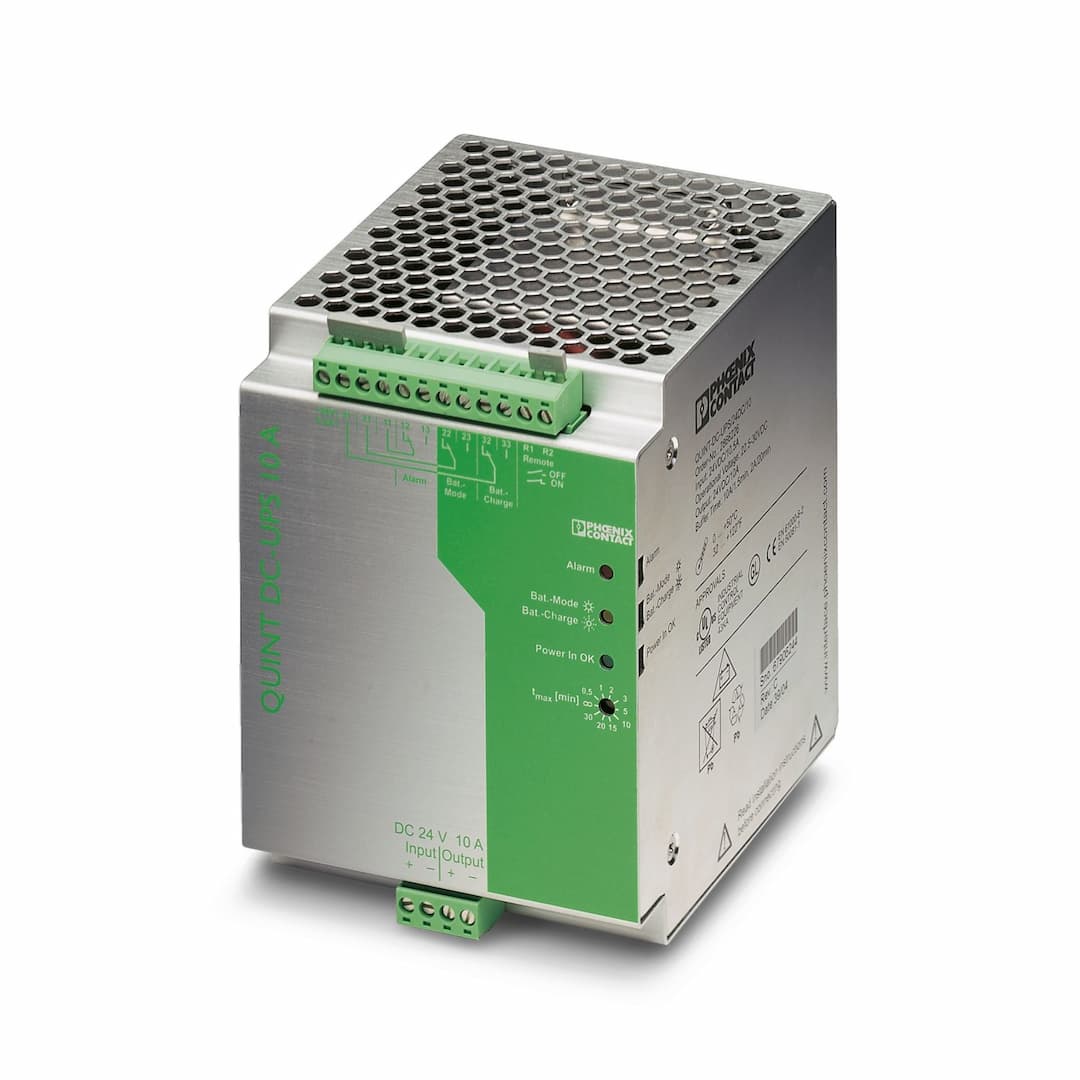

QUINT-DC-UPS/24DC/10
Key Features
- 1Designed for easy integration into industrial networks.
- 2Provides up to 10 amps of power during outages.
- 3Operates between 22.5 V DC and 30 V DC.
- 4Works from 0°C to 50°C.
- 5Includes yellow LED for battery charge and status indication.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | 24 V DC | Input voltage range | 22.5 V DC ... 30 V DC |
| Wide-range input | no | Input voltage range DC | 22.5 V DC ... 30 V DC |
| Voltage type of supply voltage | DC | Buffer period | 1.5 min (10 A)
20 min (2 A) |
| Current consumption | approx. 0.1 A
0.5 A (charging process)
10.5 A (max.) | Fixed backup threshold | < 22 V DC |
| Variable connect threshold | (U | Input fuse | 15 A (slow-blow, internal) |
| Efficiency | > 91 % | Nominal output voltage | 24 V DC (Normal operation: U |
| Nominal output current (I | 10 A | Bridging time | 2 min |
| Short-circuit-proof | yes | Output power | 240 W |
| Power dissipation | 20 W
8 W | Connection in parallel | no |
| Connection in series | yes | Nominal output voltage | 24 V DC |
| Nominal output current (I | 10 A | Nominal output voltage | 24 V DC |
| Nominal output current (I | 10 A | Output description | Power OK |
| Output description | Alarm | Maximum switching voltage | ≤ 30 V AC/DC |
| Continuous load current | ≤ 1 A | Output description | Battery Charge |
| Maximum switching voltage | ≤ 30 V AC/DC | Continuous load current | ≤ 1 A |
| Output description | Battery Mode | Maximum switching voltage | ≤ 30 V AC/DC |
| Continuous load current | ≤ 1 A | Nominal capacity | 1.3 Ah |
| Battery module service life | 6 Years (20 °C) | Latest startup date (battery only) | 9 Months (20 °C ... 30 °C)
6 Months (30 °C ... 40 °C) |
| Memory medium | internal, battery 1.3 Ah | Network management | Yes |
| Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
| Screw thread | M3 | Connection method | Pluggable screw connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
| Stripping length | 7 mm | Screw thread | M3 |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
| Screw thread | M3 | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Types of signaling | LED |
| Operating voltage display | Green LED | Status display | LED "Power OK" green |
| Note on status display | Power OK: LED permanently lit | Status display | LED (red) |
| Note on status display | Alarm: LED permanently lit | Status display | LED flashing yellow |
| Note on status display | Battery charge: LED flashing | Status display | LED (yellow) |
| Note on status display | Battery mode: LED permanently lit | Insulation voltage input/output | 2 kV (routine test)
4 kV (type test) |
| Product type | DC UPS | Disposal | Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. |
| MTBF (IEC 61709, SN 29500) | > 500000 h | Article revision | 05 |
| Protection class | II (in closed control cabinet) | Width | 100 mm |
| Height | 130 mm | Depth | 125 mm |
| Installation distance right/left | 5 mm / 5 mm | Installation distance top/bottom | 50 mm / 50 mm |
| Mounting type | DIN rail mounting | Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
| Mounting position | horizontal DIN rail NS 35, EN 60715 | Housing material | Metal |
| Type of housing | AluNox (AlMg1) | Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 50 °C | Ambient temperature (storage/transport) | 0 °C ... 40 °C |
| Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
| Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV)
EN 61558-2-17 | Standard - Safe isolation | DIN VDE 0100-410 |
| Standard - Safety of transformers | EN 61558-2-17 | Shipbuilding approval | DNV GL (EMC A), ABS |
| UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL/C-UL Listed UL 1604 Class I, Division 2, Groups A, B, C, D | SIL in accordance with IEC 61508 | 0 |
| Performance level according to ISO 13849 | without | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | Noise immunity | EN 61000-6-2:2005 |
| Noise emission | EN 55011 (EN 55022) |
Specifications may be subject to change without notice
