Product Model

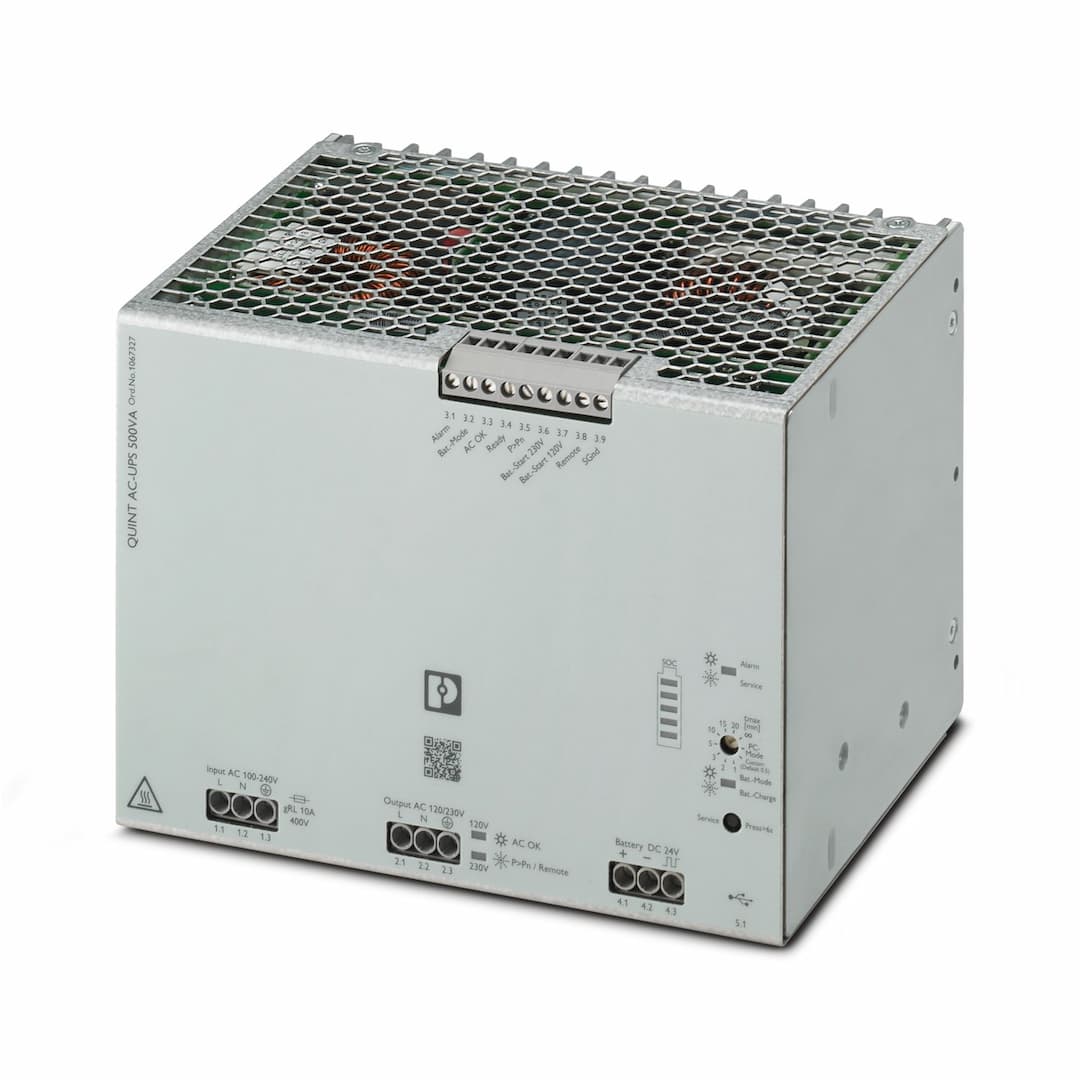

QUINT4-UPS/1AC/1AC/500VA/USB
Key Features
- 1DIN Rail Mounting: Compact design for easy installation on DIN rails.
- 2High Efficiency: >97% efficiency at 100% load with charged energy storage.
- 3Wide Input Range: Operates with input voltages 90 V AC to 264 V AC.
- 4Quick Switch-Over Time: Switches to battery operation in <10 ms.
- 5Integrated USB Interface: Convenient for remote monitoring and control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | 120 V AC
230 V AC | Input voltage range | 90 V AC ... 264 V AC |
| Nominal input voltage range | 100 V AC ... 240 V AC | Typical national grid voltage | 120 V AC |
| Voltage type of supply voltage | AC | Frequency range (f | 45 Hz ... 65 Hz |
| Permissible backup fuse | max. 25 A | Current consumption | 6.9 A (100 V AC)
2.86 A (240 V AC)
19 A (24 V DC) |
| Efficiency | > 97 % (100 % load, with charged energy storage)
~ 87 % (100 % load ) | Apparent power | 500 VA |
| Real power | 400 W | Power factor (cos phi) | 0.8 |
| Crest factor | 2.8 | Switch-over time | < 10 ms |
| UPS classification | VFD-SS-311 | Connection in parallel | no |
| Connection in series | no | Overload capability Mains operation | in accordance with internal fuse |
| Overload capability Battery operation | 105 % (Permanent)
120 % ... 150 % (20 s / 5 s, then shutdown) | Output voltage | 120 V AC
230 V AC |
| Nominal output current (I | 4.17 A (120 V AC)
2.17 A (230 V AC) | Maximum no-load power dissipation | typ. 9 W (120 V AC)
typ. 10 W (230 V AC) |
| Power loss nominal load max. | typ. 10 W (120 V AC)
typ. 11 W (230 V AC) | Nominal output frequency | 60 Hz ±5 Hz
50 Hz ±5 Hz |
| Output fuse | 10 A 400 V gRL | Output voltage | 120 V AC ±2 %
230 V AC ±2 % |
| Form of output voltage | Pure sine | Maximum no-load power dissipation | approx. 23 W (120 V AC)
approx. 24 W (230 V AC) |
| Power loss nominal load max. | approx. 57 W (120 V AC)
approx. 54 W (230 V AC) | Nominal output frequency | 60 Hz
50 Hz
±5 % (grid-guided)
±0.5 % (self-guided) |
| Total harmonic distortion factor (THD) | < 3 % (linear load)
< 8 % (non-linear load) | Electronic current limitation | > 2,5 x I |
| Input voltage | 24 V DC | Deep discharge protection | 20 V DC ... 24 V DC (can be parameterized) |
| Nominal capacity range | 3.4 Ah ... 200 Ah (5x 40 Ah) | Charging current | max. 5 A |
| End-of-charge voltage | 24 V DC ... 31 V DC (temperature compensated) | Battery technology | VRLA, VRLA-WTR, LI-ION (see section: Ordering data) |
| Charge characteristic curve | IU | Permissible backup fuse | 50 A |
| Position | 1.x | Connection method | Screw connection |
| rigid | 0.2 mm² ... 6 mm² | flexible | 0.2 mm² ... 4 mm² |
| flexible with ferrule without plastic sleeve | 0.2 mm² ... 4 mm² | flexible with ferrule with plastic sleeve | 0.2 mm² ... 4 mm² |
| rigid (AWG) | 30 ... 10 | Stripping length | 8 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm | Drive form screw head | Slotted L |
| Position | 2.x | Connection method | Screw connection |
| rigid | 0.2 mm² ... 6 mm² | flexible | 0.2 mm² ... 4 mm² |
| flexible with ferrule without plastic sleeve | 0.2 mm² ... 4 mm² | flexible with ferrule with plastic sleeve | 0.2 mm² ... 4 mm² |
| rigid (AWG) | 30 ... 10 | Stripping length | 8 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm | Drive form screw head | Slotted L |
| Position | 3.x | Connection method | Screw connection |
| rigid | 0.2 mm² ... 1.5 mm² | flexible | 0.2 mm² ... 1.5 mm² |
| flexible with ferrule without plastic sleeve | 0.2 mm² ... 1.5 mm² | flexible with ferrule with plastic sleeve | 0.2 mm² ... 1.5 mm² |
| rigid (AWG) | 30 ... 12 | Stripping length | 8 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm | Drive form screw head | Slotted L |
| Position | 4.x | Connection method | Screw connection |
| rigid | 0.2 mm² ... 6 mm² | flexible | 0.2 mm² ... 4 mm² |
| flexible with ferrule without plastic sleeve | 0.2 mm² ... 4 mm² | flexible with ferrule with plastic sleeve | 0.2 mm² ... 4 mm² |
| rigid (AWG) | 30 ... 10 | Stripping length | 8 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm | Drive form screw head | Slotted L |
| Interface | USB (Modbus/RTU) | Number of interfaces | 1 |
| Connection method | MINI-USB Type B | Connection marking | 5.1 |
| Locking | Screw | Transmission physics | USB 2.0 |
| Maximum cable length | 3 m | Electrical isolation | yes |
| Low signal | Connection to SGnd with < 2.7 kΩ | High signal | Open (> 200 kΩ between Bat.-Start and SGnd) |
| Low signal | Connection to SGnd with < 2.7 kΩ | High signal | Open (> 35 kΩ between Remote and SGnd) |
| Position | 3.x | Signalization designation | Alarm |
| Position marking | 3.1 (Alarm) | Switching output | Transistor output, active |
| Output voltage | 24 V | Continuous load current | ≤ 20 mA |
| LED status indicator | red | Position | 3.x |
| Signalization designation | Bat.-Mode | Position marking | 3.2 (Bat.-Mode) |
| Switching output | Transistor output, active | Output voltage | 24 V |
| Continuous load current | ≤ 20 mA | LED status indicator | yellow |
| Position | 3.x | Signalization designation | AC OK |
| Position marking | 3.3 (AC OK) | Switching output | Transistor output, active |
| Output voltage | 24 V | Continuous load current | ≤ 20 mA |
| LED status indicator | green | Position | 3.x |
| Signalization designation | Ready | Position marking | 3.4 (Ready) |
| Switching output | Transistor output, active | Output voltage | 24 V |
| Continuous load current | ≤ 20 A | LED status indicator | green |
| Position | 3.x | Signalization designation | P>P |
| Position marking | 3.5 (P>Pn) | Switching output | Transistor output, active |
| Output voltage | 24 V | Continuous load current | ≤ 20 mA |
| Connection labeling | 3.9 | Function | Signal ground |
| Reference potential | For signal inputs and signal outputs | Number of phases | 1.00 |
| Product type | AC UPS | Product family | QUINT AC UPS |
| MTBF (IEC 61709, SN 29500) | 445469 h (40 °C) | Article revision | 02 |
| Protection class | I | Overvoltage category | II |
| Pollution degree | 3 (≤ 130 V AC)
2 (> 200 V AC) | Width | 180 mm |
| Height | 130 mm | Depth | 125 mm |
| Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
| Mounting type | DIN rail mounting | Housing material | Metal |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C (> 50 °C: 2,5 % / K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Maximum altitude | ≤ 3000 m (> 2000 m: 0,6 % / 100 m) |
| Max. permissible relative humidity (operation) | ≤ 95 % | Shock | 20g in all directions (EN 60068-2-27) |
| Vibration (operation) | 5 Hz ... 100 Hz, 0.7g (EN 60068-2-6) | Standard designation | Uninterruptible power supply systems |
| Standards/specifications | EN 62040-1 | Identification | UL/C-UL Recognized UL 1778 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| Interference emission | Noise emission in accordance with EN 62040-2 | Noise immunity | Immunity in accordance with EN 62040-2 |
| Conducted noise emission | EN 62040-02 (Class C2) | Standards/regulations | EN 61000-4-2 |
| Contact discharge | ± 6 kV | Discharge in air | ± 8 kV |
| Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 6 GHz | Test field strength | 10 V/m |
| Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
| Input | ± 2 kV
± 2 kV | Output | ± 2 kV |
| Signal | ± 2 kV
± 2 kV (USB) | Comments | Criterion A (B for USB) |
| Standards/regulations | EN 61000-4-5 | Signal | 1 kV (asymmetrical) |
| Comments | Criterion B | Input/Output | ± 1 kV (symmetrical)
± 2 kV (asymmetrical) |
| Standards/regulations | EN 61000-4-6 | Frequency range | 0.15 MHz ... 80 MHz |
| Signal | 1 kV (asymmetrical) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-8 | Frequency | 50 Hz |
| Signal | 30 A/m | Comments | Criterion A |
| Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
