Product Model

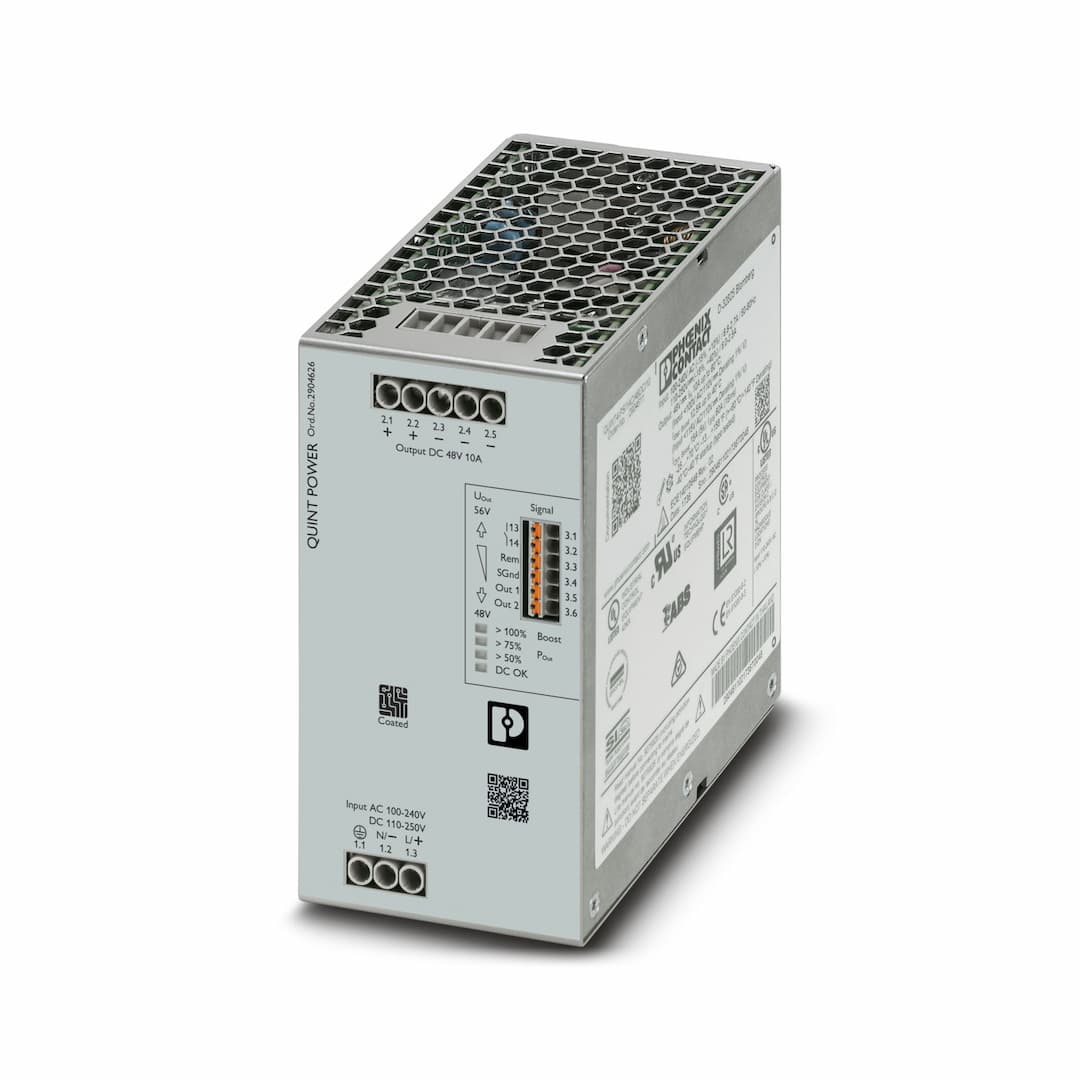

QUINT4-PS/1AC/48DC/10/CO
Key Features
- 1Ensures regulated output voltage even in voltage fluctuations.
- 2Ranges from 48 to 56 V DC for optimal application environment requirements.
- 3Visualizes critical operating states locally and remotely via LED, floating relay contact, or active switching output.
- 4Supplies up to 50% additional current without voltage drop, and up to 200% for 5 seconds during startup.
- 5Meets ITE safety certifications with high isolation voltages, extended operating temperatures, and robust input side with high noise immunity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Control input (configurable) Rem | Output power ON/OFF (SLEEP MODE) | Default | Output power ON (>40 kΩ/24 V DC/open bridge between Rem and SGnd) |
| Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % |
| Derating | < 100 V AC (1 %/V) | Electric strength, max. | 300 V AC 60 s |
| Typical national grid voltage | 120 V AC
230 V AC | Voltage type of supply voltage | AC |
| Inrush current | typ. 11 A (at 25 °C) | Inrush current integral (I | < 0.4 A |
| Inrush current limitation | 11 A (after 1 ms) | AC frequency range | 50 Hz ... 60 Hz -10 % ... +10 % |
| Frequency range (f | 50 Hz ... 60 Hz -10 % ... +10 %
16.7 Hz (acc. to EN 50163) | Mains buffering time | typ. 32 ms (120 V AC)
typ. 32 ms (230 V AC) |
| Current consumption | 6.8 A (100 V AC)
5.5 A (120 V AC)
2.8 A (230 V AC)
2.7 A (240 V AC) | Nominal power consumption | 519 VA |
| Protective circuit | Transient surge protection; Varistor, gas-filled surge arrester | Switch-on time | < 1 s |
| Typical response time | 300 ms (from SLEEP MODE) | Input fuse | 12 A (slow-blow, internal) |
| Recommended breaker for input protection | 10 A ... 16 A (Characteristic B, C, D, K or comparable) | Discharge current to PE | < 3.5 mA
1.3 mA (264 V AC, 60 Hz) |
| Nominal input voltage range | 110 V DC ... 250 V DC | Input voltage range | 110 V DC ... 250 V DC -18 % ... +40 % |
| Derating | < 110 V DC (1 %/V) | Voltage type of supply voltage | DC |
| Current consumption | 6 A (110 V DC)
2.5 A (250 V DC) | Efficiency | typ. 94 % (120 V AC)
typ. 95 % (230 V AC) |
| Output characteristic | U/I Advanced
Smart HICCUP
FUSE MODE | Nominal output voltage | 48 V DC |
| Setting range of the output voltage (U | 48 V DC ... 56 V DC (constant capacity) | Nominal output current (I | 10 A |
| Static Boost (I | 12.5 A | Dynamic Boost (I | 15 A (5 s) |
| Selective Fuse Breaking (I | 60 A (15 ms) | Magnetic circuit breaker tripping | A1...A13 / B2...B6 / C1...C3 / Z1...Z10 |
| Derating | > 60 °C (2.5 %/K) | Feedback voltage resistance | ≤ 60 V DC |
| Protection against overvoltage at the output (OVP) | ≤ 60 V DC | Control deviation | < 0.5 % (Static load change 10 % ... 90 %)
< 2 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.25 % (change in input voltage ±10 %) |
| Residual ripple | < 70 mV | Short-circuit-proof | yes |
| No-load proof | yes | Output power | 480 W
600 W
720 W |
| Apparent power | 660 VA (120 V, U
644 VA (230 V, U | Maximum no-load power dissipation | < 5 W (120 V AC)
< 5 W (230 V AC) |
| Power loss nominal load max. | < 36 W (120 V AC)
< 28 W (230 V AC) | Power dissipation SLEEP MODE | < 5 W (120 V AC)
< 5 W (230 V AC) |
| Crest factor | typ. 1.54 (120 V AC)
typ. 1.56 (230 V AC) | Rise time | < 1 s (U |
| Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
| Signal ground SGnd | Reference potential for Out1, Out2, and Rem | Digital | 24 V DC 20 mA |
| Default | 24 V DC 20 mA 24 V DC for U | Digital | 24 V DC 20 mA |
| Analog | 4 mA ... 20 mA ±5 % (Load ≤400 Ω) | Default | 24 V DC 20 mA 24 V DC for P |
| Default | closed (U | Connection method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 6 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 4 mm² |
| Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 4 mm² |
| Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 4 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 10 |
| Stripping length | 6.5 mm | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Connection method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 6 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 4 mm² |
| Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 4 mm² |
| Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 4 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 10 |
| Stripping length | 6.5 mm | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Connection method | Push-in connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 1 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 1.5 mm² |
| Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 0.75 mm² |
| Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm | Types of signaling | LED
Floating signal contact
Active signal output Out1 (digital, configurable)
Active signal output Out2 (analog, configurable)
Remote contact
Signal ground SGnd |
| P | > 100 % (LED lights up yellow, output power > 480 W)
> 75 % (LED lights up green, output power > 360 W)
> 50 % (LED lights up green, output power > 240 W) | U | > 0.9 x U
< 0.9 x U |
| Number of phases | 1.00 | Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) |
| Insulation voltage output / PE | 0.5 kV DC (type test)
0.5 kV DC (routine test) | Insulation voltage input / PE | 3.5 kV AC (type test)
2.4 kV AC (routine test) |
| Switching frequency | 90.00 kHz ... 110.00 kHz (Auxiliary converter stage)
70.00 kHz ... 330.00 kHz (Main converter stage)
50.00 kHz ... 70.00 kHz (PFC stage) | Product type | Power supply |
| Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 1100000 h (25 °C)
> 676000 h (40 °C)
> 317000 h (60 °C) |
| Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach | Article revision | 02 |
| Protection class | I | Degree of pollution | 2 |
| Current | 5 A | Temperature | 40 °C |
| Time | 420000 h | Additional text | 120 V AC |
| Current | 5 A | Temperature | 40 °C |
| Time | 484000 h | Additional text | 230 V AC |
| Current | 10 A | Temperature | 25 °C |
| Time | 526000 h | Additional text | 120 V AC |
| Current | 10 A | Temperature | 25 °C |
| Time | 827000 h | Additional text | 230 V AC |
| Current | 10 A | Temperature | 40 °C |
| Time | 186000 h | Additional text | 120 V AC |
| Current | 10 A | Temperature | 40 °C |
| Time | 292000 h | Additional text | 230 V AC |
| Width | 70 mm | Height | 130 mm |
| Depth | 125 mm | Installation distance right/left | 5 mm / 5 mm |
| Installation distance top/bottom | 50 mm / 50 mm | Width | 122 mm |
| Height | 130 mm | Depth | 73 mm |
| Mounting type | DIN rail mounting | Assembly note | alignable: P |
| Mounting position | horizontal DIN rail NS 35, EN 60715 | With protective coating | yes |
| Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Metal |
| Hood version | Stainless steel X6Cr17 | Side element version | Aluminum |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
| Maximum altitude | ≤ 5000 m (> 2000 m, observe derating) | Climatic class | 3K3 (in acc. with EN 60721) |
| Max. permissible relative humidity (operation) | ≤ 100 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
| Vibration (operation) | 5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C) | Temp code | T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K) |
| Rail applications | EN 50121-3-2
EN 50121-4
EN 50121-5
EN 50163
IEC 62236-3-2
IEC 62236-4
IEC 62236-5 | HART FSK Physical Layer Test Specification Compliance | Output voltage U |
| Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | IEC 61010-2-201 (SELV) |
| Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard - Safe isolation | IEC 61558-2-16
IEC 61010-2-201 |
| Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 | Standard - Safety of transformers | EN 61558-2-16 |
| Battery charging | DIN 41773-1 | Approval - requirement of the semiconductor industry with regard to mains voltage dips | SEMI F47-0706, EN 61000-4-11 |
| EN 61010-1 | II (≤ 5000 m) | EN 62477-1 | III (≤ 2000 m) |
| CSA | CAN/CSA-C22.2 No. 60950-1-07
CSA-C22.2 No. 107.1-01 | Shipbuilding approval | DNV GL, PRS, BV, LR, ABS |
| SIQ | BG (type approved)
CB-Scheme (IEC 61010-1, IEC 61010-2-201, IEC 60950-1) | UL approvals | UL Listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
| EMC requirements for power supply | IEC 61850-3 (G,H)
EN 61000-6-5 (switching devices) | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
| Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) | Noise emission | EN 55016
EN 61000-6-3 (Class B) |
| DNV GL conducted interference | Class A | Additional text | Area power distribution |
| DNV GL noise radiation | Class B | Additional text | Bridge and deck area |
| Standards/regulations | EN 61000-3-2
EN 61000-3-2 (Class A) | Frequency range | 0 kHz ... 2 kHz |
| Standards/regulations | EN 61000-3-3
EN 61000-3-3 | Frequency range | 0 kHz ... 2 kHz |
| Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
| Discharge in air | 15 kV (Test Level 4) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
| Test field strength | 20 V/m (Test Level 3) | Frequency range | 1 GHz ... 6 GHz |
| Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical) |
| Output | 4 kV (Test Level 4 - asymmetrical) | Signal | 4 kV (Test Level 4 - asymmetrical) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
| Input | typ. 3 kV (Test Level 4 - symmetrical)
typ. 6 kV (Test Level 4 - asymmetrical) | Output | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
| Signal | 4 kV (Test Level 4 - asymmetrical) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
| Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
| Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-4-8 |
| Frequency | 16.7 Hz
50 Hz
60 Hz | Test field strength | 100 A/m |
| Additional text | 60 s | Comments | Criterion A |
| Frequency | 50 Hz
60 Hz | Frequency range | 50 Hz ... 60 Hz |
| Test field strength | 1 kA/m | Additional text | 3 s |
| Frequency | 0 Hz | Test field strength | 300 A/m |
| Additional text | DC, 60 s | Standards/regulations | EN 61000-4-11 |
| Voltage | 230 V AC | Frequency | 50 Hz |
| Voltage dip | 70 % | Number of periods | 0.5 / 1 / 25 / 30 periods |
| Additional text | Test Level 2 | Comments | Criterion A: 0.5 / 1 / 25 / 30 periods |
| Voltage dip | 40 % | Number of periods | 5 / 10 / 50 periods |
| Additional text | Test Level 2 | Comments | Criterion A |
| Voltage dip | 0 % | Number of periods | 0,5 / 1 / 5 / 50 / 250 periods |
| Additional text | Test Level 2 | Comments | Criterion A: 0.5 / 1 period |
| Standards/regulations | EN 61000-4-9 | Test field strength | 1000 A/m |
| Comments | Criterion A | Standards/regulations | EN 61000-4-12 |
| Input | 2 kV (Test Level 4 - symmetrical)
4 kV (Test Level 4 - asymmetrical) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-16 | Test level 1 | 15 Hz 150 Hz (Test Level 3) |
| Voltage | 10 V 1 V | Test level 2 | 150 Hz 1.5 kHz (Test Level 3) |
| Voltage | 1 V | Test level 3 | 1.5 kHz 15 kHz (Test Level 3) |
| Voltage | 1 V 10 V | Test level 4 | 15 kHz 150 kHz (Test Level 3) |
| Voltage | 10 V | Test level 5 | 50 Hz 60 Hz (Test Level 3) |
| Voltage | 10 V (Permanent) | Test level 6 | 50 Hz 60 Hz (Test Level 3) |
| Voltage | 100 V (1 s) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-18 | Input, output (test level 1) | 1 MHz (Test Level 3 - symmetrical) |
| Voltage | 1 kV | Input, output (test level 2) | 10 MHz |
| Voltage | 1 kV | Input, output (test level 3) | 1 MHz (Test Level 3 - asymmetrical) |
| Voltage | 2.5 kV | Comments | Criterion B |
| Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
