Product Model

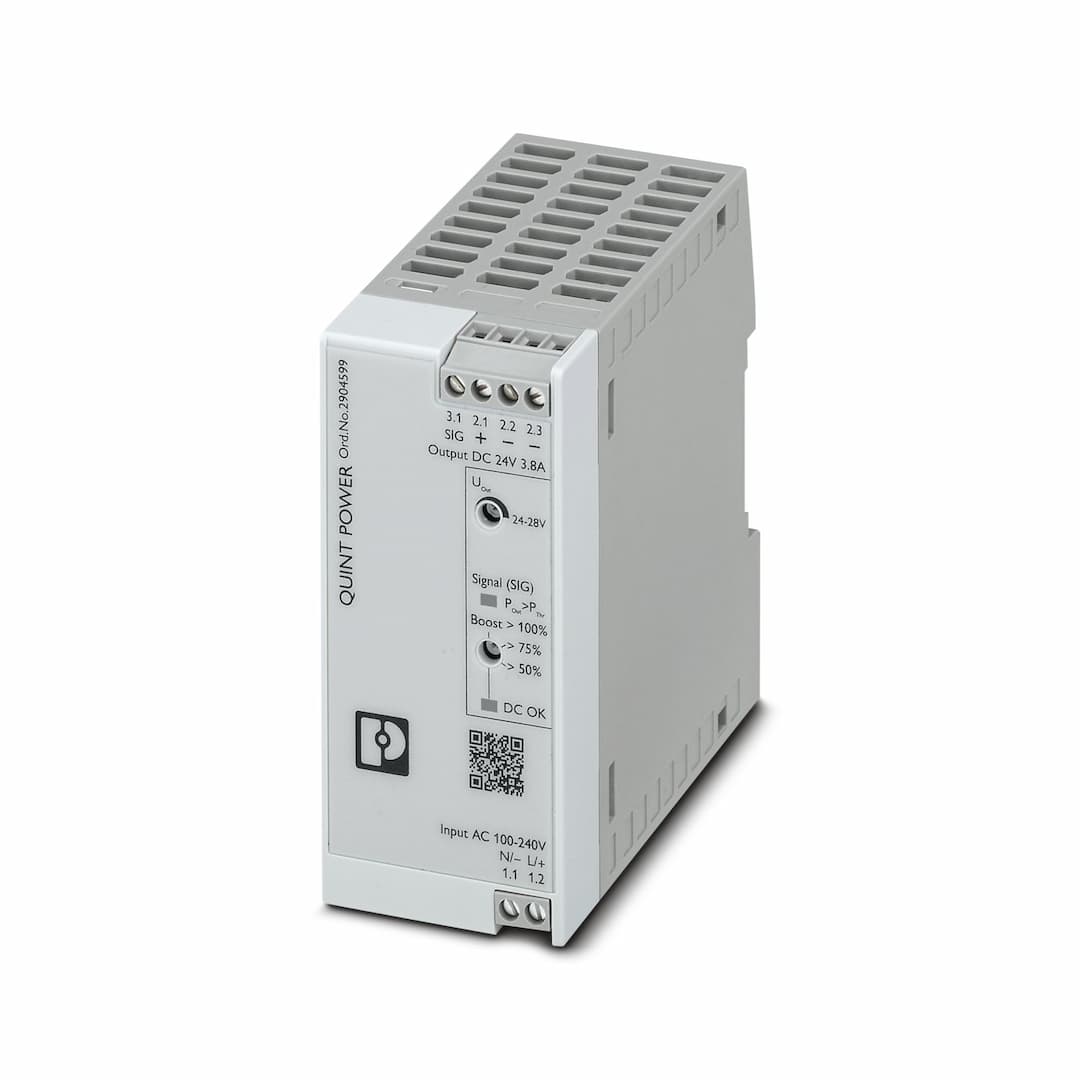

QUINT4-PS/1AC/24DC/3.8/SC
Key Features
- 1Regulated output voltage ensures reliable power supply even in voltage fluctuations.
- 2Slim-line design saves space in control cabinets, perfect for 120 mm control boxes.
- 3Up to 200% dynamic boost for starting heavy loads, ensuring system availability.
- 4Indicates critical operating states before errors occur, enhancing system reliability.
- 5Meets safety certifications (UL 1310 NEC Class 2) and has a high MTBF (over 690,000 hours).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % | Electric strength, max. | 300 V AC 30 s |
| Typical national grid voltage | 120 V AC
230 V AC | Voltage type of supply voltage | AC/DC |
| Inrush current | typ. 13 A (at 25 °C) | Inrush current integral (I | < 0.18 A |
| Inrush current limitation | 6.4 A (after 1 ms)
< 13 A | Frequency range (f | 50 Hz ... 60 Hz -10 % ... +10 % |
| Mains buffering time | typ. 35 ms (120 V AC)
typ. 35 ms (230 V AC) | Current consumption | 1 A (100 V AC)
0.83 A (120 V AC)
0.46 A (230 V AC)
0.44 A (240 V AC) |
| Nominal power consumption | 104 VA | Protective circuit | Transient surge protection; Varistor |
| Typical response time | 500 ms | Input fuse | 3.15 A (slow-blow, internal) |
| Recommended breaker for input protection | 6 A ... 16 A (Characteristic B, C or comparable) | Discharge current to PE | < 0.25 mA (264 V AC, 60 Hz)
0.18 mA (264 V AC, 60 Hz) |
| Input voltage range | 110 V DC ... 250 V DC -20 % ... +40 % | Voltage type of supply voltage | AC/DC |
| Current consumption | 0.91 A (110 V DC)
0.4 A (250 V DC) | Efficiency | typ. 92.8 % (120 V AC)
typ. 93.7 % (230 V AC) |
| Output characteristic | U/I Advanced | Nominal output voltage | 24 V DC |
| Setting range of the output voltage (U | 24 V DC ... 28 V DC (constant capacity) | Nominal output current (I | 3.8 A |
| Dynamic Boost (I | 7 A (≤ 60 °C (5 s)) | Derating | > 60 °C (2.5 %/K) |
| Feedback voltage resistance | ≤ 35 V DC | Protection against overvoltage at the output (OVP) | ≤ 32 V DC |
| Control deviation | < 0.5 % (Static load change 10 % ... 90 %)
< 3 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.2 % (change in input voltage ±10 %) | Residual ripple | < 45 mV |
| Short-circuit-proof | yes | No-load proof | yes |
| Output power | 90 W
170 W | Maximum no-load power dissipation | < 1 W (120 V AC)
< 1 W (230 V AC) |
| Power loss nominal load max. | < 7 W (120 V AC)
< 6 W (230 V AC) | Crest factor | typ. 1.57 (120 V AC)
typ. 1,7 (230 V AC) |
| Rise time | 50 ms (U | Connection in parallel | yes, for redundancy and increased capacity |
| Connection in series | yes | Digital | 0 V DC 24 V DC 30 mA |
| Default | 24 V DC 30 mA 24 V DC for U | Connection method | Screw connection |
| Conductor cross section, rigid min. | 0.14 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Single conductor/terminal point, stranded, with ferrule, min. | 0.25 mm² | Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² |
| Conductor cross section AWG min. | 26 | Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Connection method | Screw connection |
| Conductor cross section, rigid min. | 0.14 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Single conductor/terminal point, stranded, with ferrule, min. | 0.25 mm² | Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² |
| Conductor cross section AWG min. | 26 | Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Connection method | Screw connection |
| Conductor cross section, rigid min. | 0.14 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Single conductor/terminal point, stranded, with ferrule, min. | 0.25 mm² | Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² |
| Conductor cross section AWG min. | 26 | Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Types of signaling | LED |
| P | > P | U | > 0.9 x U
< 0.9 x U |
| Number of phases | 1.00 | Insulation voltage input/output | 4 kV AC (type test)
3 kV AC (routine test) |
| Switching frequency | 5.00 kHz ... 65.00 kHz (Auxiliary converter stage)
30.00 kHz ... 150.00 kHz (PFC stage)
80.00 kHz ... 150.00 kHz (Main converter stage) | Product type | Power supply |
| Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 1272000 h (25 °C)
> 690000 h (40 °C)
> 271000 h (60 °C) |
| Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach | Article revision | 03 |
| Protection class | II | Degree of pollution | 2 |
| Current | 3.8 A | Temperature | 40 °C |
| Time | 57000 h | Additional text | 120 V AC |
| Current | 3.8 A | Temperature | 40 °C |
| Time | 61000 h | Additional text | 230 V AC |
| Current | 3.8 A | Temperature | 25 °C |
| Time | 162000 h | Additional text | 120 V AC |
| Current | 3.8 A | Temperature | 25 °C |
| Time | 173000 h | Additional text | 230 V AC |
| Width | 45 mm | Height | 99 mm |
| Depth | 90 mm | Installation distance right/left (active) | 15 mm / 15 mm (P |
| Installation distance right/left (passive) | 5 mm / 5 mm (P | Installation distance top/bottom (active) | 30 mm / 30 mm (P |
| Installation distance top/bottom (passive) | 30 mm / 30 mm (P | Installation distance top/bottom (active, passive) | 30 mm / 30 mm (P |
| Mounting type | DIN rail mounting | Assembly note | DIN rail mounting |
| With protective coating | no | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
| Housing material | Plastic | Type of housing | Polycarbonate |
| Hood version | Polycarbonate | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | ≤ 5000 m (> 2000 m, observe derating) |
| Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, ±2.5 mm amplitude; 15 Hz ... 100 Hz: 2.3 g 90 Min. (in accordance with IEC 60068-2-6) |
| Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | IEC 61010-2-201 (SELV) |
| Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard - Safe isolation | IEC 61558-2-16
IEC 61010-2-201 |
| Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 | Standard - Safety of transformers | EN 61558-2-16 |
| Standard - power supply devices for low voltage with DC output | EN 61204-3 | EN 61010-1 | II (≤ 5000 m) |
| EN 62477-1 | III (≤ 2000 m) | SIQ | CB-Scheme (IEC 61010-1, IEC 61010-2-201) |
| UL approvals | UL Listed UL 61010-1
UL Listed UL 61010-2-201
UL 1310 Class 2 Power Units
UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
| EMC requirements for power supply | IEC 61850-3 (G,H)
EN 61000-6-5 (switching devices) | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
| Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) | Noise emission | EN 55016
EN 61000-6-3 (Class B) |
| Frequency range | 0 kHz ... 2 kHz | Frequency range | 0 kHz ... 2 kHz |
| Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
| Discharge in air | 8 kV (Test Level 3) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
| Test field strength | 20 V/m (Test Level X) | Frequency range | 1 GHz ... 6 GHz |
| Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical) |
| Output | 4 kV (Test Level 4 - asymmetrical) | Signal | 4 kV (Test Level 4 - asymmetrical) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
| Input | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Output | 0.5 kV (Test Level 2 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
| Signal | 0.5 kV (Test Level 2 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
| Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
| Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-4-8 |
| Frequency | 16.67 Hz
50 Hz
60 Hz | Test field strength | 100 A/m |
| Additional text | 60 s | Comments | Criterion A |
| Frequency | 50 Hz
60 Hz | Frequency range | 50 Hz ... 60 Hz |
| Test field strength | 1 kA/m | Additional text | 3 s |
| Frequency | 0 Hz | Test field strength | 300 A/m |
| Additional text | DC, 60 s | Standards/regulations | EN 61000-4-11 |
| Voltage | 100 V AC | Frequency | 60 Hz |
| Voltage dip | 70 % | Number of periods | 0.5 / 1 / 30 periods |
| Additional text | Test Level 2 | Comments | Criterion A |
| Voltage dip | 40 % | Number of periods | 5 / 10 / 50 periods |
| Additional text | Test Level 2 | Comments | Criterion B |
| Voltage dip | 0 % | Number of periods | 0.5 / 1 / 5 / 50 periods |
| Additional text | Test Level 2 | Comments | Criterion B |
| Standards/regulations | EN 61000-4-9 | Test field strength | 1000 A/m |
| Comments | Criterion A | Standards/regulations | EN 61000-4-12 |
| Input | 2 kV (symmetrical)
4 kV (asymmetrical) | Comments | Criterion A |
| Test level 1 | 16.67 Hz 50 Hz 60 Hz (Test Level 3) | Voltage | 30 V (Permanent) |
| Test level 2 | 16.67 Hz 50 Hz 60 Hz (Test Level 4) | Voltage | 300 V (1 s) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-18 |
| Input/Output/Signal | 1 kV (symmetrical)
2.5 kV (asymmetrical) | Comments | Criterion B |
| Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
