Product Model

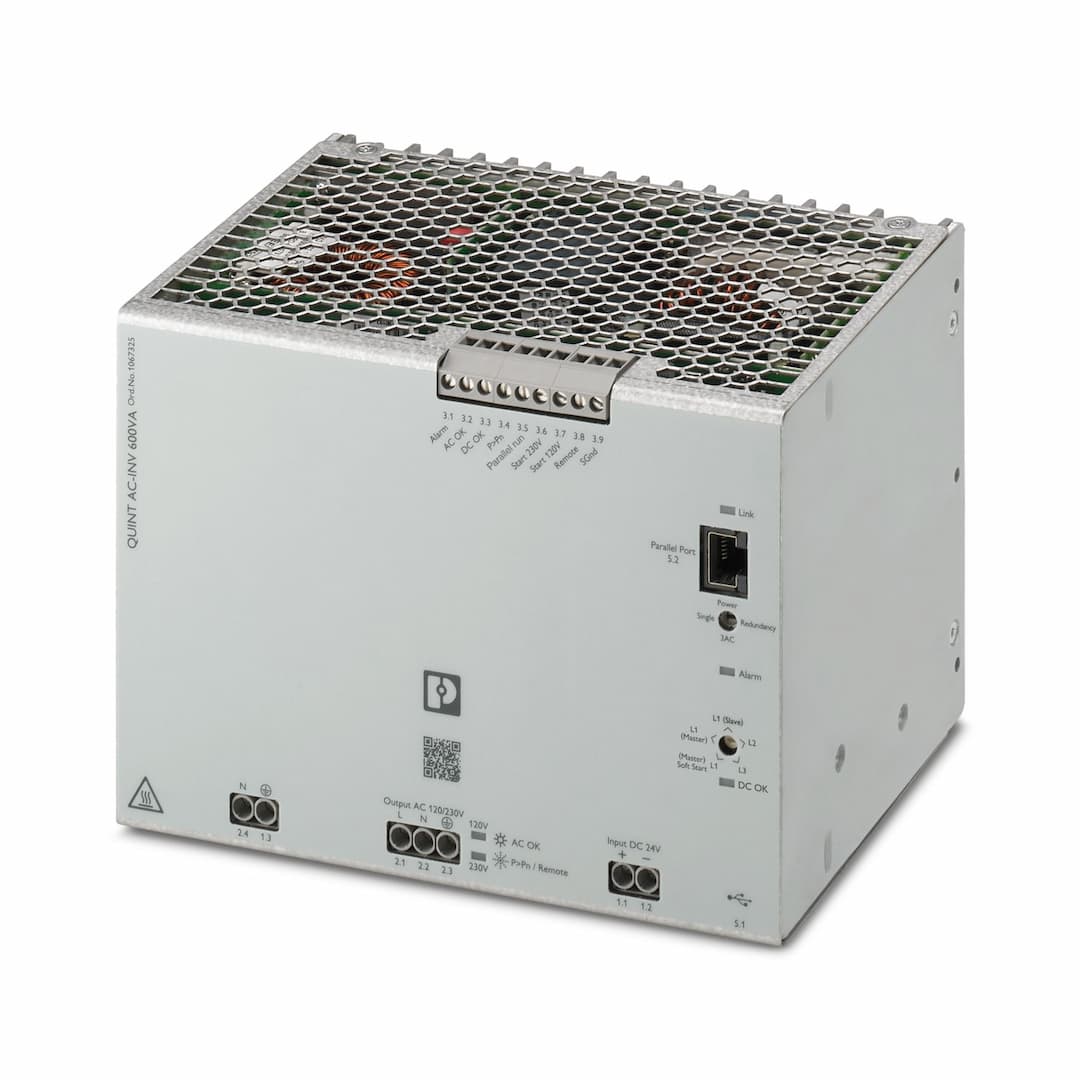

QUINT4-INV/24DC/1AC/600VA/USB
Key Features
- 1Generates clean AC power with a pure sine curve.
- 2Allows worldwide use with manual selection of AC output voltage via signal terminal.
- 3Integrates seamlessly with industrial PCs via USB interface for easy communication.
- 4Can be connected in parallel to increase power or generate a 3-phase grid.
- 5Achieves high efficiency with over 86% efficiency at nominal load for 120V AC and over 87% for 230V AC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | 24 V DC | Input voltage range DC | 20 V DC ... 30 V DC |
| Current consumption | typ. 23 A
max. 28 A | Efficiency | > 86 % (120 V AC)
> 87 % (230 V AC) |
| Output voltage | 120 V AC ±2 % (100 V AC / 6 A...130 V AC / 4,6 A)
230 V AC ±2 % (200 V AC / 3 A...240 V / 2,5 A) | Form of output voltage | Pure sine |
| Nominal output current (I | 5 A (120 V AC)
2.6 A (230 V AC) | Maximum no-load power dissipation | typ. 21 W (120 V AC)
typ. 21 W (230 V AC) |
| Power loss nominal load max. | typ. 72 W (120 V AC)
typ. 66 W (230 V AC) | Nominal output frequency | 60 Hz 50 Hz ±0.5 % |
| Derating | 50 °C ... 60 °C (2.5 %/K) | Apparent power | 600 VA |
| Real power | 480 W | Power factor (cos phi) | 0.8 |
| Crest factor | 2.8 | Total harmonic distortion factor (THD) | < 3 % (linear load)
< 8 % (non-linear load) |
| Connection in parallel | yes
max. 3 | Connection in series | no |
| Overload capacity Mains operation | 105 % (Permanent)
120 % ... 150 % (20 s / 5 s, then shutdown) | Electronic current limitation | > 2,5 x I |
| Position | 1.x | Connection method | Screw connection |
| rigid | 0.2 mm² ... 6 mm² | flexible | 0.2 mm² ... 4 mm² |
| flexible with ferrule without plastic sleeve | 0.2 mm² ... 4 mm² | flexible with ferrule with plastic sleeve | 0.2 mm² ... 4 mm² |
| rigid (AWG) | 30 ... 10 | Stripping length | 8 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm | Drive form screw head | Slotted L |
| Position | 2.x | Connection method | Screw connection |
| rigid | 0.2 mm² ... 6 mm² | flexible | 0.2 mm² ... 4 mm² |
| flexible with ferrule without plastic sleeve | 0.2 mm² ... 4 mm² | flexible with ferrule with plastic sleeve | 0.2 mm² ... 4 mm² |
| rigid (AWG) | 30 ... 10 | Stripping length | 8 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm | Drive form screw head | Slotted L |
| Position | 3.x | Connection method | Screw connection |
| rigid | 0.2 mm² ... 1.5 mm² | flexible | 0.2 mm² ... 1.5 mm² |
| flexible with ferrule without plastic sleeve | 0.2 mm² ... 1.5 mm² | flexible with ferrule with plastic sleeve | 0.2 mm² ... 1.5 mm² |
| rigid (AWG) | 30 ... 12 | Stripping length | 8 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm | Drive form screw head | Slotted L |
| Interface | USB (Modbus/RTU) | Number of interfaces | 1 |
| Connection method | MINI-USB Type B | Connection marking | 5.1 |
| Locking | Screw | Transmission physics | USB 2.0 |
| Features | lockable | Maximum cable length | 3 m |
| Electrical isolation | yes | Interface | Parallel Port |
| Number of interfaces | 1 | Connection method | RJ45 |
| Connection marking | 5.2 | Locking | Locking clip |
| Electrical isolation | yes | Connection labeling | 3.6 |
| Low signal | Connection to SGnd with < 2.7 kΩ | High signal | Open (> 200 kΩ between Start and SGnd) |
| Connection labeling | 3.7 | Low signal | Connection to SGnd with < 2.7 kΩ |
| High signal | Open (> 200 kΩ between Start and SGnd) | Connection labeling | 3.8 |
| Low signal | Connection to SGnd with < 2.7 kΩ | High signal | Open (> 35 kΩ between Remote and SGnd) |
| Connection labeling | 3.2 | Signalization designation | AC OK |
| Type of signaling | LED (green) | Switching output | Transistor output, active |
| Output voltage | 24 V | Continuous load current | ≤ 20 mA |
| LED status indicator | green | Connection labeling | 3.3 |
| Signalization designation | DC OK | Switching output | Transistor output, active |
| Output voltage | 24 V | Continuous load current | ≤ 20 mA |
| LED status indicator | green | Connection labeling | 3.1 |
| Signalization designation | Alarm | Type of signaling | LED red |
| Switching output | Transistor output, active | Output voltage | 24 V |
| Continuous load current | ≤ 20 mA | LED status indicator | red |
| Connection labeling | 3.4 | Signalization designation | P>P |
| Switching output | Transistor output, active | Continuous load current | ≤ 20 mA |
| LED status indicator | green | Connection labeling | 3.5 |
| Signalization designation | Parallel run | Switching output | Transistor output, active |
| Continuous load current | ≤ 20 mA | Connection labeling | 3.9 |
| Function | Signal ground | Reference potential | For signal inputs and signal outputs |
| Number of phases | 1.00 | Product type | DC/AC inverters |
| Product family | QUINT INVERTER | MTBF (IEC 61709, SN 29500) | 532525 h (40 °C) |
| Article revision | 02 | Protection class | I |
| Degree of pollution | 2 | Width | 180 mm |
| Height | 130 mm | Depth | 125 mm |
| Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
| Mounting type | DIN rail mounting | Housing material | Metal |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C (> 50 °C: 2,5 % / K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Maximum altitude | ≤ 3000 m (> 2000 m: 0,6 % / 100 m) |
| Max. permissible relative humidity (operation) | ≤ 95 % | Shock | 20g in all directions (EN 60068-2-27) |
| Vibration (operation) | 5 Hz ... 100 Hz, 0.7g (EN 60068-2-6) | EN 61010-2-201 | II |
| Identification | UL/C-UL Recognized UL 1778 | Identification | UL/C-UL Listed UL 61010-1 |
| Identification | UL/C-UL Listed UL 61010-2-201 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | Interference emission | Noise emission in accordance with EN 61000-6-4 |
| Noise immunity | Immunity in accordance with EN 61000-6-2 | Conducted noise emission | EN 61000-6-4 |
| Standards/regulations | EN 61000-4-2 | Contact discharge | ± 6 kV |
| Discharge in air | ± 8 kV | Comments | Criterion A |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 6 GHz |
| Test field strength | 10 V/m | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | ± 2 kV |
| Output | ± 2 kV | Signal | ± 2 kV
± 2 kV (USB) |
| Comments | Criterion A (B for USB) | Standards/regulations | EN 61000-4-5 |
| Input | ± 1 kV (symmetrical)
± 2 kV (asymmetrical) | Output | ± 1 kV (symmetrical)
± 2 kV (asymmetrical) |
| Signal | 1 kV (asymmetrical) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-6 | Frequency range | 0.15 MHz ... 80 MHz |
| Signal | 10 V | Comments | Criterion A |
| Standards/regulations | EN 61000-4-8 | Frequency | 50 Hz
60 Hz |
| Signal | 30 A/m | Comments | Criterion A |
| Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
