Product Model

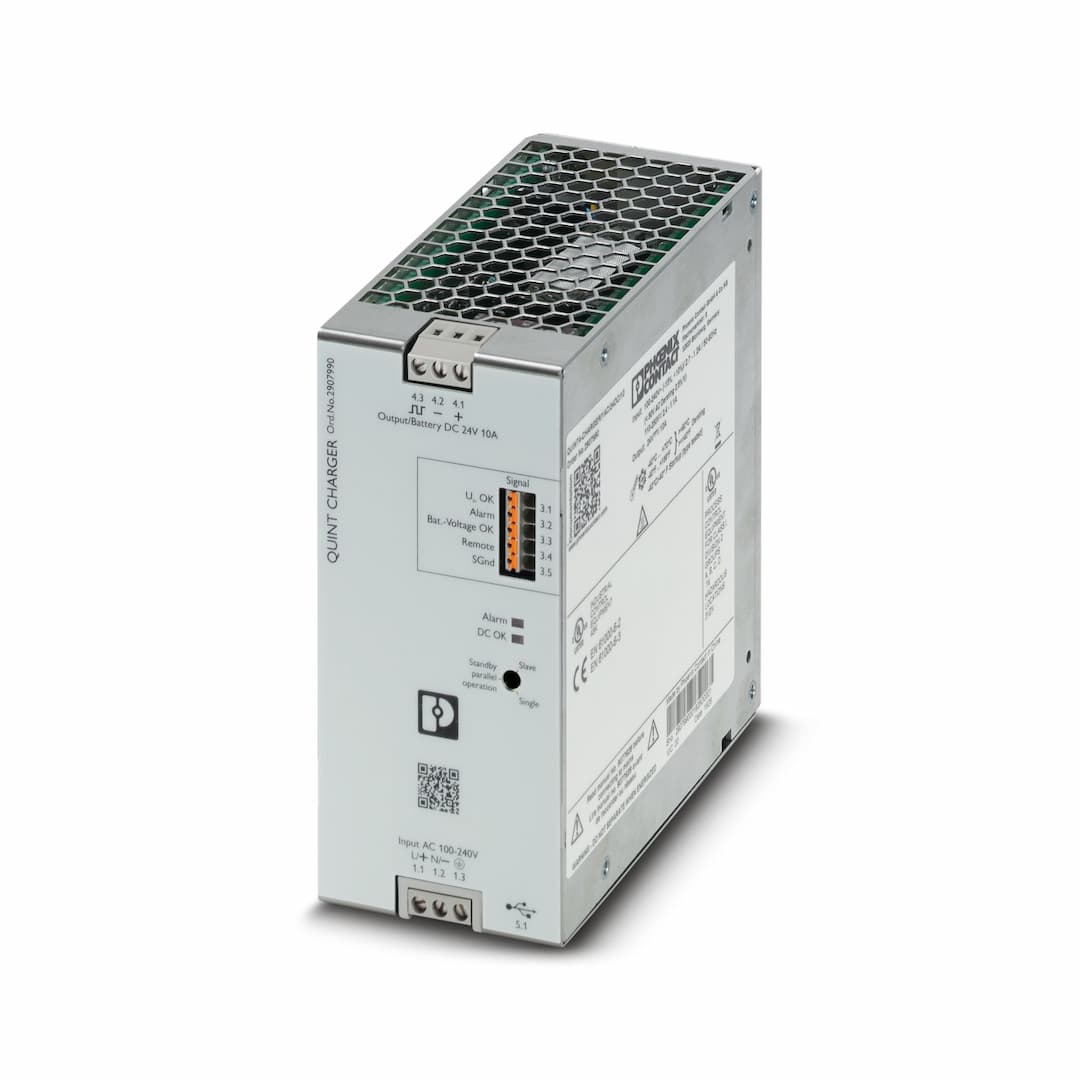

QUINT4-CHARGER/1AC/24DC/10
Key Features
- 1High efficiency up to 91% for optimal power utilization.
- 2Adjustable output voltage range from 19.2V to 28.6V DC.
- 3Nominal output current of 10A for reliable charging.
- 4Compact design with DIN rail mounting for easy installation.
- 5Short-circuit and no-load proof for enhanced safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Charger | Product family | QUINT CHARGER |
| MTBF (IEC 61709, SN 29500) | > 500000 h (230 V AC, at 40 °C) | Article revision | 02 |
| Protection class | I | Degree of pollution | 2 |
| Number of phases | 1.00 | Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % |
| Derating | < 90 V AC (2.5 %/V) | Frequency range (f | 50 Hz ... 60 Hz ±10 % |
| Current consumption | 2.7 A (100 V AC)
1.2 A (240 V AC) | Input fuse | 6.3 A (internal (device protection), slow-blow) |
| Recommended breaker for input protection | 10 A ... 16 A (AC: Characteristic B, C, D, K, or comparable) | Input voltage range | 110 V DC ... 250 V DC |
| Current consumption | 2.4 A (110 V DC)
1.1 A (250 V DC) | Designation | Remote / Service |
| Efficiency | 89 %
91 % | Nominal output voltage | 24 V DC |
| Setting range of the output voltage (U | 19.2 V DC ... 28.6 V DC | Nominal output current (I | 10 A |
| Residual ripple | < 20 mV | Short-circuit-proof | yes |
| No-load proof | yes | Output power | 240 W |
| Maximum no-load power dissipation | < 4 W (at 230 V AC) | Power loss nominal load max. | < 35 W (at 230 V AC) |
| Connection in parallel | no | Connection in series | no |
| Output voltage | 24 V DC | Continuous load current | 20 mA |
| Signal ground SGnd | Reference ground signal contacts | Output voltage | 24 V DC |
| Continuous load current | 20 mA | Signal ground SGnd | Reference ground signal contacts |
| Output voltage | 24 V DC | Continuous load current | 20 mA |
| Signal ground SGnd | Reference ground signal contacts | Nominal voltage U | 24 V DC |
| Charging voltage | max. 32 V DC | Charging current | typ. 10 A |
| Nominal capacity range | 7 Ah ... 300 Ah | Battery technology | VRLA, VRLA-WTR, LI-ION (LiFePO |
| Charge characteristic curve | IU | Connection method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 2.5 mm² |
| Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
| Stripping length | 6.5 mm | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Connection method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 2.5 mm² |
| Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
| Stripping length | 6.5 mm | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Connection method | Push-in connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 1.5 mm² |
| Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 1.5 mm² |
| Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm | Interface | MINI-USB type B |
| Signalization designation | U | Status display | LED (green) |
| Signalization designation | Bat.-Voltage OK | Status display | LED (green) |
| Signalization designation | Alarm | Status display | LED (red) |
| Signalization designation | Reference potential for the signal inputs and outputs | Width | 60 mm |
| Height | 130 mm | Depth | 126 mm |
| Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
| Width | 123 mm | Height | 130 mm |
| Depth | 63 mm | Housing material | Metal |
| Hood version | High-grade steel plate | Side element version | Aluminum |
| Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Maximum altitude | ≤ 4000 m (> 2000 m, observe derating) |
| Climatic class | 3K3 (EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at +25 °C, non-condensing) |
| Shock | 30g, 18 ms in accordance with IEC 60068-2-27 | Vibration (operation) | 2 Hz ... 15 Hz, ±2.5 mm amplitude; 15 Hz ... 150 Hz, 2.3g |
| UL approvals | UL Listed UL 61010-1
UL/C-UL Listed ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C | Identification | UL Listed UL 61010 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) | Noise immunity | Immunity in accordance with EN 61000-6-2 (industrial) |
| Conducted noise emission | EN 61000-6-3 (Class B) | Noise emission | EN 61000-6-3 (Class B) |
| Frequency range | 0 kHz ... 2 kHz | Standards/regulations | EN 61000-4-2 |
| Contact discharge | 6 kV (Test Level 3) | Discharge in air | 8 kV (Test Level 3) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 1 GHz | Test field strength | 10 V/m (Test Level 3) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
| Input | 2 kV (Test Level 3 - asymmetrical) | Output | 1 kV (Test Level 2 - asymmetrical) |
| Signal | 1 kV (Test Level 2 - asymmetrical) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 | Input | 1 kV (Test Level 2 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
| Output | 0.5 kV (Test Level 1 - symmetrical)
1 kV (Test Level 1 - asymmetrical) | Signal | 1 kV (Test Level 2 - asymmetrical) |
| Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
| I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
| Comments | Criterion A | Voltage | 10 V (Test Level 3) |
| Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Standard – Safety extra-low voltage | IEC 61010 (SELV) / (PELV) | Standard - Safe isolation | DIN VDE 0100-410 |
| Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 | EN 61010-1 | II |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
