Product Model

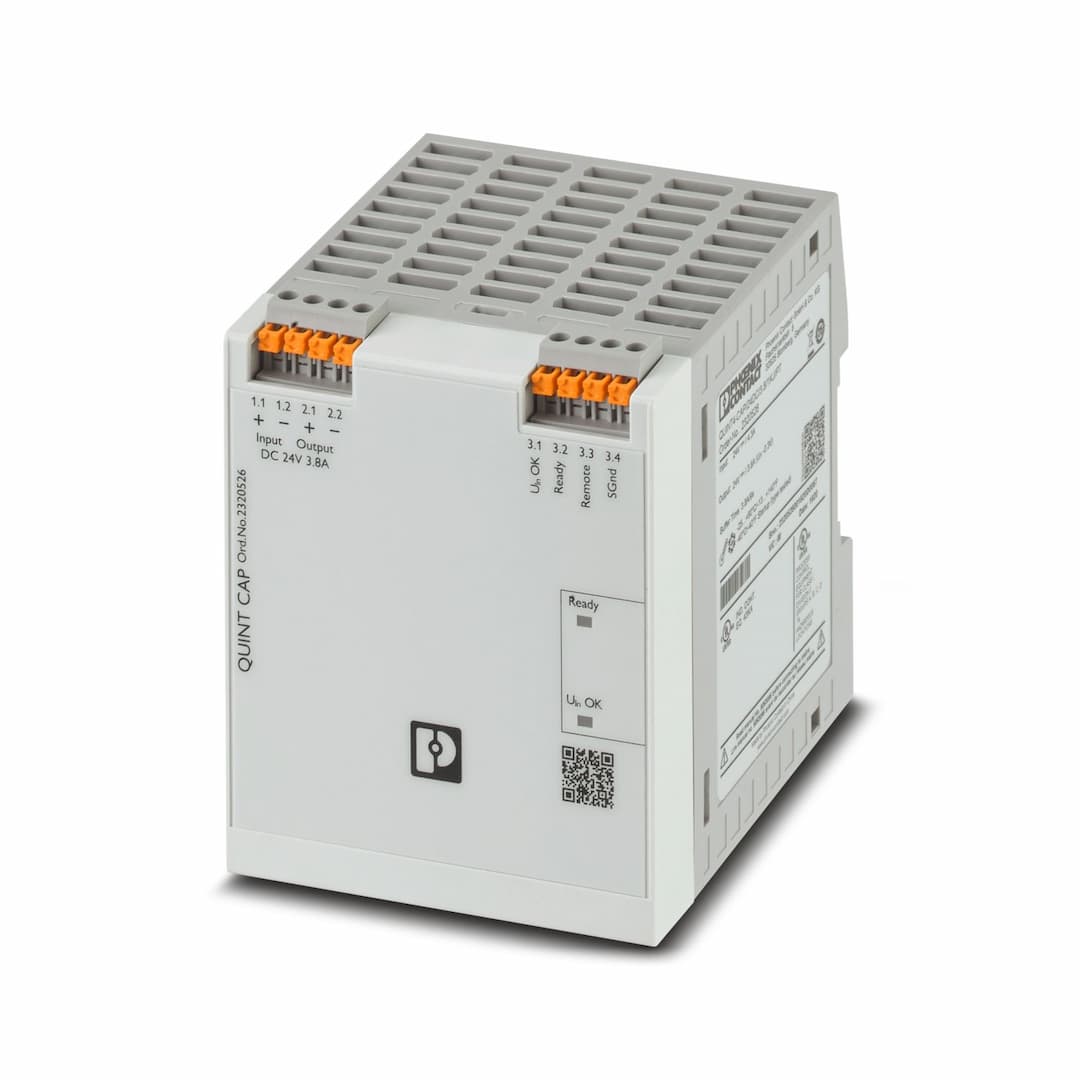

QUINT4-CAP/24DC/3.8/1KJ/PT
Key Features
- 1High efficiency (> 97%) minimizes energy loss and reduces operating costs.
- 2Fast charging time of only 4 minutes ensures quick backup readiness.
- 3Robust design with maintenance-free double-layer capacitor-based energy storage.
- 4Compatible with DIN rail mounting for easy installation in industrial settings.
- 5Meets stringent EMC and safety standards, including EN 60721 and EN 61000 directives.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | 24 V DC (SELV) | Input voltage range | 22.5 V DC ... 30 V DC |
| Fixed backup threshold | < 22 V DC | Current consumption I | 4.3 A |
| Current consumption I | 0.08 A | Current consumption I | 0.43 A |
| Buffer time | 9 s (3.8 A)
30 s (1 A) | Charging time | 4 min (0.43 A) |
| Recharging time | 3 min (0.43 A) | Efficiency | > 97 % (with charged energy storage device) |
| Connection in parallel | yes
max. 2 (with decoupling module) | Connection in series | no |
| Output voltage | 24 V DC (depending on the input voltage) | Output current I | 3.8 A |
| Output power P | 91.2 W | Maximum no-load power dissipation | < 2 W |
| Output voltage | 24 V DC | Output current I | 3.8 A |
| Capacity | 1 kJ | Storage medium | Double-layer capacitor |
| Buffer time | 9 s (3.8 A)
30 s (1 A) | Connection method | Push-in connection |
| rigid | 0.2 mm² ... 2.5 mm² | flexible | 0.2 mm² ... 2.5 mm² |
| flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² | flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm² |
| rigid (AWG) | 24 ... 14 | Stripping length | 10 mm |
| Connection method | Push-in connection | rigid | 0.2 mm² ... 2.5 mm² |
| flexible | 0.2 mm² ... 2.5 mm² | flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² |
| flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm² | rigid (AWG) | 24 ... 14 |
| Stripping length | 10 mm | Connection method | Push-in connection |
| rigid | 0.2 mm² ... 2.5 mm² | flexible | 0.2 mm² ... 2.5 mm² |
| flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² | flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm² |
| rigid (AWG) | 24 ... 14 | Stripping length | 10 mm |
| Connection labeling | 3.3 | State (configurable) | Remote |
| State condition | Remote | Connection labeling | 3.1 |
| Switching output | Transistor output, active | State (configurable) | U |
| Output voltage | 24 V (U | Output can be loaded | 20 mA |
| LED status indicator | green (U | Signal threshold | Input voltage in the valid range |
| Connection labeling | 3.2 | Switching output | Transistor output, active |
| State (configurable) | Ready | State condition (configurable) | State of charge = 100% or buffer mode |
| Output voltage | 24 V (U | Output can be loaded | 20 mA |
| Connection labeling | 3.4 | Function | Signal ground |
| Reference potential | U | Insulation voltage input, output / housing | 500 V |
| Product type | DC UPS with integrated capacitor | Product family | QUINT capacity module |
| MTBF (IEC 61709, SN 29500) | 996550 h (40 °C)
1631804 h (25 °C)
449865 h (60 °C) | Article revision | 02 |
| Protection class | III | Overvoltage category | II |
| Degree of pollution | 2 | Width | 85 mm |
| Height | 102.5 mm | Depth | 90 mm |
| Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
| Mounting type | DIN rail mounting | Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
| Mounting position | Any, on NS 35 DIN rail | Housing material | Plastic |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 60 °C | Ambient temperature (start-up type tested) | -40 °C |
| Maximum altitude | ≤ 4000 m | Climatic class | 3K3 (in acc. with EN 60721) |
| Max. permissible relative humidity (operation) | ≤ 95 % | Identification | UL Listed UL 61010-1 |
| Identification | UL Listed UL 61010-2-201 | Identification | UL 121201 |
| Identification | CSA C22.2 No. 223 class 2 (buffer mode) | Identification | CAN/CSA-C22.2 No. 61010-1-12 |
| Identification | CAN/CSA C22.2 No. 61010-2-201:14 | Identification | CSA C22.2 No. 213-17 |
| Identification | UL 1310 class 2 (buffer mode) | Identification | IEC 61010-1
IEC 61010-2-201
EN 61010-1
EN 61010-2-201 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| Noise emission | EN 61000-6-3 | Standards/regulations | EN 61000-4-2 |
| Contact discharge | 6 kV (Test Level 3) | Discharge in air | 8 kV (Test Level 3) |
| Comments | Criterion B | Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 6 GHz | Test field strength | 10 V/m |
| Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
| Input | 2 kV (Test Level 3 - asymmetrical) | Output | 2 kV (Test Level 3 - asymmetrical) |
| Signal | 2 kV (Test Level 4 - asymmetrical) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 | Input | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
| Output | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Signal | 1 kV (Test Level 1 - asymmetrical) |
| Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
| Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
| Voltage | 10 V | Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
