Product Model

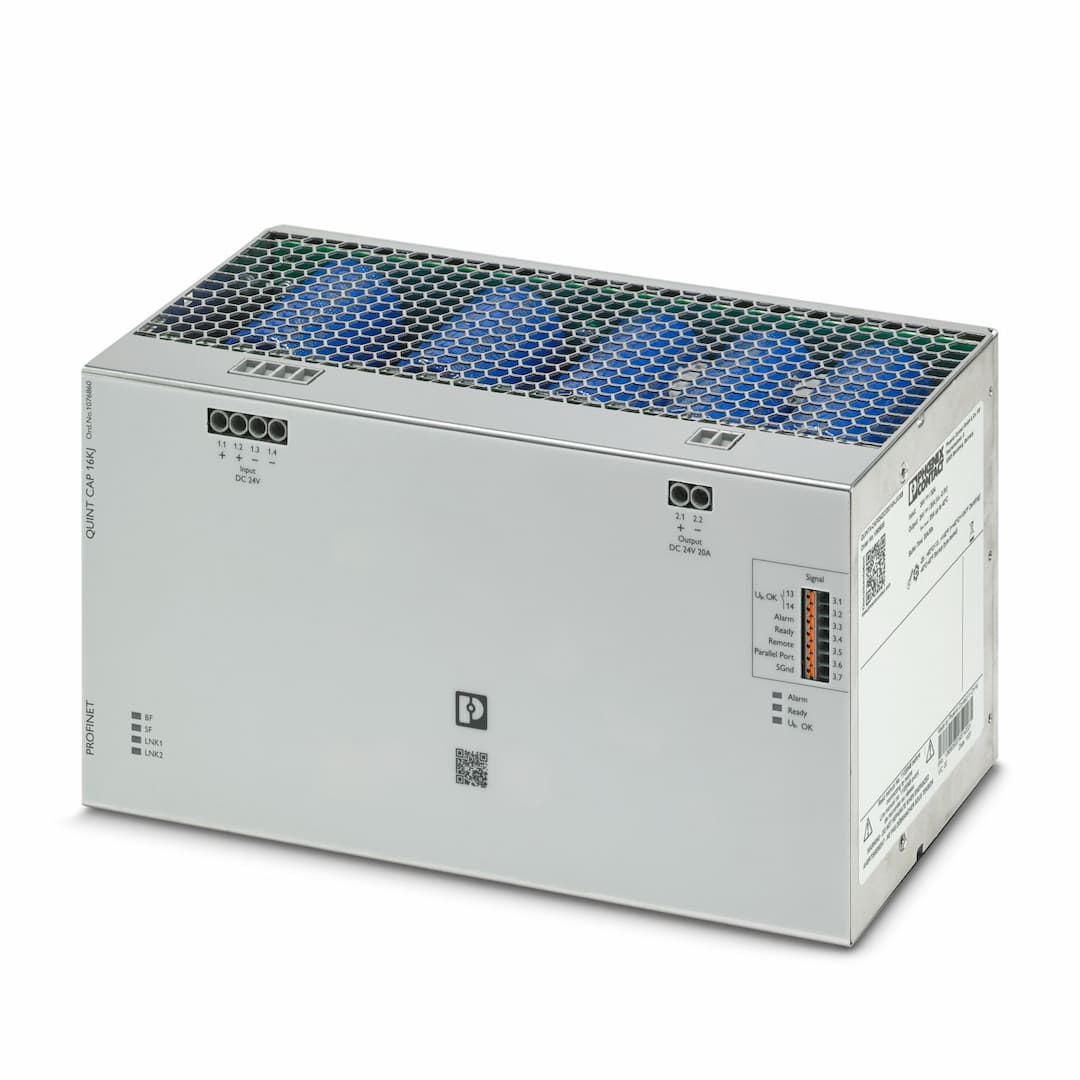

QUINT4-CAP/24DC/20/16KJ/PN
Key Features
- 1Stores up to 16 kJ of energy for reliable power buffering.
- 2Built with maintenance-free double-layer capacitors for long service life.
- 3DIN rail mounting for easy installation in industrial settings.
- 4Supports various interfaces like PROFINET, EtherNet/IP, and EtherCAT.
- 5Achieves over 98% efficiency with charged energy storage device.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | 24 V DC (SELV) | Input voltage range | 22.5 V DC ... 30 V DC |
| Fixed backup threshold | < 22 V DC
> 30 V DC | Current consumption I | 20 A |
| Current consumption I | 30 A | Current consumption I | 0.1 A (No-load) |
| Current consumption I | 10 A (charging process) | Power consumption P | 599 W |
| Power consumption P | 488 W | Power consumption P | 244 W |
| Buffer time | 4 min (2.5 A)
30 s (20 A) | Charging time | approx. 6.3 min (2.5 A)
approx. 2.1 min (10 A) |
| Recharging time | approx. 5.4 min (2.5 A)
approx. 1.4 min (10 A) | Inrush current | ≤ 7 A (≤ 4 ms) |
| Switch-on time | 1 ms (buffer mode) | Internal input fuse | no |
| Dielectric strength | max. 35 V DC (Reverse polarity protection) | Voltage drop, input/output | 0.5 V DC |
| Efficiency | > 98 % (with charged energy storage device) | Connection in parallel | yes
max. 4 |
| Connection in series | no | Output voltage | 24 V DC |
| Output current I | 20 A | Static Boost (I | 25 A |
| Output power P | 480 W | Output power P | 600 W |
| Power dissipation No load (U | 5 W | Power dissipation Nominal load (U | 10 W |
| Short-circuit-proof | yes (with input fuse) | Idling-proof | yes |
| Output voltage | 24 V DC | Output current I | 20 A |
| Static Boost (I | 25 A | Output power P | 480 W |
| Output power P | 600 W | Power dissipation No load (U | 5 W |
| Power dissipation Nominal load (U | 90 W | Short-circuit-proof | yes |
| Idling-proof | yes | Capacity | 16 kJ |
| Storage medium | Double-layer capacitor | Buffer time | 4 min (2.5 A)
30 s (20 A) |
| Position | 1.x | Position marking | 1.1 (+), 1.2 (+), 1.3 (-), 1.4 (-) |
| Connection method | Screw connection | rigid | 0.2 mm² ... 6 mm² |
| flexible | 0.2 mm² ... 4 mm² | flexible with ferrule without plastic sleeve | 0.25 mm² ... 4 mm² |
| flexible with ferrule with plastic sleeve | 0.25 mm² ... 4 mm² | rigid (AWG) | 24 ... 10 |
| Stripping length | 8 mm | Tightening torque | 0.5 Nm ... 0.6 Nm |
| Drive form screw head | Slotted L | rigid | 0.2 mm² ... 1.5 mm² |
| flexible | 0.2 mm² ... 1.5 mm² | flexible with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
| Position | 2.x | Position marking | 2.1 (+), 2.2 (-) |
| Connection method | Screw connection | rigid | 0.2 mm² ... 6 mm² |
| flexible | 0.2 mm² ... 4 mm² | flexible with ferrule without plastic sleeve | 0.25 mm² ... 4 mm² |
| flexible with ferrule with plastic sleeve | 0.25 mm² ... 4 mm² | rigid (AWG) | 24 ... 10 |
| Stripping length | 8 mm | Tightening torque | 0.5 Nm ... 0.6 Nm |
| Drive form screw head | Slotted L | rigid | 0.2 mm² ... 1.5 mm² |
| flexible | 0.2 mm² ... 1.5 mm² | flexible with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
| Position | 3.x | Position marking | 3.1 (13), 3.2 (14), 3.3 (Alarm), 3.4 (Ready), 3.5 (Remote), 3.6 (Parallel Port), 3.7 (SGnd) |
| Connection method | Push-in connection | rigid | 0.2 mm² ... 1 mm² |
| flexible | 0.2 mm² ... 1.5 mm² | flexible with ferrule without plastic sleeve | 0.2 mm² ... 1 mm² |
| flexible with ferrule with plastic sleeve | 0.2 mm² ... 0.75 mm² | rigid (AWG) | 24 ... 18 |
| Stripping length | 8 mm | Interface | PROFINET |
| Number of interfaces | 2 | Connection method | RJ45 |
| Position | 5.x | Supported protocols | PROFINET |
| Locking | Locking clip | Transmission physics | Twisted-Pair |
| Features | Autonegotiation
Autocrossing
Autopolarity
Half- or full-duplex | Topology | Star
Line |
| Transmission speed | 100 Mbps | Transmission length | max. 100 m |
| Cycle time | 1 ms (RT) | Access time | ≤ 2 s |
| Standards | IEEE 802.3
IEC 61158
IEC 61784-2 | Chipset | Renesas TPS-1 |
| Electrical isolation | yes | Connection labeling | 3.5 |
| Channel | DI (digital input) | State (configurable) | Remote |
| State condition | Remote | Low signal | Connection to SGnd with |
| High signal | Open | Signal - state assignment | low - active |
| Reference potential | 3.7 (SGnd, identical to1.3, 1.4, 2.2) | Connection labeling | 3.6 |
| Channel | DI / DO (digital input / digital output) | Switching input description | Connection terminal block communication, parallel operation |
| State (configurable) | Parallel Mode | State condition (configurable) | Not active: none |
| Switching voltage | < 1 V
24 V (U | Current carrying capacity | 3 mA |
| Reference potential | Different device, parallel port IN/OUT | Connection labeling | 3.3 |
| Channel | DO (digital output) | Switching output | Transistor |
| State (configurable) | Group alarm | State condition (configurable) | Alarm threshold |
| Output voltage | 25 V (U | Output can be loaded | max. 20 mA |
| State - signal assignment | active - low | Reference potential | 3.7 (SGnd, identical to1.3, 1.4, 2.2) |
| LED status indicator | red (Alarm) | Connection labeling | 3.1, 3.2 |
| Channel | DO (digital output) | Switching output | Electronic relays (OptoMOS) |
| State (configurable) | U | State condition (configurable) | U |
| Output voltage | max. 30 V | Output can be loaded | 300 mA |
| State - signal assignment | active - high | LED status indicator | green (U |
| Connection labeling | 3.4 | Channel | DO (digital output) |
| Switching output | Transistor | State (configurable) | Ready |
| State condition (configurable) | State of charge = 100% or buffer mode | Output voltage | 25 V (U |
| Output can be loaded | max. 20 mA | State - signal assignment | active - high |
| Reference potential | 3.7 (SGnd, identical to1.3, 1.4, 2.2) | LED status indicator | Green (state of charge - SOC) |
| Connection labeling | 3.7 | Switching voltage | 0 V |
| Current carrying capacity | max. 60 mA | Function | Signal ground |
| Reference potential | 3.3 Alarm, 3.4 Ready, 3.5 Remote | Insulation voltage input, output / housing | 500 V |
| Product type | DC UPS with integrated capacitor | Product family | QUINT capacity module |
| MTBF (IEC 61709, SN 29500) | 1351036 h (25 °C)
903325 h (40 °C)
470143 h (60 °C) | Article revision | 02 |
| Protection class | III (Special application (SELV)) | Overvoltage category | II |
| Degree of pollution | 2 | Width | 244 mm |
| Height | 130 mm | Depth | 125 mm |
| Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
| Mounting type | DIN rail mounting | Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Metal |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C (> 40 °C Derating: 1 %/K) |
| Ambient temperature (storage/transport) | -40 °C ... 60 °C | Ambient temperature (start-up type tested) | -40 °C |
| Maximum altitude | ≤ 4000 m | Climatic class | 3K3 (in acc. with EN 60721) |
| Max. permissible relative humidity (operation) | ≤ 95 % | Shock | 30g, 18 ms per spatial direction (in accordance with IEC 60068-2-27) |
| Vibration (operation) | 0,7g | EN 61010-1 | II (≤ 4000 m) |
| EN 61010-2-201 | II (≤ 4000 m) | UL 60950-1 | II (≤ 4000 m) |
| Standard designation | Protective extra-low voltage | Standards/specifications | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) |
| Identification | UL 61010-1 | Identification | UL 61010-2-201 |
| Identification | UL 121201 | Identification | CAN/CSA-C22.2 No. 61010-1-12 |
| Identification | CAN/CSA C22.2 No. 61010-2-201:14 | Identification | CSA C22.2 No. 213-17 Class I, Devsion 2, Groups A, B, C, D (Hazardous Location) |
| Identification | IEC 61010-1
IEC 61010-2-201
EN 61010-1
EN 61010-2-201 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Interference emission | Noise emission in accordance with EN 61000-6-3 and EN 61000-6-4 | Noise immunity | Device immunity in accordance with EN 61000-6-2 |
| Standards/regulations | EN 61000-4-2 | Contact discharge | 4 kV (Test Level 2) |
| Discharge in air | 8 kV (Test Level 3) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
| Test field strength | 10 V/m | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | 2 kV (Test Level 3 - asymmetrical) |
| Output | 2 kV (Test Level 3 - asymmetrical) | Signal | 2 kV (Test Level 3 - asymmetrical) |
| Comments | Criterion B | Standards/regulations | EN 61000-4-5 |
| Signal | 1 kV (Test Level 2 - asymmetrical) | Comments | Criterion B |
| Input/Output | 1 kV (Test Level 2 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Standards/regulations | EN 61000-4-6 |
| Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
| Voltage | 10 V | Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
