Product Model

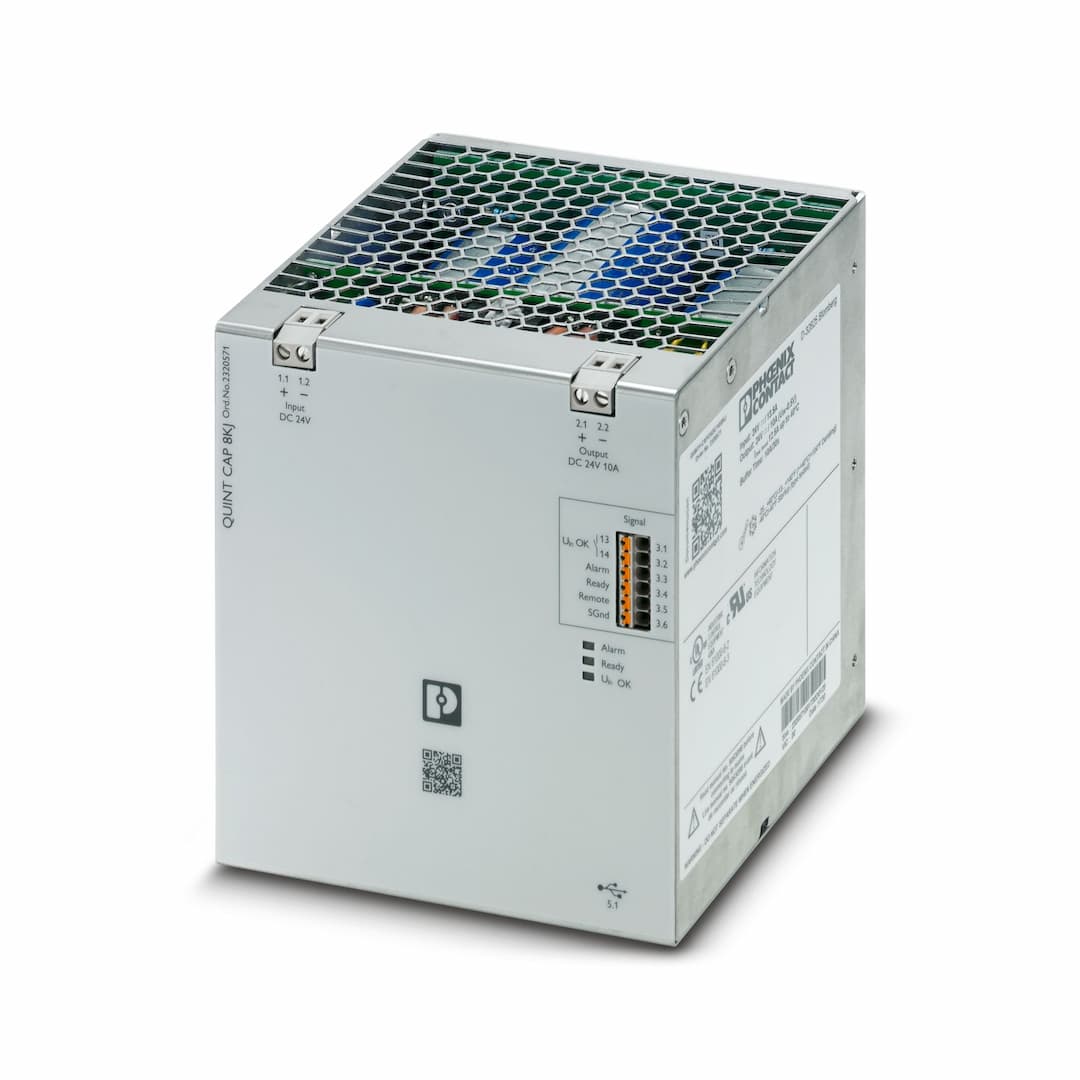

QUINT4-CAP/24DC/10/8KJ
Key Features
- 1Reliable Power Supply: The QUINT4-CAP/24DC/10/8KJ buffer module ensures a stable output voltage of 24V DC and a current of 10A.
- 2Maintenance-Free Energy Storage: Equipped with double-layer capacitor-based energy storage, this module is designed for long service life and minimal maintenance.
- 3Compact Design: The compact design saves space and is DIN rail mountable, making it perfect for industrial applications.
- 4High Buffer Time: Offers up to 30 seconds of buffer time during cyclical failures, ensuring continuous operation.
- 5Robust Electrical and Mechanical Design: Built to withstand harsh ambient conditions, ensuring reliable supply of all loads even in challenging environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | 24 V DC (SELV) | Input voltage range | 22.5 V DC ... 30 V DC |
| Fixed backup threshold | < 22 V DC
> 30 V DC | Current consumption I | 13.5 A (max.) |
| Current consumption I | 13.5 A | Current consumption I | 0.1 A (No-load) |
| Current consumption I | 1 A (charging process) | Power consumption P | 324 W |
| Power consumption P | 245 W | Power consumption P | 24 W |
| Buffer time | 5 min (1 A)
30 s (10 A)
30 s (10 A) | Charging time | approx. 22 min |
| Recharging time | approx. 12 min | Inrush current | ≤ 7 A ( 4 ms) |
| Switch-on time | 1 ms (buffer mode) | Internal input fuse | no |
| Dielectric strength | max. 35 V DC (Reverse polarity protection) | Voltage drop, input/output | 0.5 V DC |
| Efficiency | > 97 % (with charged energy storage device) | Connection in parallel | no |
| Connection in series | no | Output voltage | 24 V DC (depending on the input voltage) |
| Output current I | 10 A | Static Boost (I | 12.5 A |
| Output power P | 240 W | Output power P | 300 W |
| Power dissipation No load (U | 2.5 W | Power dissipation Nominal load (U | 6 W |
| Short-circuit-proof | yes (with input fuse) | Idling-proof | yes |
| Output voltage | 22 V DC (typical) | Output current I | 10 A (depending on output current) |
| Static Boost (I | 12.5 A | Output power P | 240 W |
| Output power P | 300 W | Short-circuit-proof | yes |
| Idling-proof | yes | Nominal capacity | 0.08 Ah |
| Capacity | 8 kJ | IQ-Technology | no |
| Storage medium | Double-layer capacitor | Buffer time | 5 min (1 A)
30 s (10 A)
30 s (10 A) |
| Position | 1.x | Position marking | 1.1 (+), 1.2 (-) |
| Connection method | Screw connection | rigid | 0.2 mm² ... 2.5 mm² |
| flexible | 0.2 mm² ... 2.5 mm² | flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² |
| flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm² | rigid (AWG) | 30 ... 12 |
| Stripping length | 6.5 mm | Tightening torque | 0.5 Nm ... 0.6 Nm |
| Drive form screw head | Slotted L | rigid | 0.2 mm² ... 0.75 mm² |
| flexible | 0.2 mm² ... 0.75 mm² | flexible with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
| Position | 2.x | Position marking | 2.1 (+), 2.2 (-) |
| Connection method | Screw connection | rigid | 0.2 mm² ... 2.5 mm² |
| flexible | 0.2 mm² ... 2.5 mm² | flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² |
| flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm² | rigid (AWG) | 30 ... 12 |
| Stripping length | 6.5 mm | Tightening torque | 0.5 Nm ... 0.6 Nm |
| Drive form screw head | Slotted L | rigid | 0.2 mm² ... 0.75 mm² |
| flexible | 0.2 mm² ... 0.75 mm² | flexible with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
| Position | 3.x | Connection method | Push-in connection |
| rigid | 0.2 mm² ... 1.5 mm² | flexible | 0.2 mm² ... 1.5 mm² |
| flexible with ferrule without plastic sleeve | 0.2 mm² ... 1.5 mm² | flexible with ferrule with plastic sleeve | 0.2 mm² ... 0.75 mm² |
| rigid (AWG) | 24 ... 18 | Stripping length | 8 mm |
| Interface | USB (Modbus/RTU) | Number of interfaces | 1 |
| Connection method | MINI-USB Type B | Position | 5.x |
| Locking | Screw | Transmission physics | USB 2.0 |
| Topology | Point-to-point | Transmission speed | 9600 baud |
| Transmission length | max. 5 m | Access time | ≤ 2 s |
| Chipset | Silicon Labs CP2104-F03-GM | Electrical isolation | Yes, UL approved |
| Connection labeling | 3.5 | Channel | DI (digital input) |
| State (configurable) | Remote | State condition | Remote |
| Low signal | <3 kΩ to SGnd | High signal | open (>470 k between Remote and SGnd) |
| Signal - state assignment | low - active | Reference potential | 3.6 (SGnd, identical to 1.2, 2.2) |
| Connection labeling | 3.3 | Channel | DO (digital output) |
| Switching output | Transistor | State (configurable) | Group alarm |
| State condition (configurable) | Alarm | Output voltage | 24 V (U |
| Output can be loaded | max. 20 mA | State - signal assignment | active - low |
| Reference potential | 3.6 (SGnd, identical to 1.2, 2.2) | LED status indicator | red (Alarm) |
| Connection labeling | 3.1, 3.2 | Channel | DO (digital output) |
| Switching output | Electronic relays (OptoMOS) | State (configurable) | U |
| State condition (configurable) | U | Output voltage | max. 30 V |
| Output can be loaded | 300 mA | State - signal assignment | active - high |
| LED status indicator | green (U | Connection labeling | 3.4 |
| Channel | DO (digital output) | Switching output | Transistor |
| State (configurable) | Ready | State condition (configurable) | State of charge = 100% or buffer mode |
| Output voltage | 24 V (U | Output can be loaded | max. 20 mA |
| State - signal assignment | active - high | Reference potential | 3.6 (SGnd, identical to 1.2, 2.2) |
| LED status indicator | Green (state of charge - SOC) | Connection labeling | 3.6 |
| Switching voltage | 0 V | Current carrying capacity | max. 60 mA |
| Function | Signal ground | Reference potential | 3.3 Alarm, 3.4 Ready, 3.5 Remote |
| Insulation voltage input, output / housing | 500 V | Product type | DC UPS with integrated capacitor |
| Product family | QUINT capacity module | MTBF (IEC 61709, SN 29500) | 2102818 h (25 °C)
1387185 h (40 °C)
697626 h (60 °C) |
| Article revision | 08 | Protection class | III (SELV) |
| Degree of pollution | 2 | Time | 83352 h |
| Width | 118 mm | Height | 130 mm |
| Depth | 125 mm | Installation distance right/left | 0 mm / 0 mm |
| Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
| Assembly note | alignable: horizontally 0 mm, vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Metal |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C (> 40 °C Derating: 1 %/K) |
| Ambient temperature (storage/transport) | -40 °C ... 60 °C | Ambient temperature (start-up type tested) | -40 °C |
| Maximum altitude | ≤ 4000 m | Climatic class | 3K3 (in acc. with EN 60721) |
| Max. permissible relative humidity (operation) | ≤ 95 % | Shock | 30g, 18 ms per spatial direction (in accordance with IEC 60068-2-27) |
| Vibration (operation) | 0,7g | UL 60950-1 | II |
| Standard designation | Protective extra-low voltage | Standards/specifications | UL 61010-2-201 |
| Identification | UL/C-UL Listed UL 508 | Identification | UL/C-UL Recognized UL 60950-1 |
| Identification | UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) | Identification | CAN/CSA-C22.2 No. 107.1-01 |
| Identification | UL 60950-1 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
| EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Noise emission | EN 55016
EN 61000-6-3 |
| Standards/regulations | EN 61000-4-2 | Contact discharge | 6 kV (Test Level 3) |
| Discharge in air | 8 kV (Test Level 3) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 6 GHz |
| Test field strength | 10 V/m | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | 2 kV (Test Level 3 - asymmetrical) |
| Output | 2 kV (Test Level 3 - asymmetrical) | Signal | 2 kV (Test Level 3 - asymmetrical) |
| Comments | Criterion B | Standards/regulations | EN 61000-4-5 |
| Signal | 1 kV (Test Level 2 - asymmetrical) | Comments | Criterion B |
| Input/Output | 1 kV (Test Level 2 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Standards/regulations | EN 61000-4-6 |
| Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
| Voltage | 10 V | Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
