Product Model

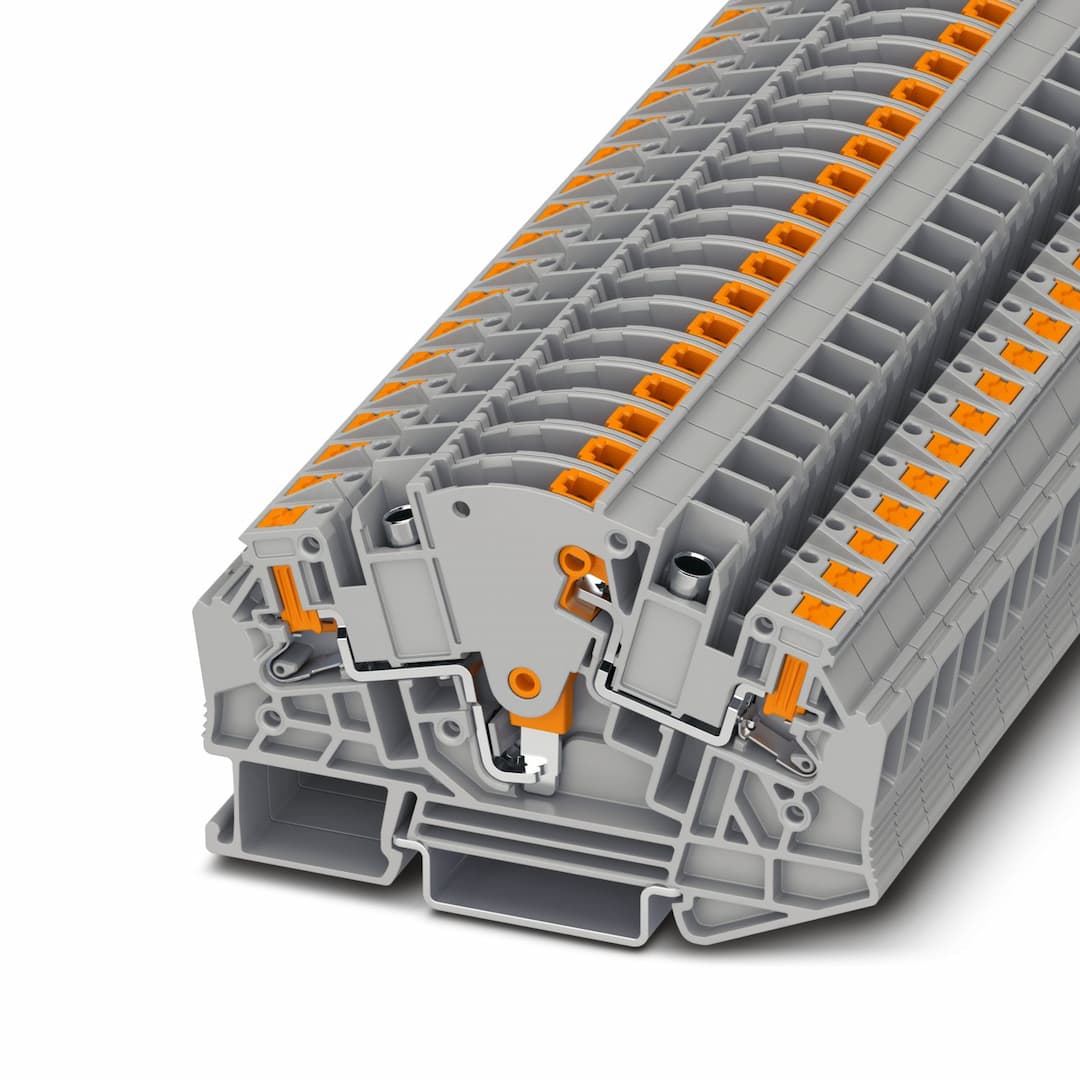

PTVME 6/S-P
Key Features
- 1Increased Safety with 1,000 V Nominal Voltage
- 2Compact Design with Overall Width Same as Screw Terminal Blocks
- 3Quick and Easy Actuation with Screw-Free Disconnect Slide
- 4Clearly Visible and Readily Apparent Switching State
- 5Meets IEC 60947-7-1 Standards for Reliable Connections
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Test disconnect terminal block | Number of connections | 2 |
| Number of rows | 1 | Potentials | 1 |
| Article revision | 03 | Overvoltage category | III |
| Degree of pollution | 3 | Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 1.31 W | Number of connections per level | 2 |
| Nominal cross section | 6 mm² | Stripping length | 10 mm ... 12 mm |
| Internal cylindrical gage | A4
B4 | Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 0.5 mm² ... 6 mm² | Cross section AWG | 20 ... 10 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 6 mm² | Conductor cross section, flexible [AWG] | 20 ... 10 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 6 mm² Connection only with corresponding crimp versions. | Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 6 mm² Connection only with corresponding crimp versions. |
| Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 0.5 mm² ... 2.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
| Nominal current | 30 A (with 6 mm² conductor cross section) | Maximum load current | 30 A (with 6 mm² conductor cross section) |
| Nominal voltage | 1000 V | Nominal cross section | 6 mm² |
| Conductor cross section rigid | 0.75 mm² ... 6 mm² | Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 6 mm² Connection only with corresponding crimp versions. |
| Flexible conductor cross section (ferrule with plastic sleeve) | 1 mm² ... 6 mm² Connection only with corresponding crimp versions. | Width | 8.2 mm |
| End cover width | 2.2 mm | Height | 82 mm |
| Depth on NS 35/7,5 | 54.5 mm | Depth on NS 35/15 | 62 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
| Insulating material group | I | Insulating material | PA |
| Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Test voltage setpoint | 9.8 kV |
| Result | Test passed | Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Result | Test passed | Short-time withstand current 4 mm² | 0.5 kA
0.15 kA
1.25 kA |
| Result | Test passed | Test voltage setpoint | 2.2 kV |
| Result | Test passed | Open side panel | Yes |
| Result | Test passed | Result | Test passed |
| Rotation speed | 10 rpm | Revolutions | 135 |
| Conductor cross section/weight | 0.5 mm² / 0.3 kg
6 mm² / 1.4 kg | Result | Test passed |
| Temperature cycles | 192 | Result | Test passed |
| Time of exposure | 30 s | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2018-05 | Spectrum | Service life test category 2, bogie-mounted |
| Frequency | f | ASD level | 6.12 (m/s²)²/Hz |
| Acceleration | 3.12g | Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis | Result | Test passed |
| Pulse shape | Half-sine | Acceleration | 30g |
| Shock duration | 18 ms | Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) | Result | Test passed |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Connection in acc. with standard | IEC 60947-7-1 | Mounting type | NS 35/15
NS 35/7,5 |
