Product Model

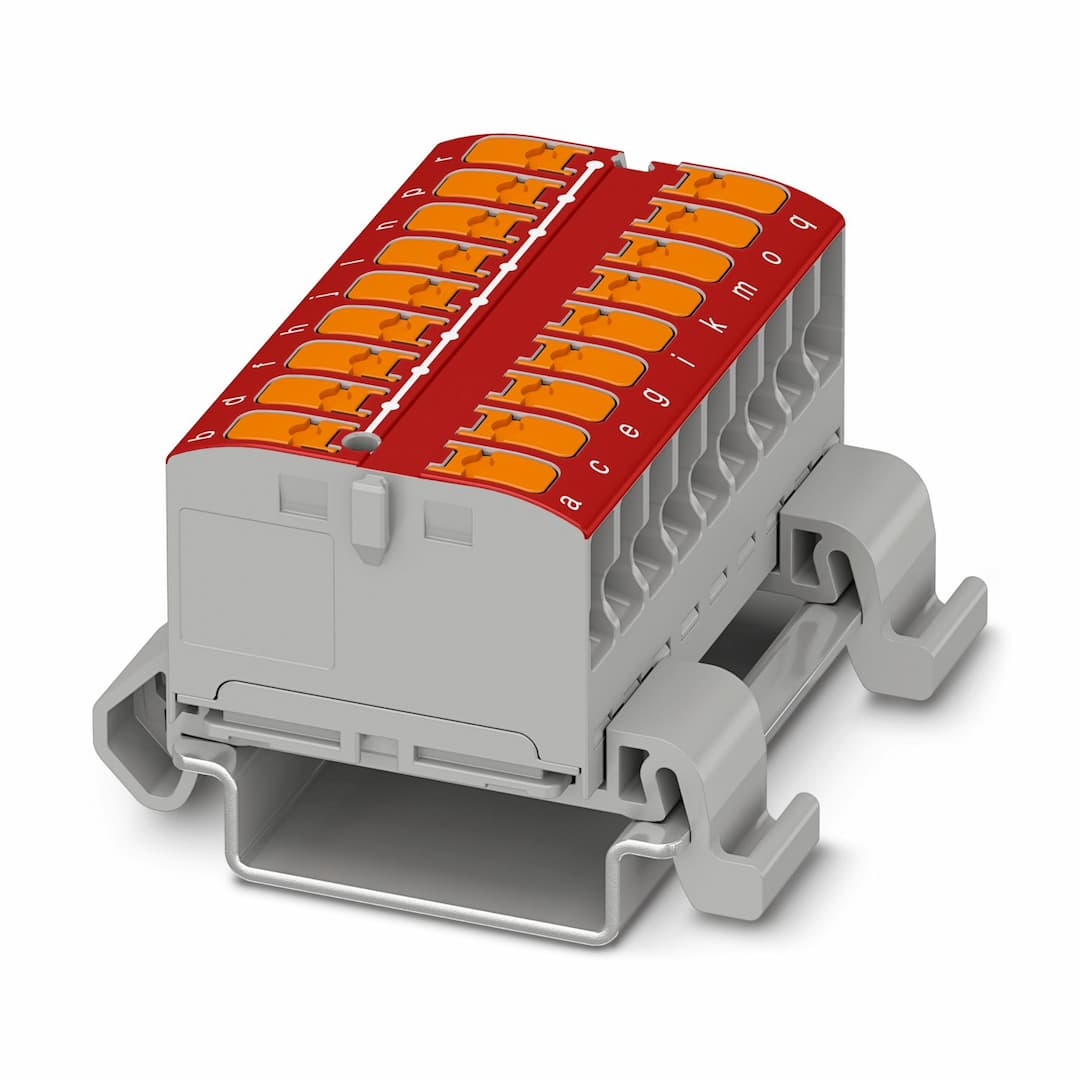

PTVFIX 18X2,5-NS35A RD
Key Features
- 1High Voltage Rating: 690V for reliable operation in demanding environments.
- 2Push-in Connections: Easy and secure connection method for quick installation.
- 3Compact Design: Transverse mounting saves up to 50% of DIN rail space.
- 4Flexible Mounting Options: Suitable for DIN rail, direct mounting, or adhesive mounting.
- 5Durable Construction: Built to withstand harsh conditions with a 2-year warranty.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Distributor terminal block | Number of positions | 1 |
| Number of connections | 18 | Number of rows | 1 |
| Potentials | 1 | Article revision | 02 |
| Overvoltage category | III | Degree of pollution | 3 |
| Rated surge voltage | 8 kV | Maximum power dissipation for nominal condition | 0.77 W |
| Number of connections per level | 18 | Nominal cross section | 2.5 mm² |
| Stripping length | 8 mm ... 10 mm | Internal cylindrical gage | A3
B3 |
| Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.14 mm² ... 4 mm² |
| Cross section AWG | 26 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.14 mm² ... 4 mm² |
| Conductor cross section, flexible [AWG] | 26 ... 12 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² | Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 1.5 mm² |
| Nominal current | 24 A | Maximum load current | 32 A (with 4 mm² conductor cross-section) |
| Maximum total current | The maximum load current of the individual terminal point must not be exceeded. | Nominal voltage | 690 V |
| Note | The IEC 60947-7-1 standard applies for the use of mounting accessories. | Nominal cross section | 2.5 mm² |
| Connection in acc. with standard | IEC 60998-2-2 | Nominal voltage | 450 V (in accordance with IEC 60998-2-2) |
| Conductor cross section rigid | 0.5 mm² ... 4 mm² | Conductor cross section, rigid [AWG] | 20 ... 12 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.75 mm² ... 2.5 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 2.5 mm² |
| Width | 46.6 mm | Height | 45.7 mm |
| Depth | 29.2 mm | Depth on NS 35/7,5 | 30.9 mm |
| Color | red (RAL 3001) | Flammability rating according to UL 94 | V0 |
| Insulating material group | I | Insulating material | PA |
| Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Open side panel | No |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Connection in acc. with standard | IEC 60947-7-1
IEC 60998-2-2 | Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
