Product Model

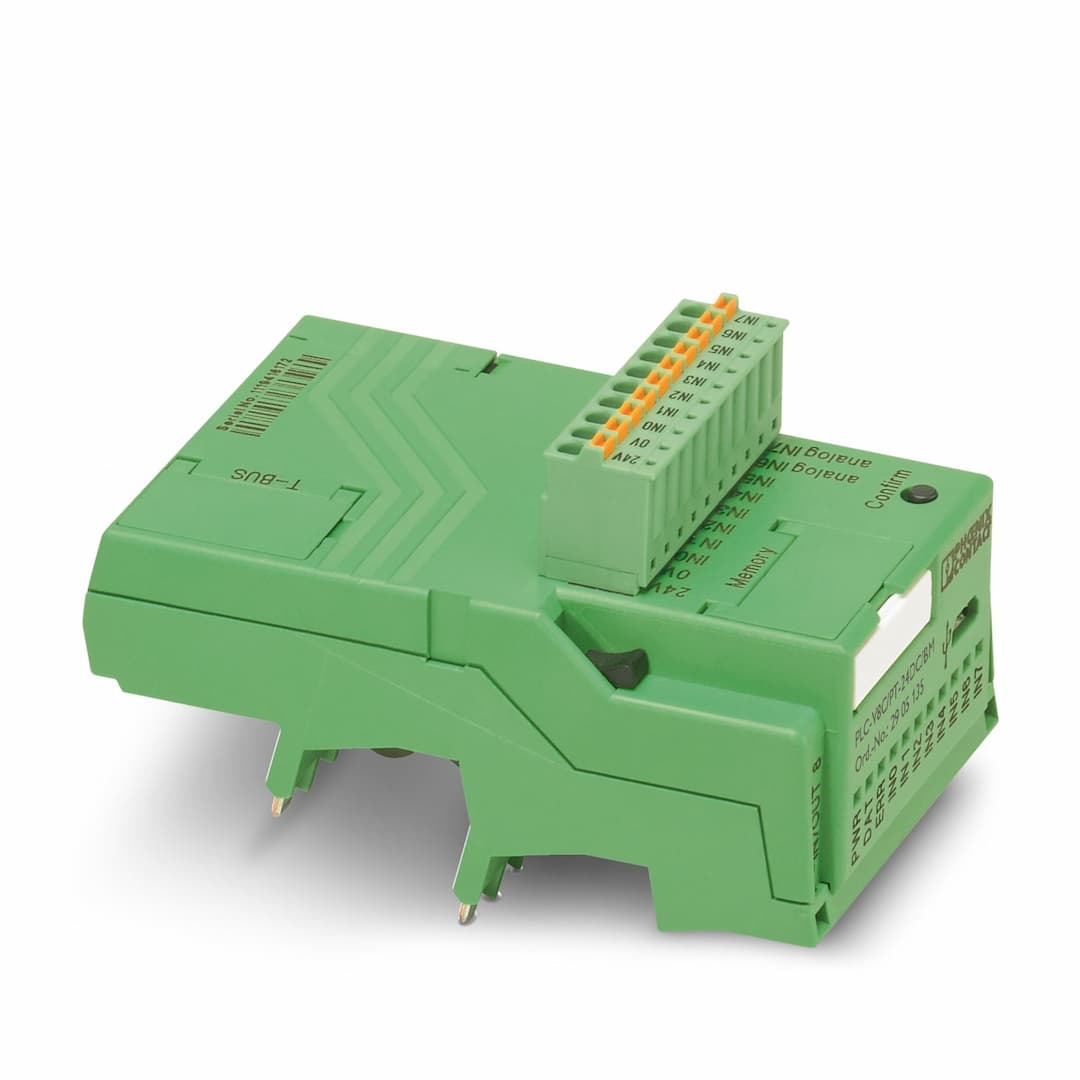

PLC-V8C/PT-24DC/BM
Key Features
- 116 I/Os with Plug-in Connection: Plug into 8 digital or analog PLC-INTERFACE terminal blocks for seamless integration.
- 2Real-Time Clock Accuracy: ±2 seconds/day for precise timing in industrial automation.
- 3Expandable to 48 I/Os: Extend your I/O capabilities to meet complex automation needs.
- 4Push-in Connection: Easy and secure connection method with a stripping length of 9 mm.
- 5Integrated Memory Module: Accommodate external memory modules for enhanced functionality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Product type | Base unit | Product family | PLC logic |
| Set comprises | 2905504 PLC-LOGIC-STARTERKIT1 | Operating mode | 100% operating factor |
| Article revision | 03 | Insulation | Basic insulation |
| Overvoltage category | III | Pollution degree | 2 |
| Rated insulation voltage | 50 V | Rated surge voltage | 0.8 kV |
| Realtime clock | yes | Buffer period | 24 h (Capacitor) |
| Accuracy realtime clock | ±2 s/d | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 26.4 V DC | Maximum input current at U | 120 mA |
| Protective circuit | Reverse polarity protection
Surge protection | Number of inputs | 8 (2 configurable as analog) |
| Description of the input | EN 61131-2, type 3 | Input voltage | 24 V DC |
| Signal level "0" signal | < 5 V | Signal level "1" signal | > 11 V |
| Input current "0" signal | < 1 mA | Input current "1" signal | 2.5 mA |
| Status display | LED (yellow) | Number of inputs | 2 (IN6 and IN7 are configurable as analog) |
| Input voltage range | 0 V ... 10 V | Input resistance | > 3.5 kΩ |
| Number of inputs | ≤ 8 | Description of the input | technical data depends on the PLC-INTERFACE terminal block used |
| Input voltage | 19 V DC | Typical current consumption | 4 mA |
| Input resistance | < 100 mΩ | Number of outputs | ≤ 8 |
| Nominal output voltage | 24 V DC | Nominal current | 9 mA |
| Connection method | Push-in connection | Stripping length | 9 mm |
| Number of connections | 1 | Number of positions | 10 |
| Note | Device supply and 8 x inputs | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.25 mm² ... 0.5 mm² (Ferrule with plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve) | Conductor cross section AWG | 26 ... 16 |
| Connection method | Micro USB type B | Number of connections | 1 |
| Connection method | Spring-cage connection | Stripping length | 6 mm |
| Number of connections | 1 | Number of positions | 3 |
| Conductor cross section rigid | 0.14 mm² ... 0.5 mm² | Conductor cross section flexible | 0.2 mm² ... 0.5 mm² |
| Conductor cross section AWG | 26 ... 20 | Connection method | Insulation displacement connection |
| Number of connections | 1 | Number of positions | 4 |
| Connection method | S-PORT (socket) | Number of connections | 1 |
| Number of positions | 12 | Note | For connecting the memory module |
| Status display | LED (green) | Width | 50 mm |
| Height | 48.5 mm
111 mm (with relay) | Depth | 82.5 mm
87 mm (with relay) |
| Color | green (RAL 6021) | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 45 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Max. permissible relative humidity (operation) | 95 % | Certificate | CE-compliant |
| Standards/regulations | DIN EN 50178 | Mounting type | Plug-in mounting |
| Assembly note | can be plugged onto 8 x PLC-INTERFACE terminal blocks | Mounting position | any |
Specifications may be subject to change without notice
