Product Model

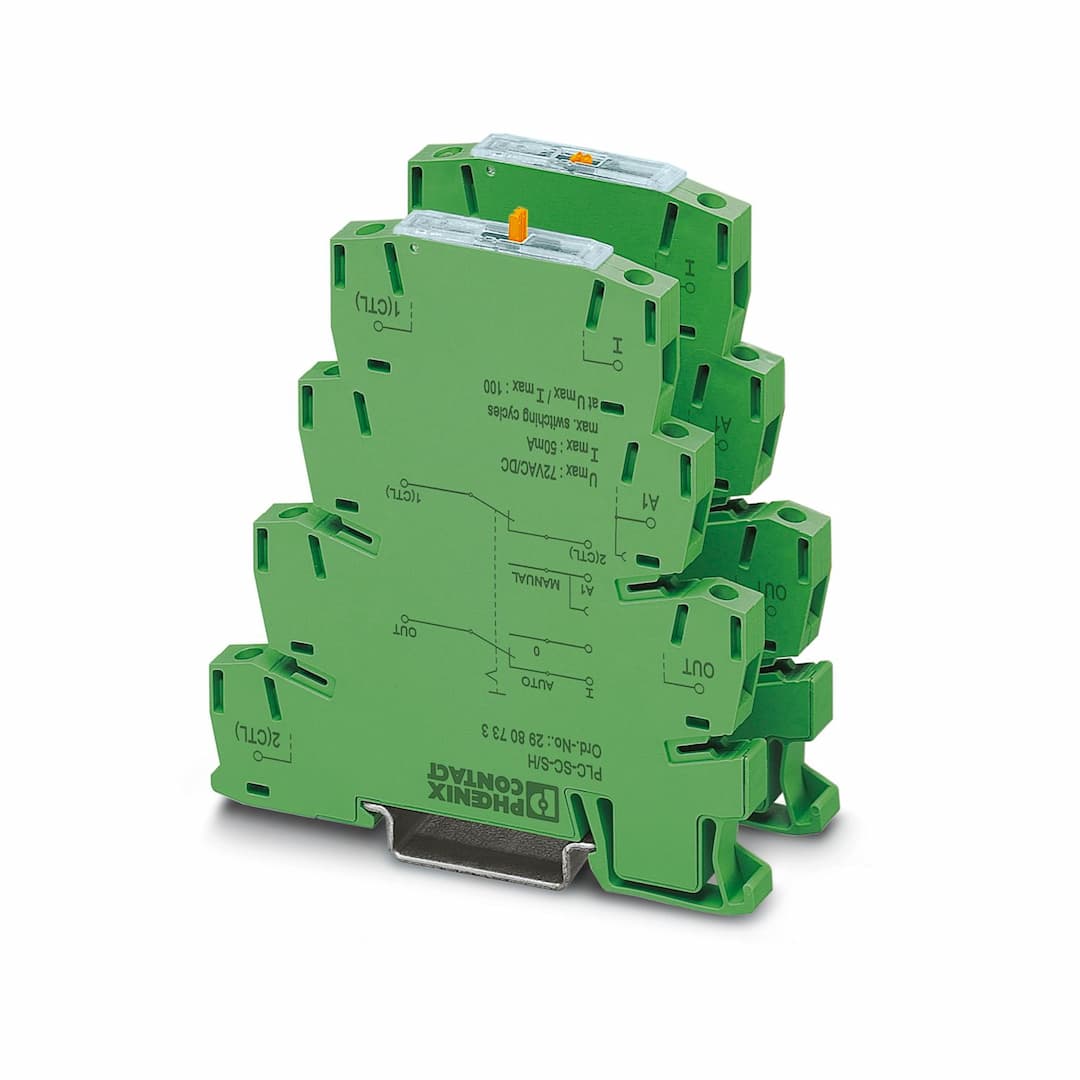

PLC-SP-S/H
Key Features
- 1Ensures continuous performance in industrial environments.
- 2Meets IEC 60664 and EN 50178 standards for safety and reliability.
- 3Compatible with a wide range of industrial control systems.
- 4Provides a single normally open contact for precise control signals.
- 5Simplifies installation and enhances connectivity options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Switch module | Product family | PLC-INTERFACE |
| Operating mode | 100% operating factor | Date of last data management | 24.05.2024 |
| Article revision | 08 | Insulation | Basic insulation |
| Overvoltage category | III | Pollution degree | 2 |
| Rated insulation voltage | 85 V AC | Rated surge voltage | 0.5 kV |
| Maximum switching voltage | 72 V DC | Minimum switching voltage | 2 V DC |
| Maximum inrush current | 50 mA | Min. switching current | 1 mA |
| Switching cycles, max. | 100 (At 72 V DC / 50 mA)
10000 (at 12 V DC / 100 mA) | Insulation resistance | 100 MΩ |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Width | 6.2 mm | Height | 80 mm |
| Depth | 90 mm | Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C | Standards/regulations | IEC 60664
EN 50178 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
