Product Model

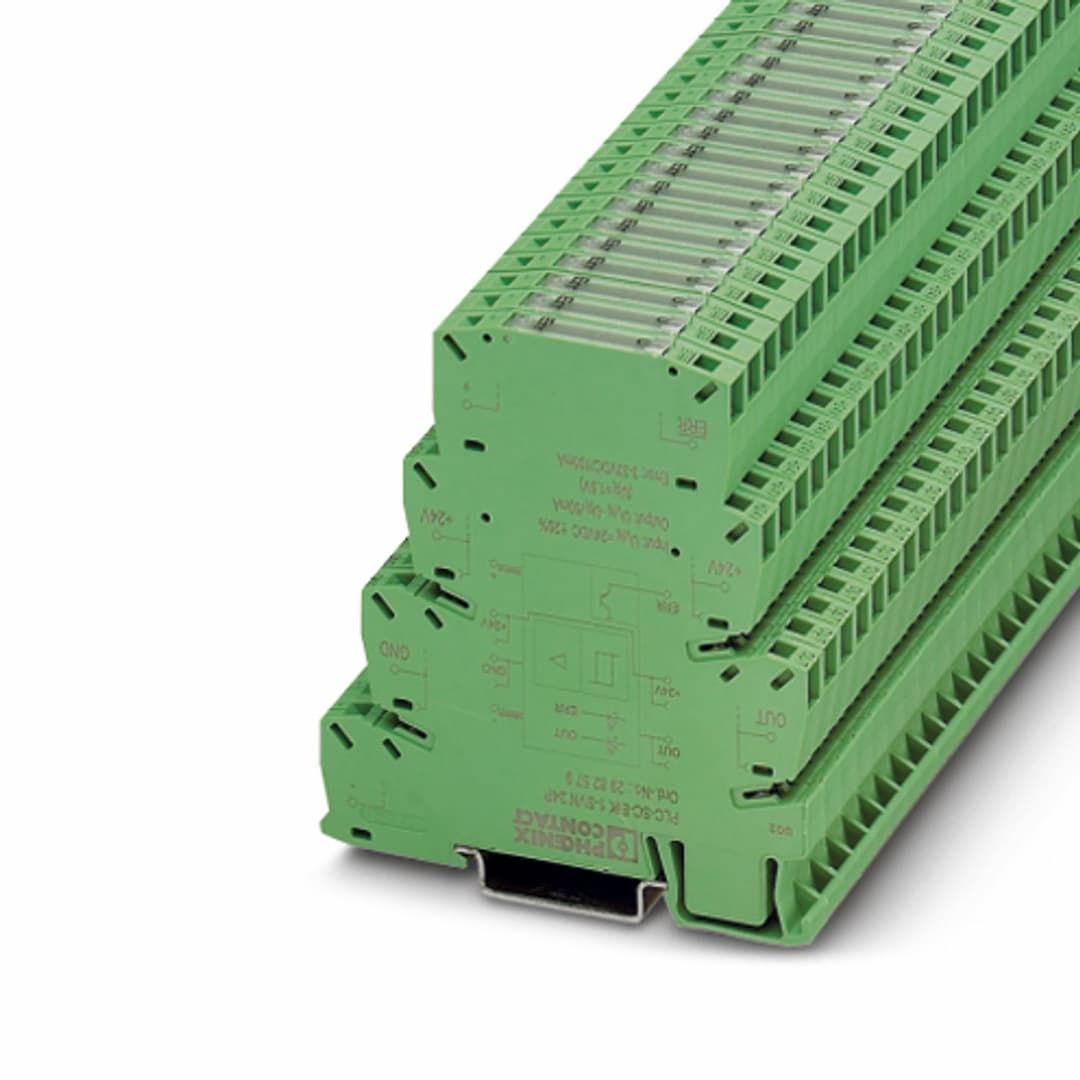

PLC-SP-EIK 1-SVN 24M
Key Features
- 124 V DC Input Voltage: Designed for NAMUR applications with a stable 24 V DC input.
- 250 mA Digital Output: Provides a reliable digital output of 50 mA for direct connection to programmable logic controllers.
- 3Spring-Cage Connection: Features a spring-cage connection for secure and efficient wiring.
- 4IP20 Protection: Ensures a high level of protection against environmental factors with an IP20 rating.
- 5Compact Dimensions: Measuring 6.2 mm wide, 80 mm high, and 86 mm deep, it fits seamlessly into DIN rail NS 35/7,5 mounting systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Solid-state relay module |
| Product family | PLC-INTERFACE | Application | NAMUR proximity sensors |
| Operating mode | 100% operating factor | Date of last data management | 13.10.2023 |
| Insulation | Basic insulation | Overvoltage category | I |
| Pollution degree | 2 | Rated insulation voltage | 50 V DC |
| Rated surge voltage | 0.4 kV | Nominal input voltage U | 8.2 V DC ±10 % |
| Protective circuit | Surge protection; Suppressor diode | Non-load voltage | 8.2 V DC ±10 % |
| Switching point | ≥ 2.1 mA (In conductive state)
≤ 1.2 mA (In blocking state)
6.3 mA ... 10 mA (in the event of a short-circuit)
0 mA ... 0.35 mA (In the event of a wire break) | Switching hysteresis | approx. 0.2 mA |
| Internal resistance | approx. 1000 Ω | Cable length | < 30 m |
| Designation | Signal output | Contact switching type | 1 N/O contact |
| Design of digital output | electronic | Output voltage range | 3 V DC ... 33 V DC |
| Limiting continuous current | 50 mA | Transmission frequency | approx. 350 Hz |
| Voltage drop at max. limiting continuous current | < 1.5 V | Status display | LED (green) |
| Error indication | Red LED | Protective circuit | Surge protection; Suppressor diode |
| Designation | Alarm output | Output nominal voltage | 30 V DC |
| Output voltage range | 3 V DC ... 33 V DC | Limiting continuous current | 100 mA |
| Voltage drop at max. limiting continuous current | < 1.5 V | Error indication | Red LED |
| Protective circuit | Surge protection; Suppressor diode | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
| Height | 80 mm | Depth | 86 mm |
| Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Standards/regulations | IEC 60664
EN 50178 |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
