Product Model

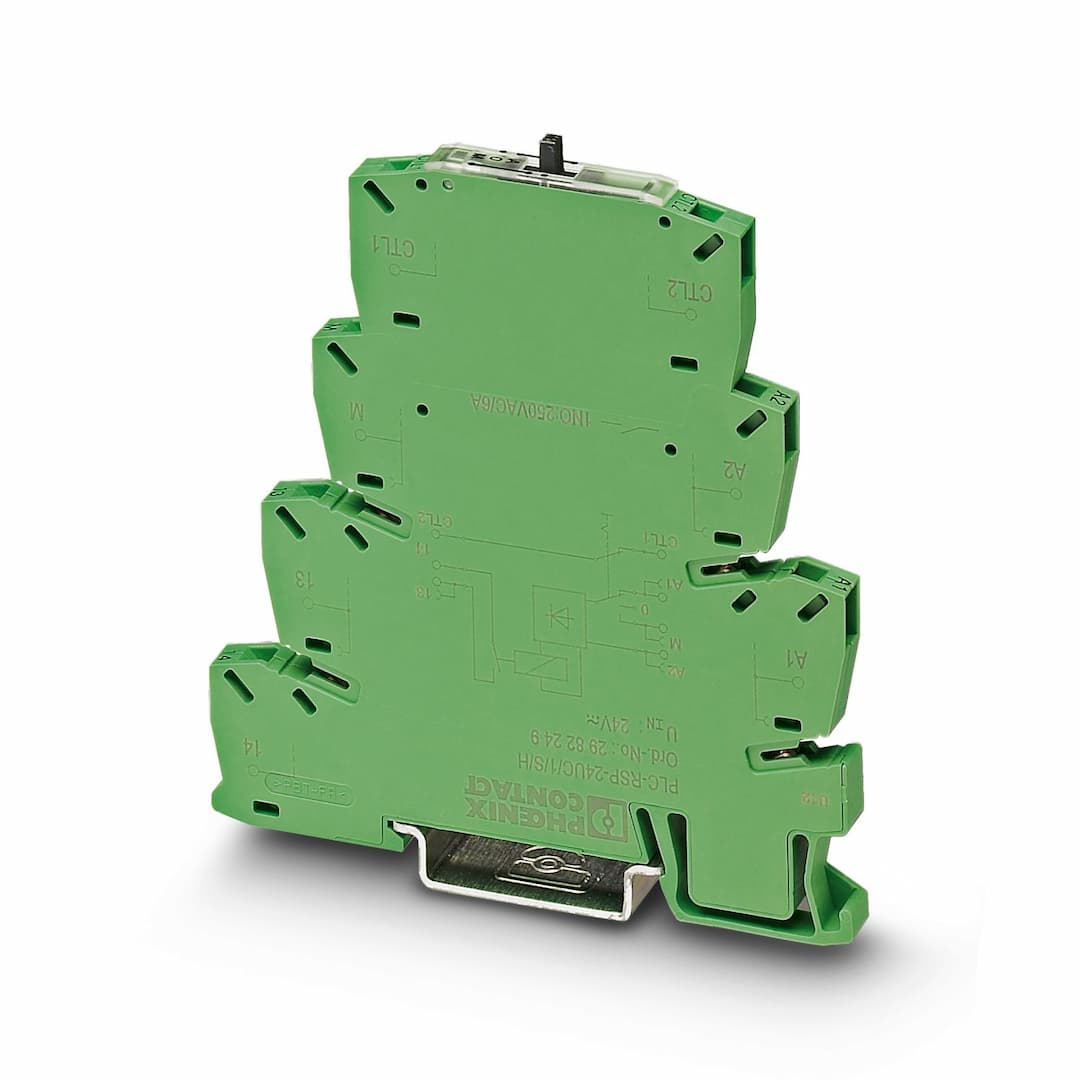

PLC-RSP- 24UC/ 1/S/L
Key Features
- 1Robust design for reliable operation in a wide temperature range (-20 °C to 60 °C).
- 2High current capacity with a limiting continuous current of 6 A.
- 3Versatile switching functions including "Manual", "Zero", and "Automatic" modes.
- 4Direct load switching capability for efficient control.
- 5Compatible with both AC and DC voltages up to 250 V.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay Module |
| Product family | PLC-INTERFACE | Application | Palm switch |
| Operating mode | 100% operating factor | Date of last data management | 24.05.2024 |
| Overvoltage category | III | Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 0.26 W | Rated insulation voltage | 250 V AC |
| Rated surge voltage | 6 kV | Nominal input voltage U | 24 V AC/DC |
| Input voltage range | 19.4 V AC/DC ... 33.6 V AC/DC | Input voltage range in reference to U | see diagram |
| Typical input current at U | 11 mA | Typical response time | 6 ms |
| Typical release time | 15 ms | Protective circuit | Bridge rectifier; Bridge rectifier |
| Operating voltage display | Yellow LED | Contact switching type | 1 N/O contact with switch |
| Type of switch contact | Single contact | Contact material | AgSnO |
| Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 5 V (at 100 mA) |
| Limiting continuous current | 6 A | Maximum inrush current | on request |
| Min. switching current | 10 mA (at 12 V) | Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Width | 6.2 mm | Height | 80 mm |
| Depth | 86 mm | Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 (Housing) | Degree of protection (Relay) | RT III (Relay) |
| Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 85 °C | Standards/regulations | IEC 60664
EN 50178 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
