Product Model

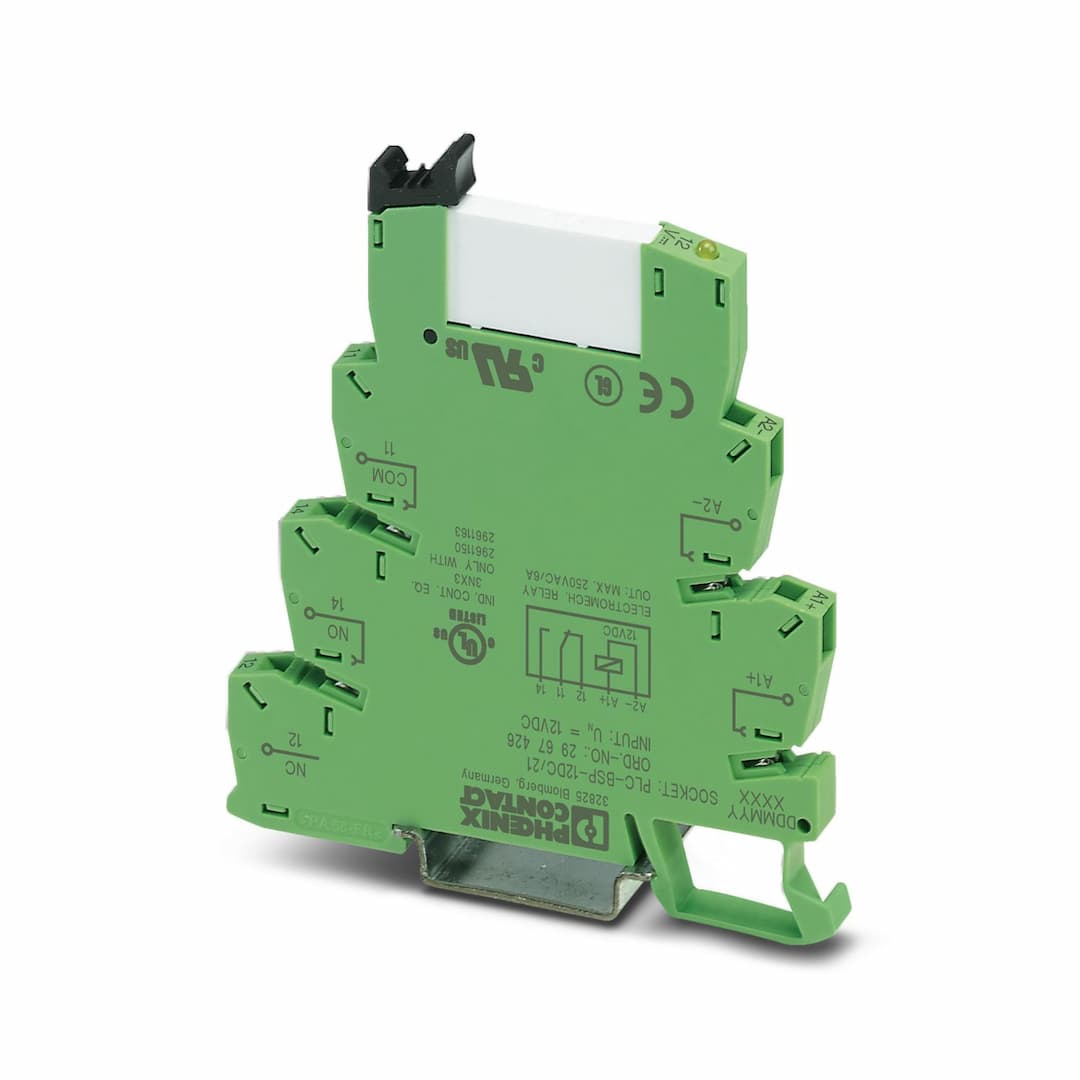

PLC-RSP- 12DC/21AU
Key Features
- 1Slim Design: Compact and space-efficient for easy integration into your system.
- 2Efficient Connection: Utilizes V8 adapter for seamless system cabling connections.
- 3RT III Sealed Relay: Ensures safe isolation between coil and contact sides.
- 4Integrated Circuits: Includes integrated input circuit and interference suppression circuit for optimal performance.
- 5High Reliability: Operates with a 100% operating factor and 2x 10^7 mechanical service life cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay Module | Product family | PLC-INTERFACE |
| Application | Universal | Operating mode | 100% operating factor |
| Mechanical service life | 2x 10 | Date of last data management | 10.10.2023 |
| Article revision | 05 | Overvoltage category | III |
| Pollution degree | 3 | Maximum power dissipation for nominal condition | 0.18 W |
| Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) | Nominal input voltage U | 12 V DC |
| Input voltage range | 9.7 V DC ... 16.8 V DC | Drive and function | monostable |
| Typical input current at U | 15.3 mA | Typical response time | 5 ms |
| Typical release time | 8 ms | Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode |
| Operating voltage display | Yellow LED | Contact switching type | 1 changeover contact |
| Type of switch contact | Single contact | Contact material | AgSnO, hard gold-plated |
| Maximum switching voltage | 30 V AC
36 V DC | Minimum switching voltage | 100 mV (at 10 mA) |
| Limiting continuous current | 50 mA | Maximum inrush current | 50 mA |
| Min. switching current | 1 mA (at 24 V) | Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) |
| Note | — | Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V (at 100 mA) | Limiting continuous current | 6 A |
| Min. switching current | 10 mA (at 12 V) | Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) |
| Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15) | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
| Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Standards/regulations | IEC 60664
IEC 60947-5-1 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
