Product Model

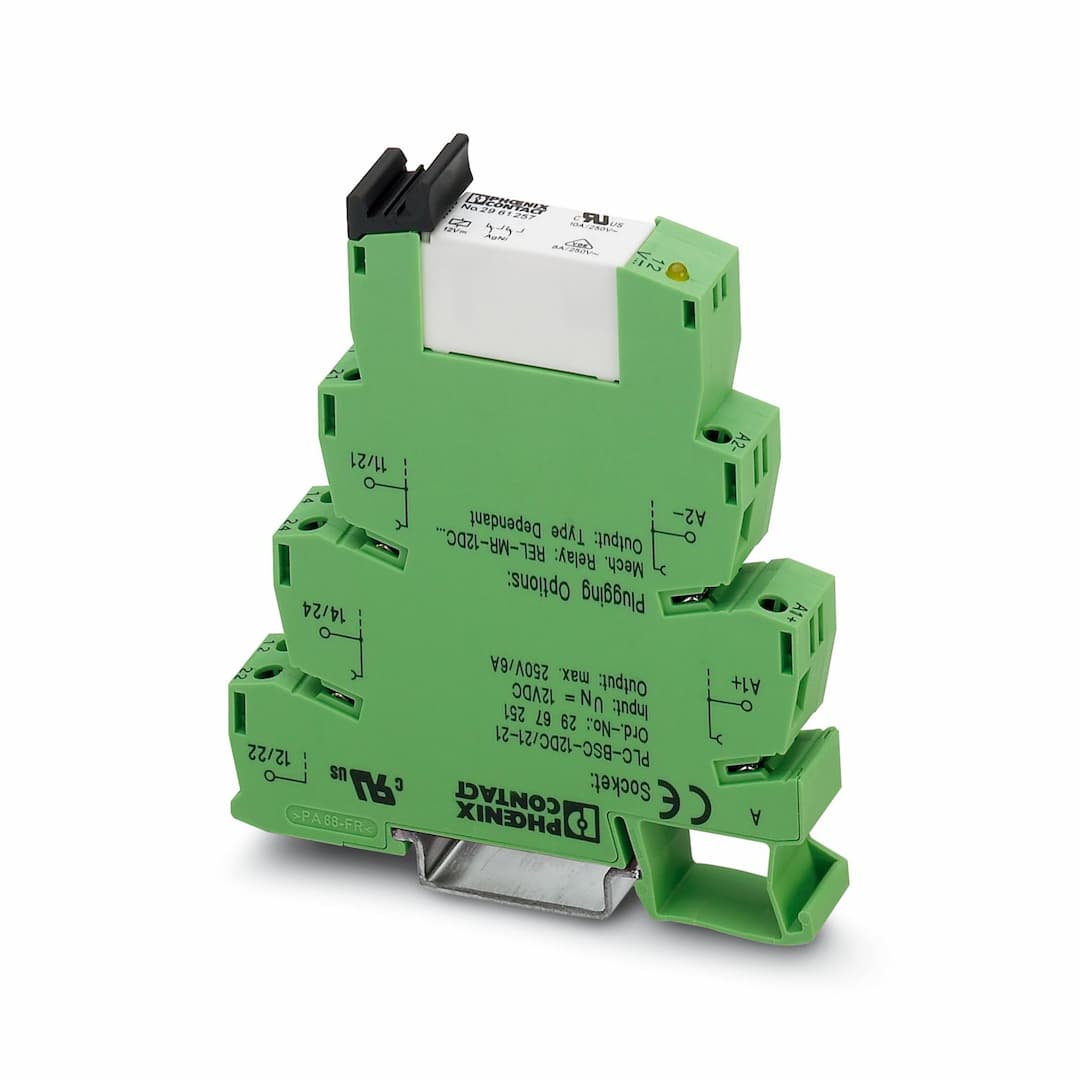

PLC-RSC-24DC/21-21/AEX
Key Features
- 1ATEX and IECEx Certified: Meets stringent safety standards for hazardous environments.
- 224V DC Input: Compatible with a wide range of industrial control systems.
- 32 PDT Contacts: Ensures reliable switching with high contact material quality.
- 4Robust EMC Compliance: Designed to minimize electromagnetic interference.
- 5Durable Construction: Built with AgNi contacts for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay Module | Application | Universal |
| Operating mode | 100% operating factor | Mechanical service life | 3x 10 |
| Date of last data management | 25.04.2023 | Overvoltage category | III |
| Pollution degree | 3 | Nominal input voltage U | 24 V DC |
| Typical input current at U | 18 mA | Typical response time | 8 ms |
| Typical release time | 10 ms | Protective circuit | Polarity protection diode
Freewheeling diode |
| Operating voltage display | Yellow LED | Contact switching type | 2 changeover contacts |
| Type of switch contact | Single contact | Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) | Limiting continuous current | 6 A |
| Connection method | Screw connection | Stripping length | 8 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
| Tightening torque | 0.6 Nm ... 0.8 Nm | Width | 14 mm |
| Height | 80 mm | Depth | 94 mm |
| Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Standards/regulations | IEC 60664
EN 50178 |
| Assembly note | in rows with zero spacing |
Specifications may be subject to change without notice
