Product Model

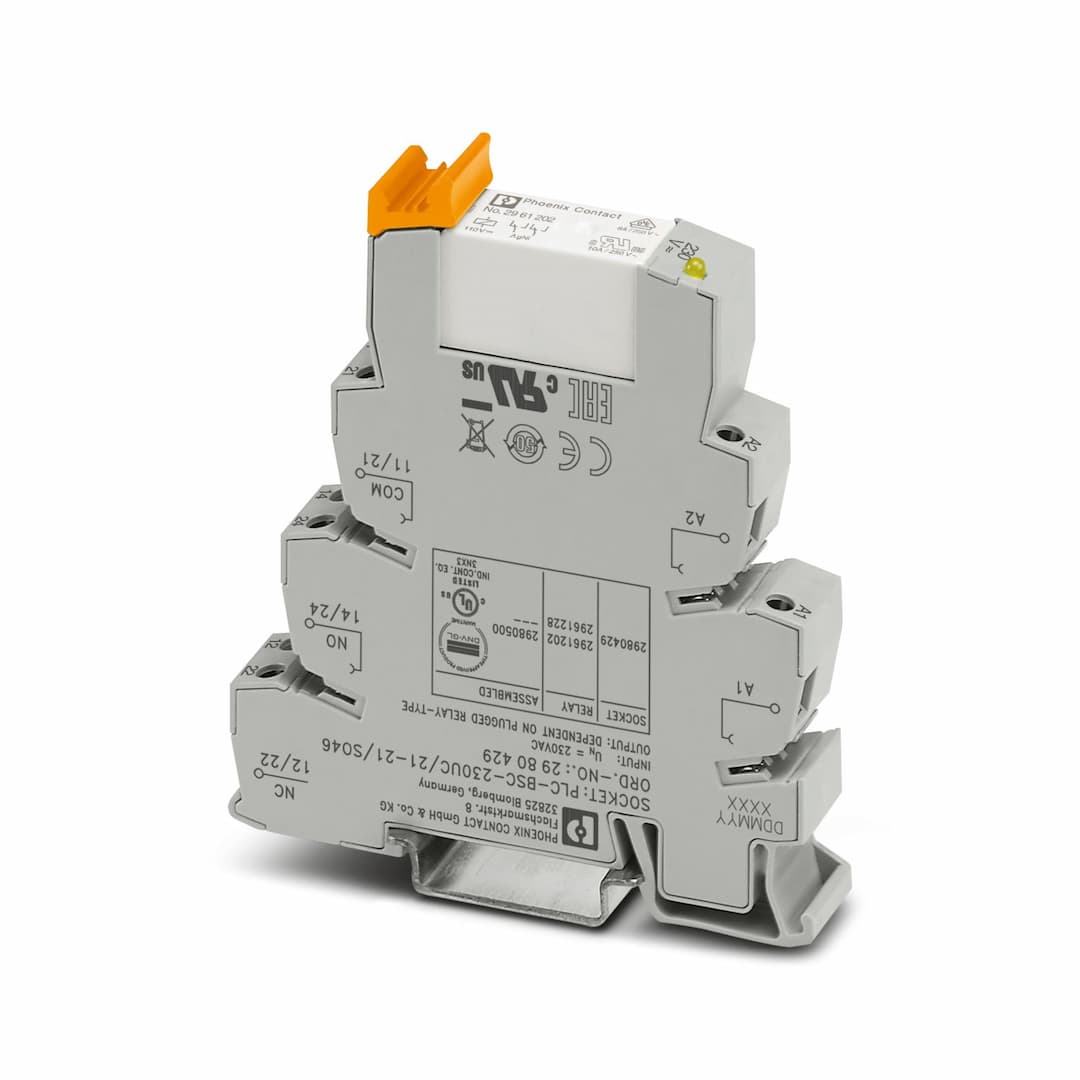

PLC-RSC-230UC/21-21/SO46
Key Features
- 1High Performance: 100% operating factor ensures reliable operation in demanding environments.
- 2Advanced Protection: Built-in protection against interference currents/voltages on the control side.
- 3Versatile Connectivity: Compatible with 230 V AC and 220 V DC, with screw connection and flexible conductor options.
- 4Durable Construction: Made with AgNi contact material, ensuring high switching capacity and long service life.
- 5Easy Installation: Compact design with a width of 14 mm, easy to integrate into DIN rail systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay Module | Product family | PLC-INTERFACE |
| Application | Filter to prevent interference | Operating mode | 100% operating factor |
| Mechanical service life | 3x 10 | Date of last data management | 08.08.2024 |
| Article revision | 10 | Insulation | Basic insulation |
| Overvoltage category | III | Pollution degree | 3 |
| Maximum power dissipation for nominal condition | 1.04 W | Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | 2.5 kV AC (50 Hz, 1 min., changeover contact/changeover contact) | Rated insulation voltage | 250 V AC |
| Rated surge voltage | 4 kV (Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths) | Nominal input voltage U | 230 V AC
220 V DC |
| Input voltage range | 179.4 V AC ... 264.5 V AC (20 °C)
171.6 V DC ... 253 V DC (20 °C) | Nominal voltage (plugged-in electromechanical relay) | 110 V DC |
| Mains frequency | 50/60 Hz | Drive and function | monostable |
| Drive (polarity) | polarized | Typical input current at U | 9 mA |
| Typical response time | 7 ms | Typical release time | 10 ms |
| Typical release voltage | 60 V AC/DC | Protective circuit | Bridge rectifier |
| Status display | LED (yellow) | Contact switching type | 2 changeover contacts |
| Type of switch contact | Single contact | Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 5 V (10 mA) |
| Limiting continuous current | 6 A | Maximum inrush current | 15 A (300 ms) |
| Min. switching current | 10 mA (5 V) | Interrupting rating (ohmic load) max. | 140 W (24 V DC)
85 W (48 V DC)
60 W (60 V DC)
44 W (110 V DC)
60 W (220 V DC)
1500 VA (250 V AC) |
| Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 250 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 250 V, AC15) | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
| Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
| Width | 14 mm | Height | 80 mm |
| Depth | 94 mm | Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 (Housing) | Degree of protection (Relay) | RT III (Relay) |
| Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -40 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
| Certificate | UKCA-compliant | Certificate | TAE0000196 |
| Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
| Humidity | A | Vibration | B/C |
| EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
| Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
