Product Model

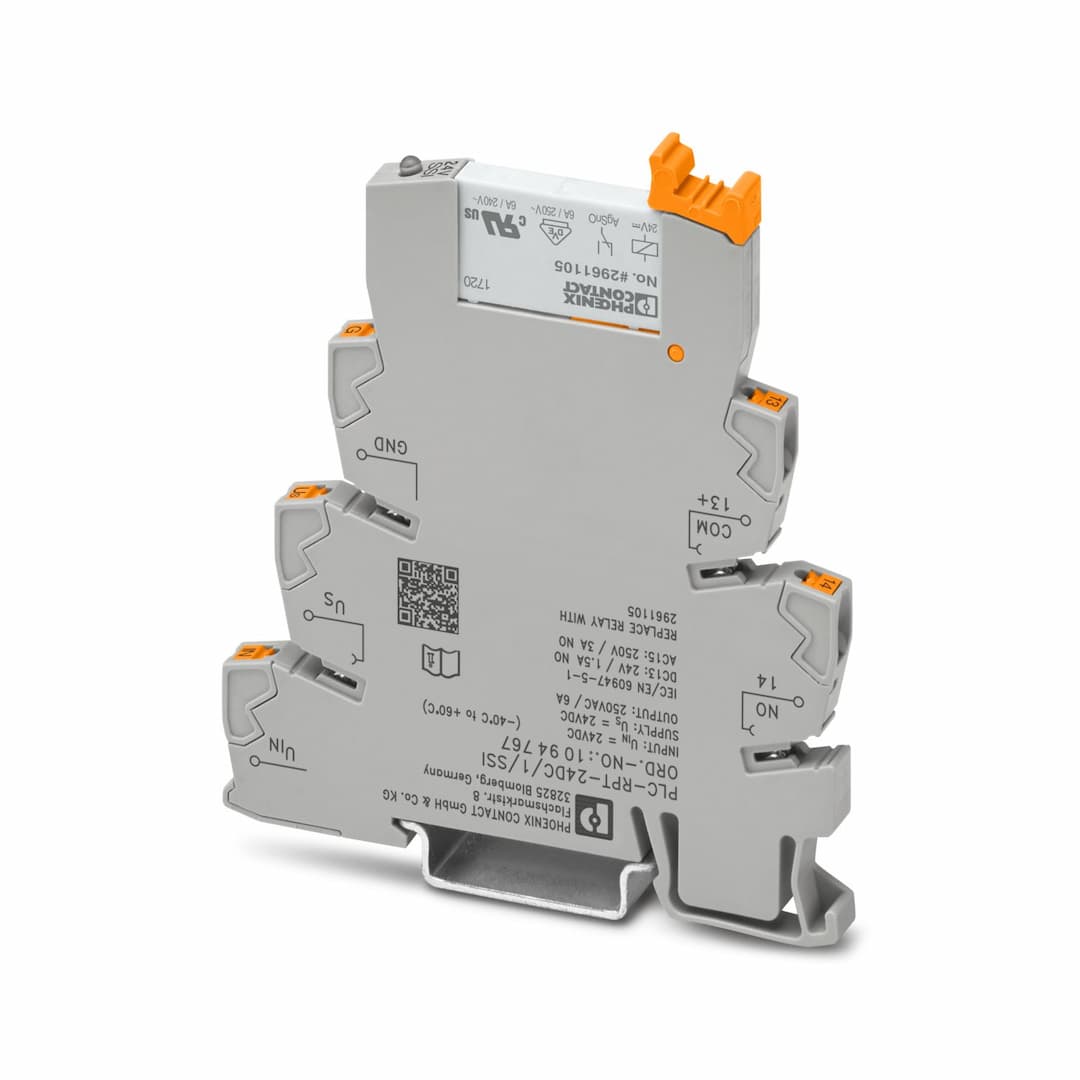

PLC-RPT-24DC/1/SSI
Key Features
- 124 VAC/DC Input Compatibility: Compatible with both AC and DC voltages, ensuring flexibility in your industrial automation setup.
- 2DIN Rail Mounting: Easy installation on DIN rail systems, saving space and enhancing system organization.
- 3Timed Relay Functionality: Precise timing capabilities for controlled operations in various industrial applications.
- 4Push-in Connection: Quick and secure connections with push-in terminals, reducing setup time and increasing reliability.
- 5High Reliability: Built with high-quality components, ensuring consistent performance and long-lasting operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay Module | Product family | PLC-INTERFACE |
| Application | weak signal sources | Operating mode | 100% operating factor |
| Mechanical service life | 2x 10 | Date of last data management | 30.10.2024 |
| Article revision | 02 | Maximum power dissipation for nominal condition | 0.2 W |
| Rated insulation voltage | 250 V | Rated impulse withstand voltage | 6 kV |
| Overvoltage category | III | Degree of pollution | 3 |
| Nominal supply voltage | 24 V DC (Us) | Voltage range with reference to U | 0.8 ... 1.2 |
| Input current | 9 mA | Nominal input voltage U | 24 V DC |
| Input voltage range | 19.2 V DC ... 28.8 V DC | Nominal voltage (plugged-in electromechanical relay) | 24 V DC |
| Drive and function | monostable | Drive (polarity) | polarized |
| Typical input current at U | 1 mA | Typical response time | 5 ms |
| Typical release time | 7 ms | Protective circuit | Surge protection |
| Operating voltage display | Yellow LED | Contact switching type | 1 N/O contact |
| Type of switch contact | Single contact | Contact connection type | Power contact |
| Contact material | AgSnO | Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 12 V AC/DC | Limiting continuous current | 6 A |
| Maximum inrush current | 10 A (4 s) | Min. switching current | 10 mA |
| Short-circuit current | 200 A (conditional short-circuit current) | Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) |
| Switching capacity min. | 120 mW | Output fuse | 4 A gL/gG NEOZED |
| Connection method | Push-in connection | Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
| Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | gray (RAL 7042) | Degree of protection (Relay base) | IP20 (Relay base) |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) | Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
| Certificate | CE-compliant | Certificate | UKCA-compliant |
| Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Temperature | D | Humidity | A |
| Vibration | B/C | EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
| Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60947-5-1 |
Specifications may be subject to change without notice
