Product Model

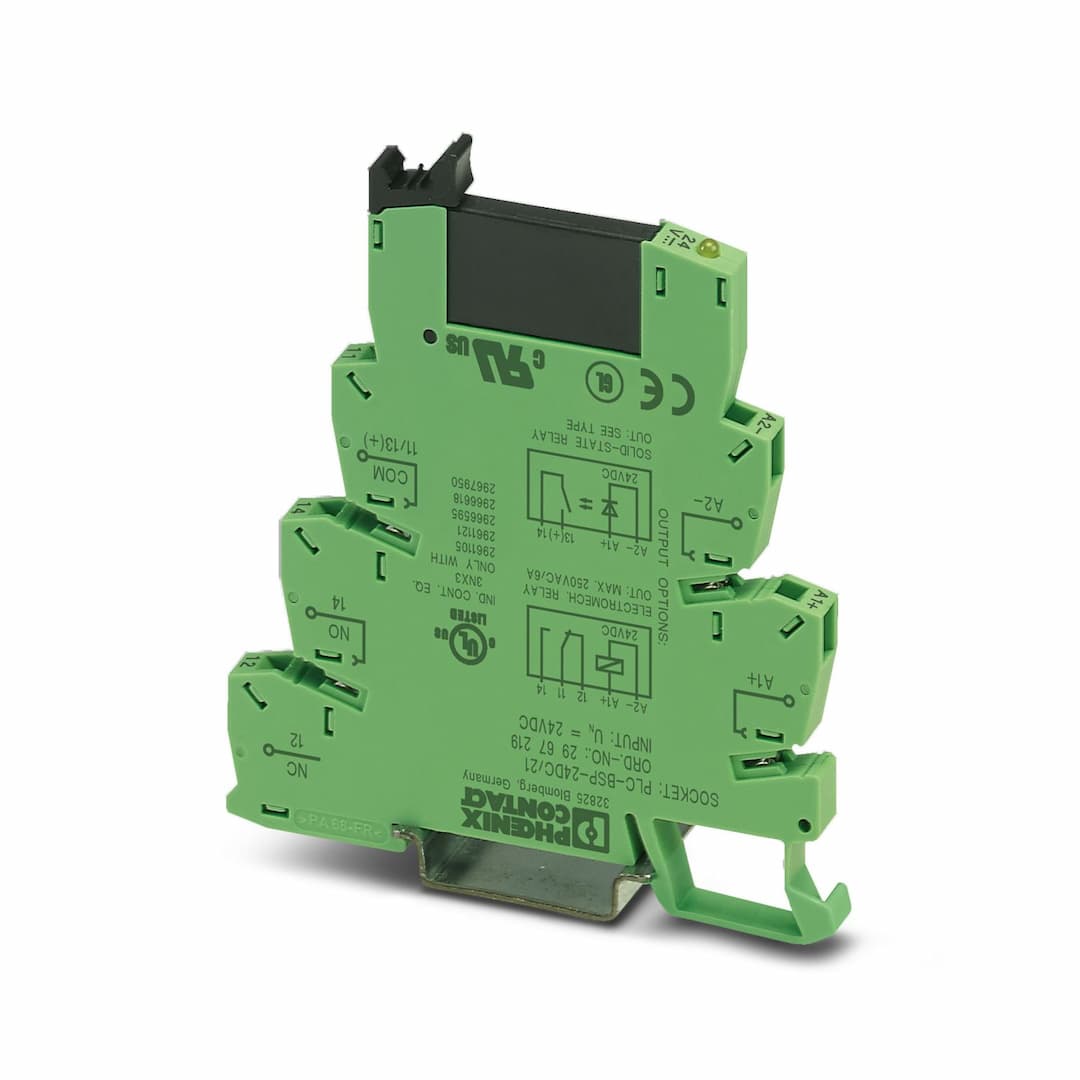

PLC-OSP- 24DC/230AC/ 1
Key Features
- 1Slim and compact design for easy integration into DIN rail systems.
- 2Integrated input circuit and zero voltage switch at AC output ensure high switching power.
- 3100% operating factor with reverse polarity protection and free-wheeling diode.
- 4Screw connection with stripping length of 8 mm and conductor cross section of 0.14 mm² to 2.5 mm².
- 5Meets IEC 60664 and EN 50178 standards with basic insulation and overvoltage category III.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | Universal | Operating mode | 100% operating factor |
| Date of last data management | 25.04.2023 | Article revision | 04 |
| Insulation | Basic insulation | Overvoltage category | III |
| Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.19 W |
| Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Nominal input voltage U | 24 V DC |
| Input voltage range in reference to U | 0.8 ... 1.2 | Input voltage range | 19.2 V DC ... 28.8 V DC |
| Switching threshold "0" signal in reference to U | ≤ 0.25 | Switching threshold "1" signal in reference to U | ≥ 0.8 |
| Typical input current at U | 8 mA | Typical response time | 10 ms (at U |
| Typical turn-off time | 10 ms (at U | Operating voltage display | Yellow LED |
| Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode | Transmission frequency | 10 Hz |
| Contact switching type | 1 N/O contact | Design of digital output | electronic |
| Output voltage range | 24 V AC ... 253 V AC | Limiting continuous current | 0.75 A (see derating curve) |
| Maximum inrush current | 30 A (10 ms) | Min. load current | 10 mA |
| Leakage current | < 1 mA (in off state) | Phase angle cos phi min | 0.5 |
| Max. load value | 4.5 A | Voltage drop at max. limiting continuous current | < 1 V |
| Output circuit | 2-conductor, floating | Protective circuit | RCV circuit |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Width | 6.2 mm | Height | 80 mm |
| Depth | 94 mm | Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C | Standards/regulations | IEC 60664
EN 50178 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
